PRODUCTS SPECIFICATION:


FEATURES:

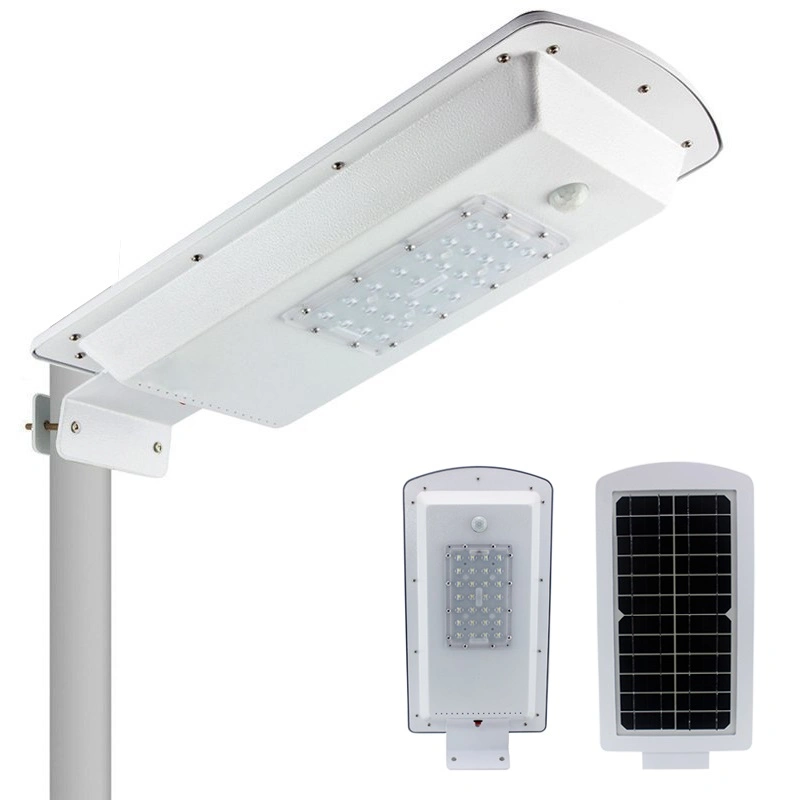

• Easy installations, no electrical bills: solar powered led street light, can be mounted on wall or pole, that in direct sunlight for charging.
• Motion and light sensor built in:solar street light goes on at dusk at 50% brightness. Can go from 50% power to full brightness when motion is detected. Three Intelligent Modes: Bright / DIM / Recharge. 1.Bright: motion activates for lighting when motion is detected for security light and to save battery; 2.DIM: 50% lighting for saving power when no motion; 3.Off/Recharge: automatically turns off in daylight and goes into recharge mode.

                   Solar Street Light Controller                                                   Lithium Battery

Infrared body sensor , Microwave induction
With infrared body induction controlled technology, it can store energy during the daylight,

when people pass through at night it auto modulate on/off.

During the night, the light can work automatically controlled by the smart sensor;
when people pass throught and on energy-saving mode, It will be on bright mode.

(working mode can be adjusted according to client's demands).




ABOUT SOLAR LIGHT:
Integrated solar LED street light cannot work without sunshine charging, please select the suitable product model according to the local sunshine radiation and the annual total radiation.

Integrated solar LED street light adopts the long life Lithium battery for storing energy,charging temperature at daytime is between: 0°C~+65°C, when temperature goes lower than 0°C, the control system will stop automatically to protect the battery, and it will revive to charge the battery while temperature goes higher than 0°C. Discharging temperature at night is between: -20°C~+65°C, any ambient beyond will bring damage to the battery. Please confirm your local extreme temperature is suitable for above while selecting the street light.

Battery of the "integrated solar LED street light" can be stored for 6 months long after full charged, and please examine, charge it periodically after long time transportation to prevent damage.

While installed in Northern Hemisphere, please make sure the surface of the solar panel to be facing the South to collect maximum sunshine radiation, while installed in Southern Hemisphere, please make sure the surface of the solar panel to be facing the North to collect maximum sunshine radiation. At the same tie please keep it away from any shadow of house, trees etc.

Keep cleaning the surface of the integrated solar LED street light with normal detergent to get maximum power generation, clean the dust or tree leaves or any grease.
