Anodized Single Sost Pile ground solar mounting Structure

Product Information

SF Pile  Solar Ground Mounting System is applied to large commercial solar plant for public utilities. This is a single column mounted system which is suitable for both frame and frameless modules. The infrastructure of concrete foundation increases the grip and wind resistance.In order to save the installation time and cost at site,the main components of this system is afolded structure(about 40% pre-assembled at factory).

Technical Details
Installation siteOpen field Pile-Ground Mounting System
Max wind speedUp to 60M/S
Snow load1.4KN/m2
Applicable ModuleFramed or Frame less
Array LayoutAccording to the actual situation
Module OrientationLandscape,Portrait
Rail MaterialAnodized aluminum
Post MaterialHot-dip galvanized steel
Pipe Length1000-2000mm
StandardGB50021-2001
GB50007-2002
GB500011-2001
DurationMore than 20years
Pile driving depth1000-2000mm
Warranty10 years warranty

Features
1.Concise and professional design allows low usage of materials which makes it ti be the most economical pne among piling structure.
2.Wide adaptability of modules arrangement(2-row in vertical and 3-row in horizontal configuration) to fit for size of land.
3.four steps complete the installation work( 1.Piling. 2.Install folded structure. 3.Install rail. 4.Fix module)
4.10-years warranty and 20years of service life provided

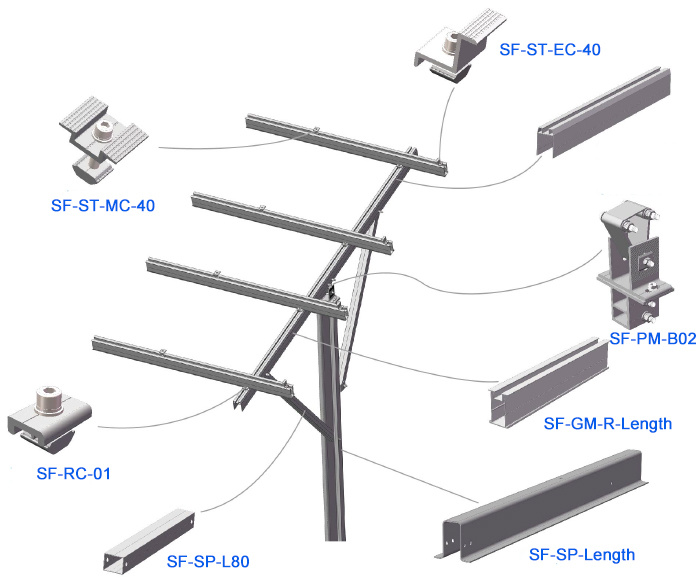

Project Detail
Pile Ground Mounting Bracket, Ground Mounting Structure

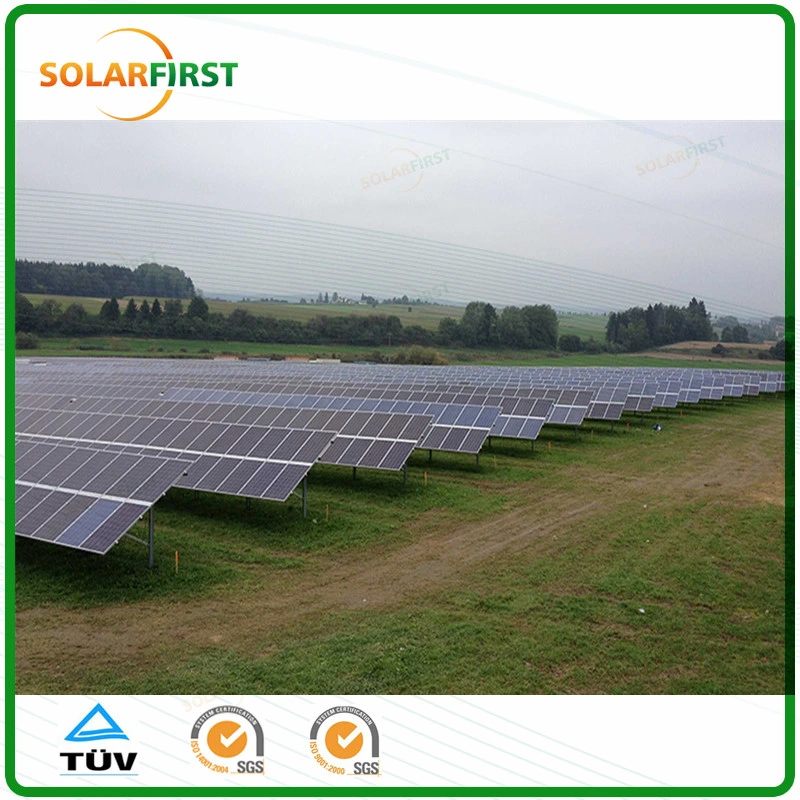

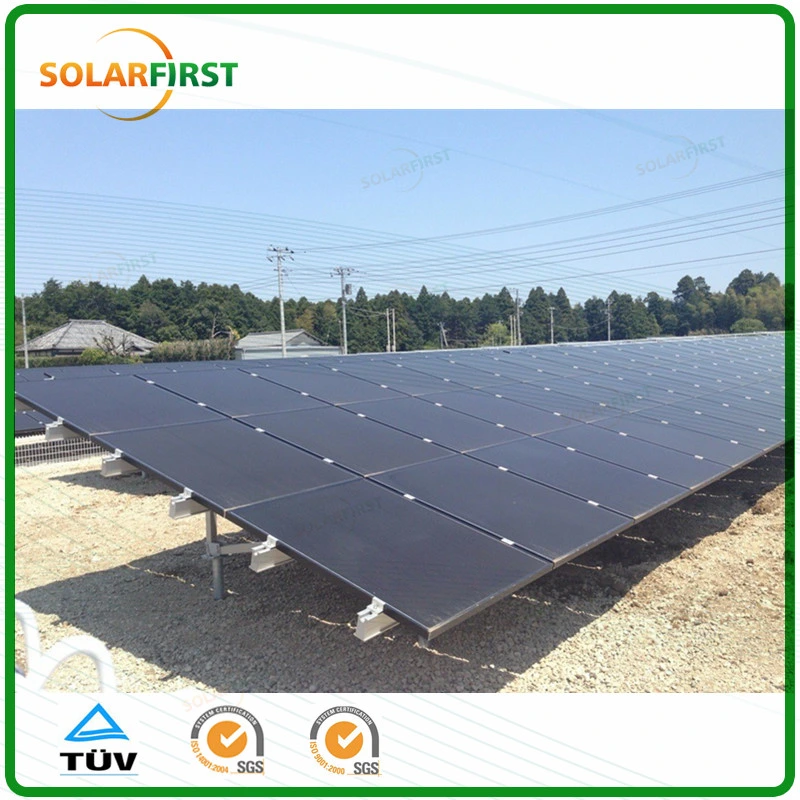

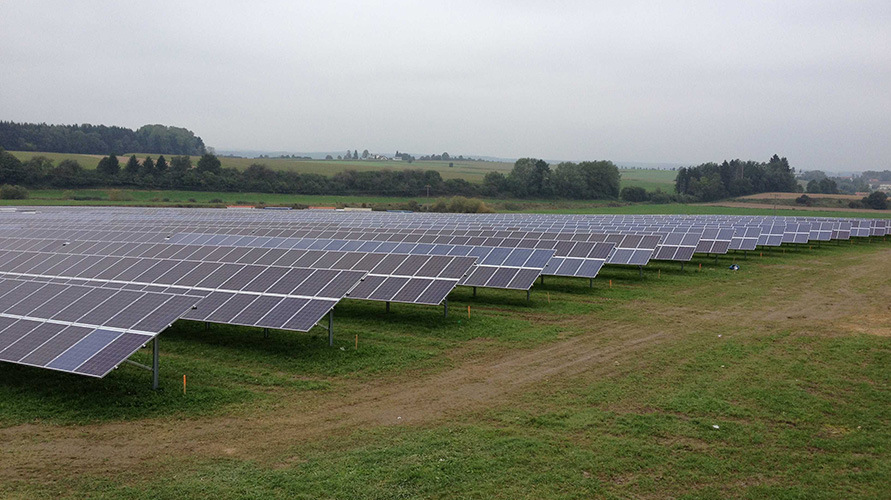

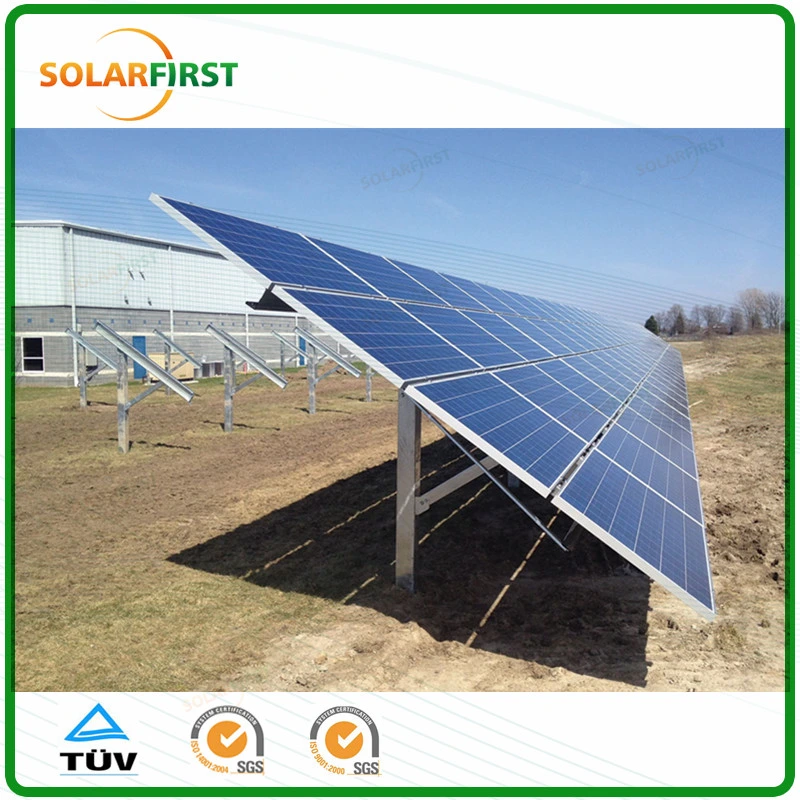

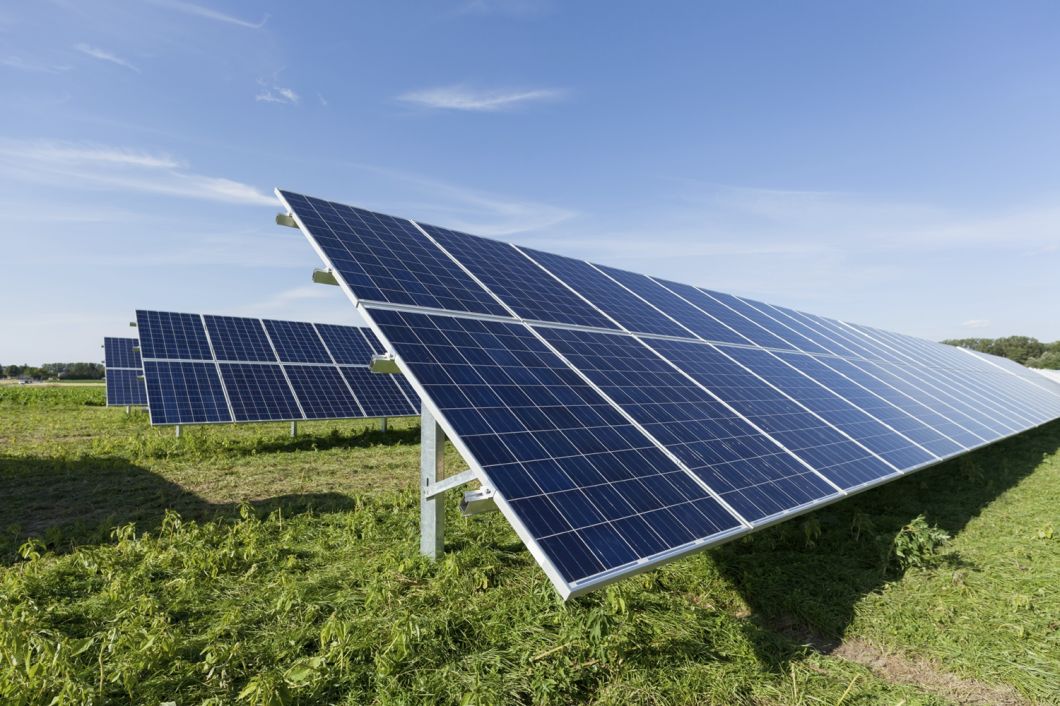

Project Show

Pile Ground Mounting Bracket, Ground Mounting Structure

Pile Ground Mounting Bracket, Ground Mounting Structure
