Round Steel Pipe Outer/External Wall Shot Blasting Cleaning Machine1. Specification:TypeCleaning size (mm)Cleaning speed (m/min)PurposeQGW10050-3002-10Outer wall of shot blasting machineQGW720159-7202-6QGW1200219-10161-6QGW1500325-16001-6QGW28001016-28001-2QGN10050-3001-4Inner wall of shot blasting machineQGN700325-7201-2QGN1000

Featured Products

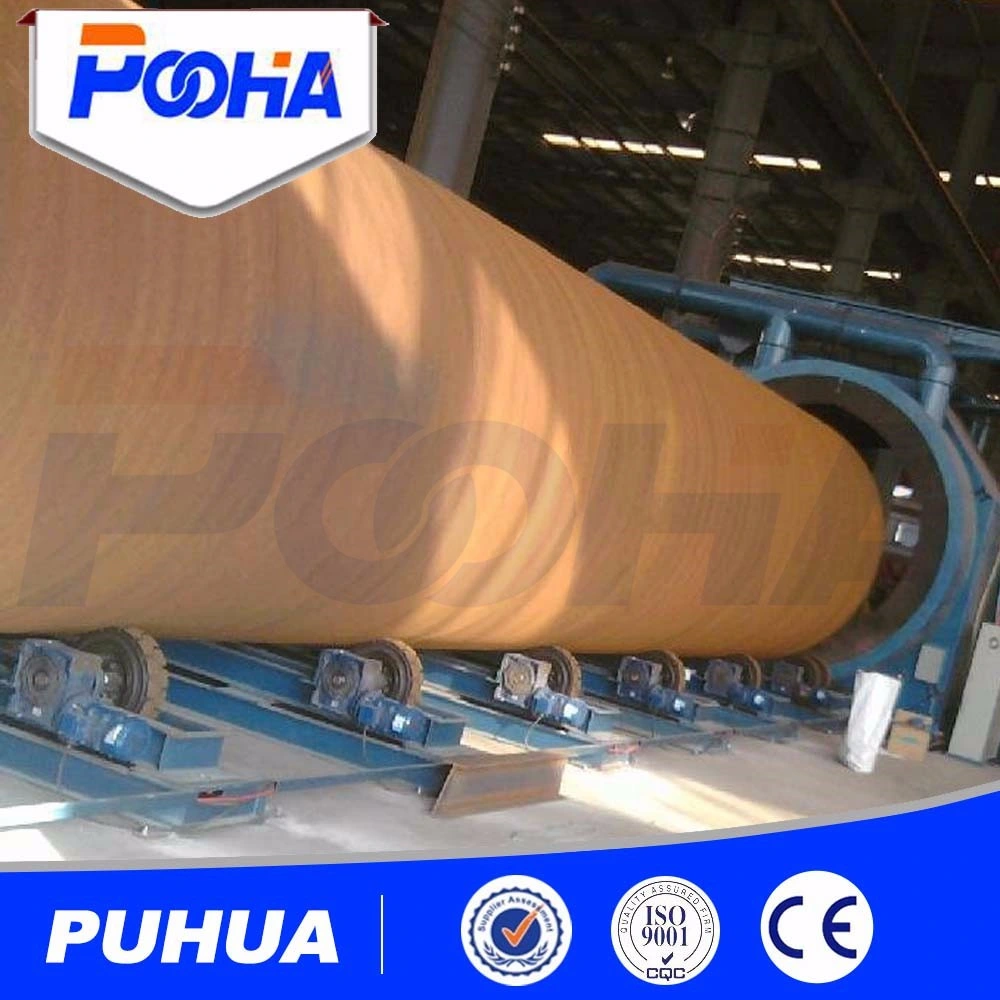

Round Steel Pipe Outer/External Wall Shot Blasting Cleaning Machine

Round Steel Pipe Outer/External Wall Shot Blasting Cleaning Machine

1. Specification:
TypeCleaning size (mm)Cleaning speed (m/min)Purpose
QGW10050-3002-10Outer wall of shot blasting machine
QGN10050-3001-4Inner wall of shot blasting machine

2. Production description:

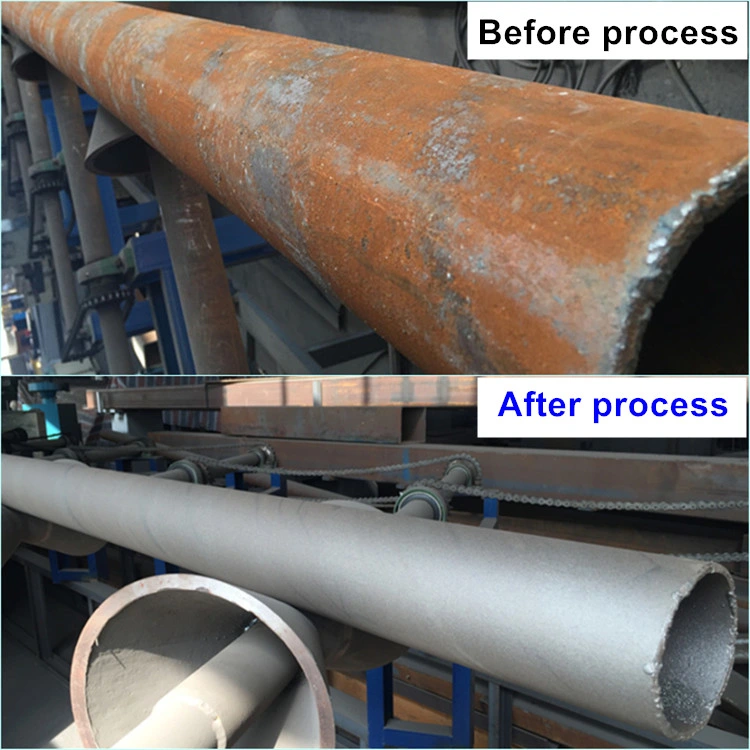

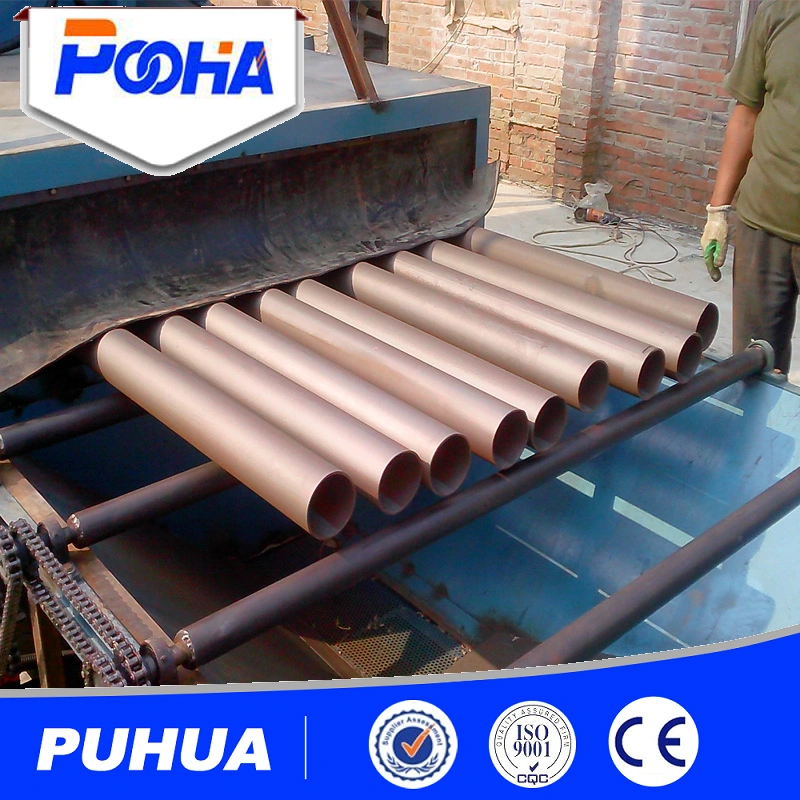

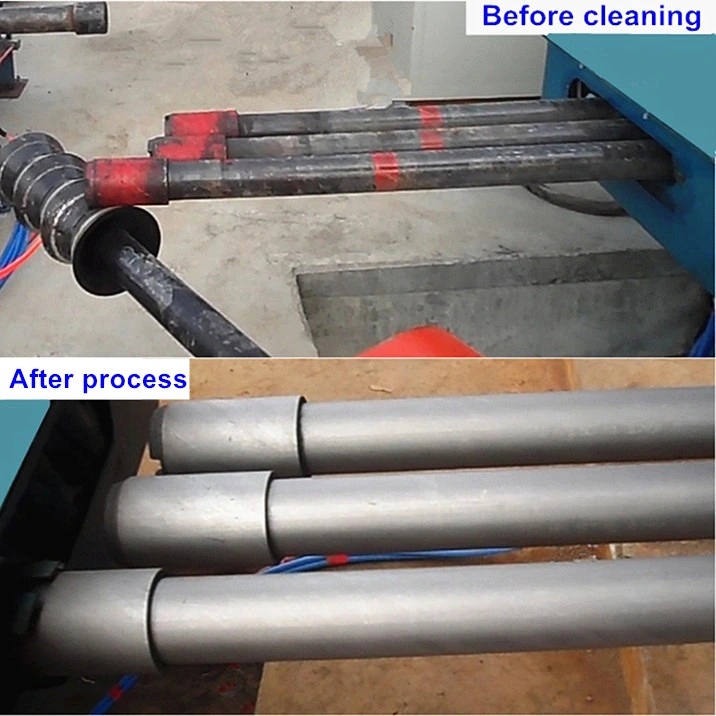

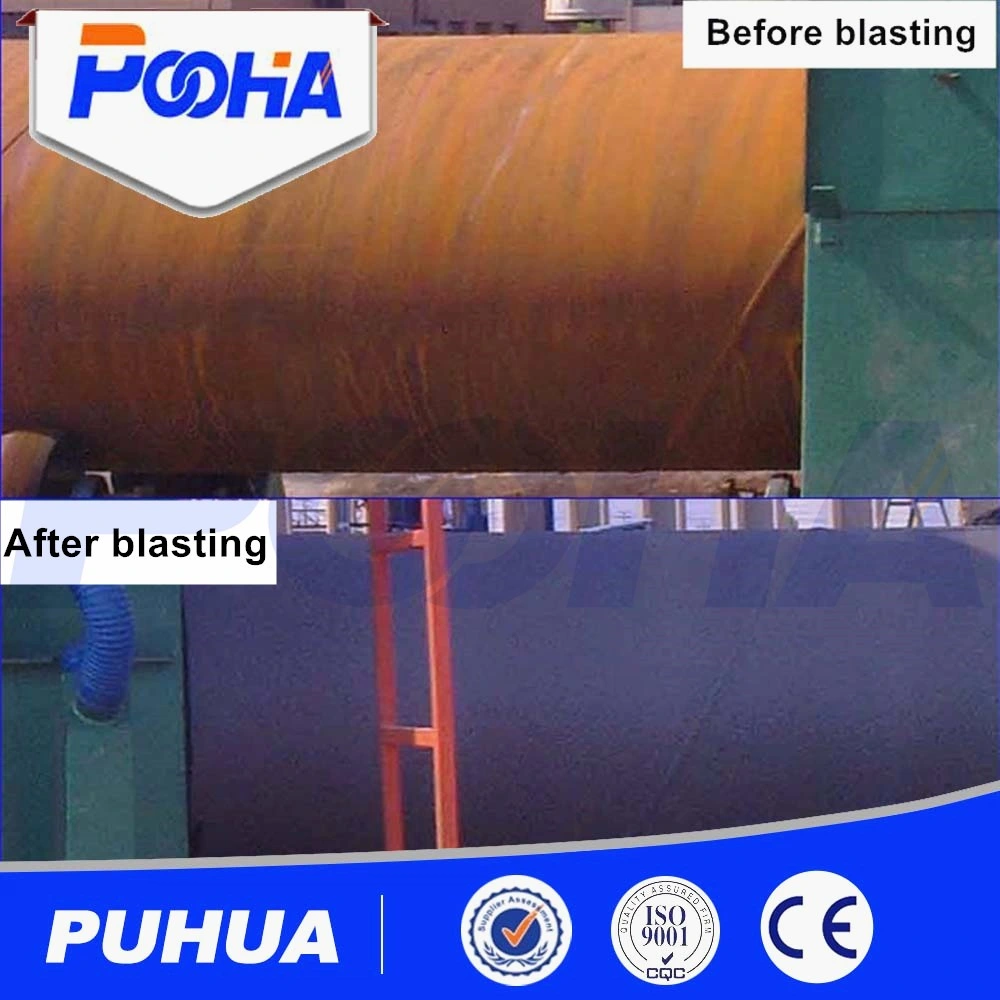

1). This machine is applicable to  the steel tube and pipe products to deal with internal and external surface, remove the oxide welding slag, and other miscellaneous items, showing a metallic luster.
2). Eliminate inner stress, enhance workpiece's fatigue resistance, to improve the anti-fatigue properties of the workpiece.
3). The workpiece to increase the film adhesion when painting, and ultimately to improve the quality of surface and internal purpose.
4). Shot at the same time agencies to work with targeted supplementary clean-up, completely clean purpose.

Use: This series cleaning machine (QGW) is applicable to various diameters steel tube suface cleaning, widely used in petrochemical engineering, steel, district heating, water and so on.

Round Steel Pipe Outer/External Wall Shot Blasting Cleaning Machine

3. Structural characteristice

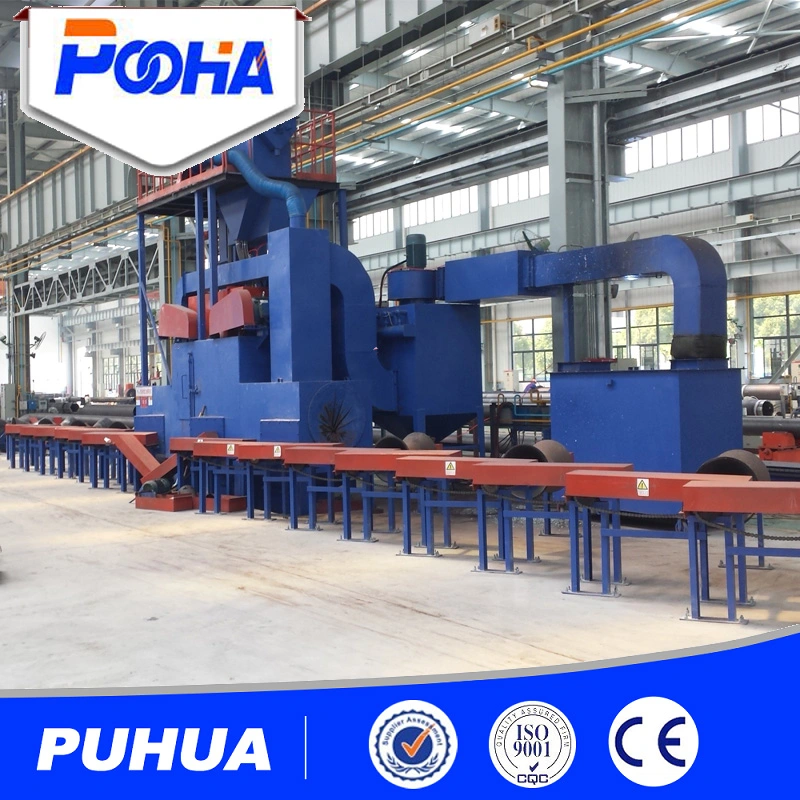

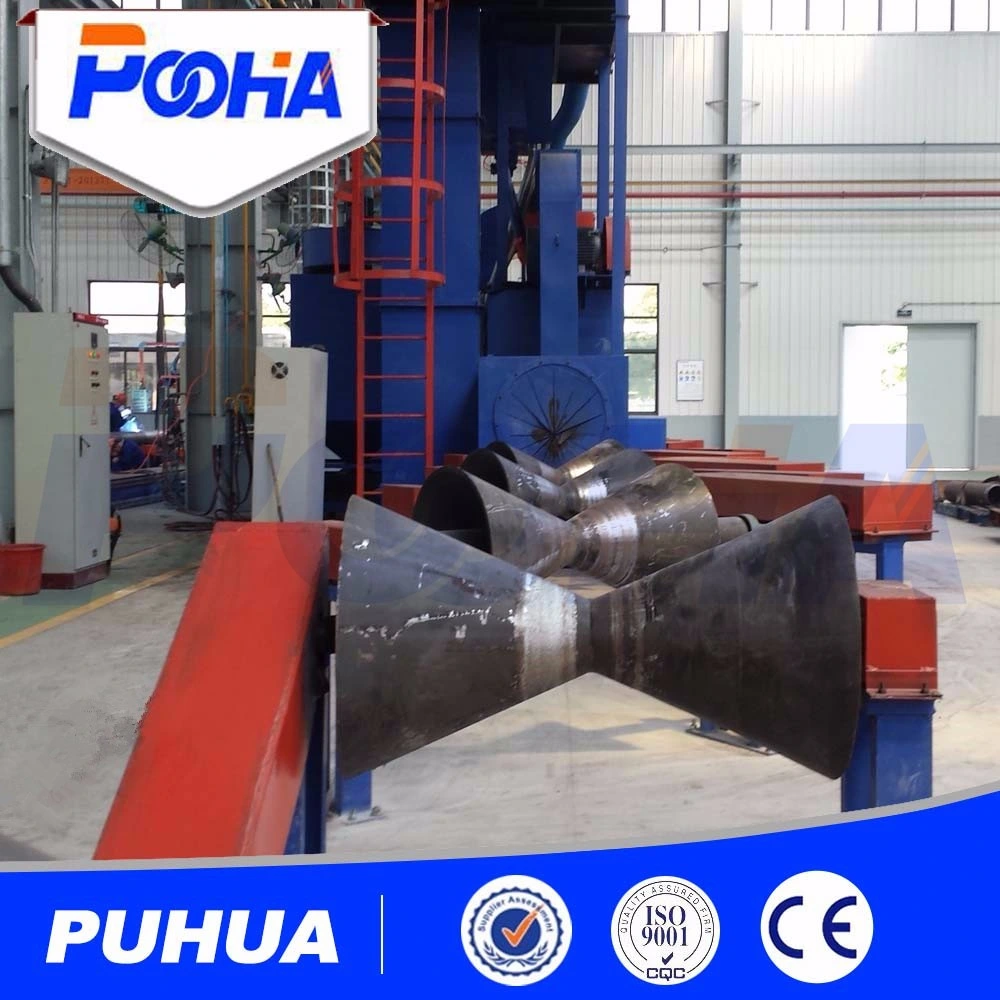

This machine is a special reciprocating steel sand blasting machine, which consists of Blasting chamber, Blasting wheel assembly, Roller conveoyr, Abrasive recycling system (Screw conveyor, Elevator, Separator), Dust removal system, Electric control system, etc.

Blasting chamber
Shot blasting chamber shells adopt profile steel and steel plate welding structure, is a strong, sealing, spacious operation space for shot blasting of workpieces. Shot blasting chamber is made by room body shell, gate, wall around, lateral wall, roof after, guard board etc.

Blast wheel assembly
Blast wheel assembly is made up of blast wheel shell, motor, importing tube, leaf, impeller, directional set of pills, points wheel, block sand plate, guard board and other components, which leaves, guard board, etc all wear parts using 20% high-chromium cast iron.

Dust removal system
This machine adopts Cartridge or Bag type dust collector, is exhausted air produced during working. The dedusting efficiency is up to 99.6%, powder density is less than 100mg/m3,much stricter than the national standard.

Electric control system
Set shot ball circulatory failure alarm function, if any parts of the system fails, the above components automatically stop running, to prevent the shot ball stuck and burning power device.

Round Steel Pipe Outer/External Wall Shot Blasting Cleaning Machine
Round Steel Pipe Outer/External Wall Shot Blasting Cleaning Machine

4. Advantages:
115 years professional production experience in shot blasting machinery industry.
222,000 m^2 production workshop, strong production capacity.
3Professional senior engineer develop the best solution.
4Strict quality control system, CE, BV, ISO9001 certificate available.
5Main components adopt imported international famous brand.
6Timely delivery, one hour to Qingdao port.
7Professional after-sale service, Email will be reply in 24 hours.
8Site installation and commissioning in your factory

5. Trade Information:

MOQ: 1set.
Settlement Currency: USD, RMB, EUR.
Trade mode: FOB, CIP, CFR, CIF, DDU, DDP.
Payment term: 30% deposit by T/T, the balance paid before delivery or L/C at sight.
Delivery time: Within 15-40 days according to different type machine.

6. After-sale service:

1). Installation and commissioning issue: We will send 1-3 technicians to assist with machine installation and commissioning, customer pays for their tickets, hotel and diet. Customer needs to arrange 3-4 skilled worker and prepare insallation machinery and tools.
2). Warranty time:12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3). Supply full english documents: including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
4). Exported experience : Many countries, such as The USA, Russia, UK, Ukraine, Australia, Malaysia, UAE, Egypt, Mexico, Brasil, etc.
5). Our shot blasting spare parts are high quality with High Chrome, ZGMn13, Mn65,  etc.

Warmly welcome you to visit our factory in Qingdao.
