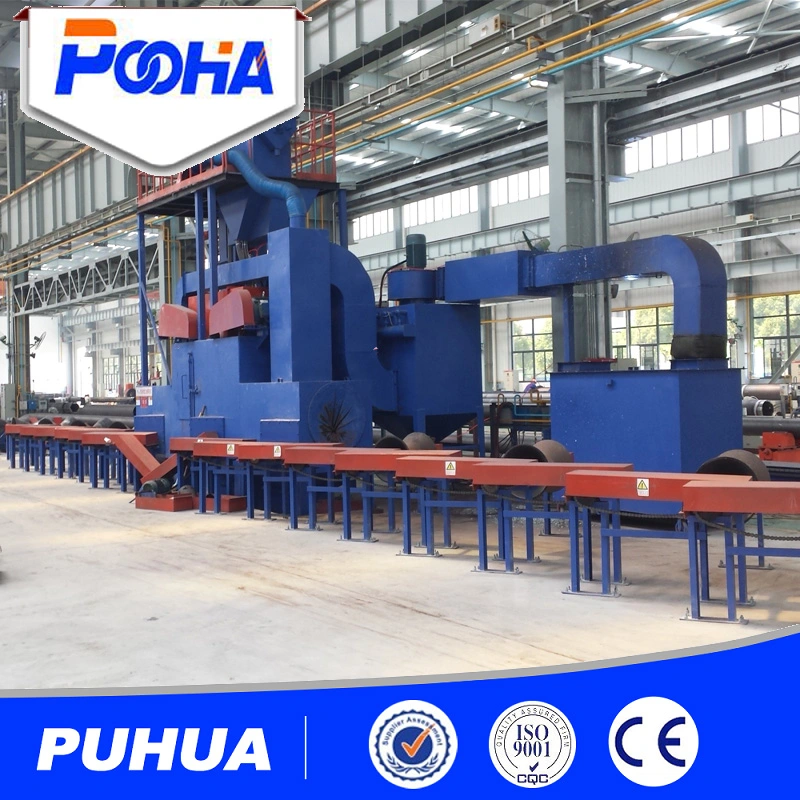

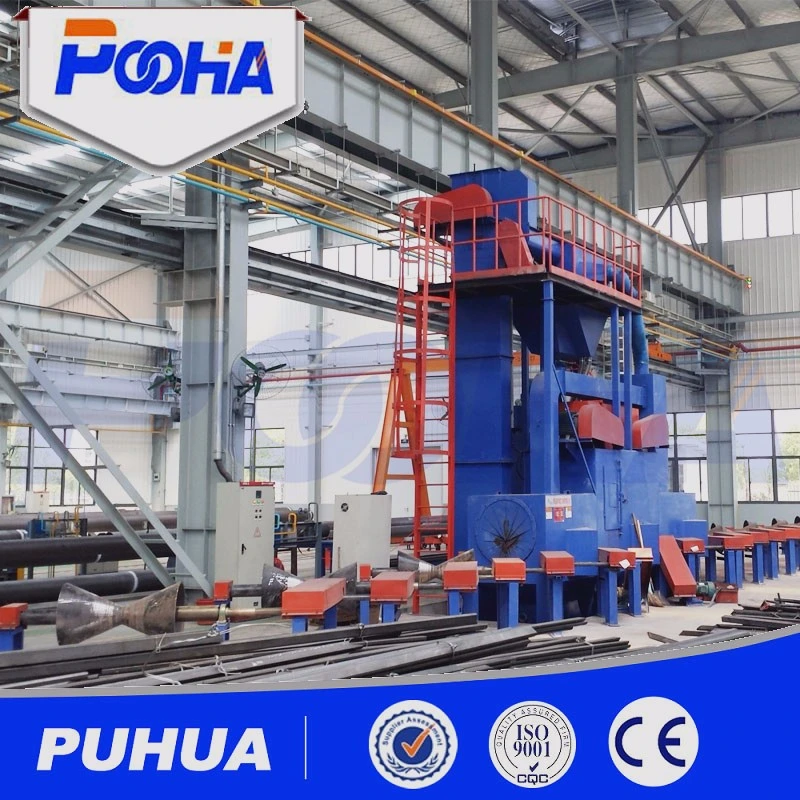

Roller Conveyor Steel Tube Outer External Shot Blasting Machine
We can design different types H beam shot blasting machine for customers according to different workpiece and requirement.
The technological strength
H Beam Shot Blasting Machine Basic Specification:
Structural characteristice
This machine is a special reciprocating steel shot blasting machine, which consists of Blasting chamber, Blasting wheel assembly, Roller conveoyr, Abrasive recycling system (Screw conveyor, Elevator, Separator), Dust removal system, Electric control system, etc.
H Beam Shot Blasting Machine Features:
Advantages:
FAQ:
Trade Information:
MOQ: 1set.
Settlement Currency: USD, RMB, EUR.
Trade mode: FOB (FCA), CIP, CFR, CIF, DDU, DDP, Turnkey.
Payment term: 30% deposit by T/T, the balance paid before delivery or L/C at sight.
Delivery time: Within 15-40 days according to different type machine.
After-sale service:
1. Installation and commissioning issue: We will send 1-2 technicians to assist with machine installation and commissioning, customer pays for their tickets, hotel and diet. Customer need arrange 3-4 skilled worker and prepare insallation machinery and tools.
2. Warranty time:12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full english documents: including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
4. Exported experience : Many countries, such as The USA, Russia, UK, Ukraine, Australia, Malaysia, UAE, Egypt, Mexico, Brasil, etc.
5. Our shot blasting spare parts are high quality with Cr20S High Chrome, 40Cr, SPMn13, etc.
Any question please kindly contact with us, and welcome to visit our factory in Qingdao China.
Contacting:
Mobile: 0086-13455293876
We can design different types H beam shot blasting machine for customers according to different workpiece and requirement.
The technological strength
| Shot blasting machine technical strength | |
| 1 | The first blasting & painting multifunction machine used for high-speed rail; |
| 2 | The first dedicated shot blasting machine used for aggrandizement floor stainless steel mold texturing |
| 3 | The first dedicated shot blasting machine used for high-speed rail turnout; |
| 4 | The first dedicated double-rotating trolley shot blasting machine used for polysilicon; |
| 5 | The first dedicated shot blasting machine used for oil field special-purpose cable tray; |
| 6 | The first marble plate imitation litchi surface shot blasting machine; |
H Beam Shot Blasting Machine Basic Specification:
| Parameter | Q698 | Q6812 | Q6915 | Q6920 | Q6925 | Q6930 | Q6940 |
| The effective cleaning width (mm) | 800 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Dimension of inlet opening (mm) | 1600*800 | 1200*400 | 1700*400 | 2200*400 | 2700*800 | 3200*800 | 4200*400 |
| The length of cleaning workpiece (mm) | 1200- 12000 | 1200- 16000 | 1200- 12000 | 1200- 12000 | 3000- 12000 | 2400- 12000 | 4500- 18000 |
| The speed of conveyor (m/min) | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 |
| The thickness of cleaning steel sheet (mm) | 3-60 | 3-60 | 1.5-60 | 3-60 | 3-60 | 3-110 | 4.5-100 |
| Shot ball flow rate (kg/min) | 4*120 | 4*250 | 4*250 | 6*250 | 6*250 | 6*360 | 8*360 |
| The shot ball first loading (kg) | 4000 | 4000 | 4000 | 4500 | 4500 | 8000 | 11000 |
| Roll brush adjusting height (mm) | 200 | 200 | 350 | 450 | 600 | 850 | 900 |
| Air capacity (m3/h) | 22000 | 17560 | 19000 | 19550 | 27758 | 28050 | 38000 |
| Total power (kw) | 90 | 78.3 | 113.5 | 156.6 | 204.8 | 224.55 | 293.6 |
Structural characteristice

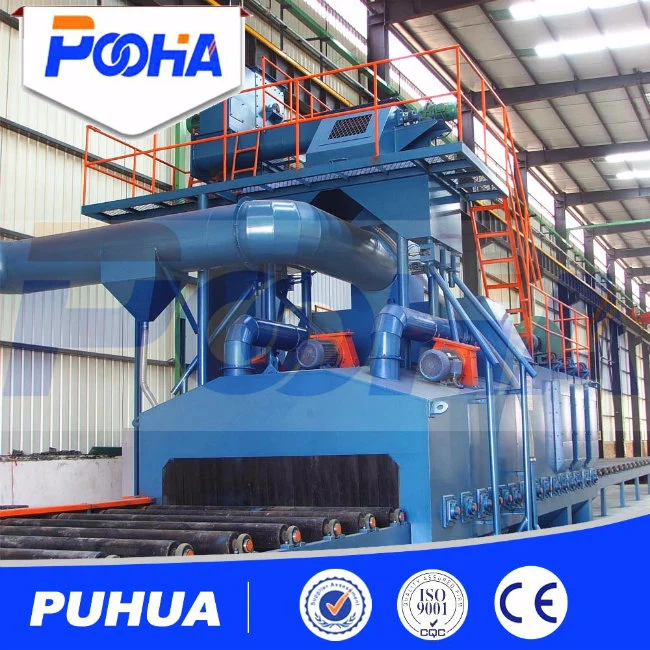

This machine is a special reciprocating steel shot blasting machine, which consists of Blasting chamber, Blasting wheel assembly, Roller conveoyr, Abrasive recycling system (Screw conveyor, Elevator, Separator), Dust removal system, Electric control system, etc.
H Beam Shot Blasting Machine Features:
| 1 | Improve the corrosion resisting ability of machinery products and metal materials. |
| 2 | Improve bonding strength of steel surfaces and coatings. |
| 3 | Increase the anti-fatigue capability of metal products and extend its life. |
| 4 | Optimize the craftwork state of steel surface. |
| 5 | Greatly enhance the efficiency of cleaning. |
| 6 | Reduce the labor intensity of cleaning works. |
| 7 | Reduce the environment pollution. |
Advantages:
| 1 | 10 years professional production experience in shot blasting machinery industry. |
| 2 | 22,000 m^2 production workshop, strong production capacity. |
| 3 | Professional senior engineer develop the best solution. |
| 4 | Strict quality control system, CE, BV, ISO9001 certificate available. |
| 5 | Main components adopt imported international famous brand. |
| 6 | Timely delivery, one hour to Qingdao port. |
| 7 | Professional after-sale service, Email will be reply in 24 hours. |
| 8 | Site installation and commissioning in your factory |
FAQ:
Trade Information:
MOQ: 1set.
Settlement Currency: USD, RMB, EUR.
Trade mode: FOB (FCA), CIP, CFR, CIF, DDU, DDP, Turnkey.
Payment term: 30% deposit by T/T, the balance paid before delivery or L/C at sight.
Delivery time: Within 15-40 days according to different type machine.
After-sale service:
1. Installation and commissioning issue: We will send 1-2 technicians to assist with machine installation and commissioning, customer pays for their tickets, hotel and diet. Customer need arrange 3-4 skilled worker and prepare insallation machinery and tools.
2. Warranty time:12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full english documents: including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
4. Exported experience : Many countries, such as The USA, Russia, UK, Ukraine, Australia, Malaysia, UAE, Egypt, Mexico, Brasil, etc.
5. Our shot blasting spare parts are high quality with Cr20S High Chrome, 40Cr, SPMn13, etc.
Any question please kindly contact with us, and welcome to visit our factory in Qingdao China.
Contacting:
Mobile: 0086-13455293876
