High Brightness 150lm/W IP65 LED Linear Lighting Fixture Tri Proof LED Light

Specification:


Model No.:WS-LI15M720L75W-B05
Power (W):70W
LED quantity720pcs
Material: PC+Aluminum
DimensionsL1500*W89*H77MM
Input Voltage(V):AC100-240V
Frequency Range: 50Hz-60Hz
LED Chips:SMD2835
Color Temperature:3000K/4000K/5000K/6000K
Power Factor: More than 0.95
Driver Efficiency>90%
Ra: >80
Beam Angle:140°
Lumen(lm): 100 or 150lm/W
IP Rate: IP66, IK10
Lifespan:50,000 hours
Warranty: 5 years
Working Temperature: -20ºC~+45ºC
Installation method:Suspended, Ceiling
Delivery Time5~7days for samples, 15-20 days for bulk order

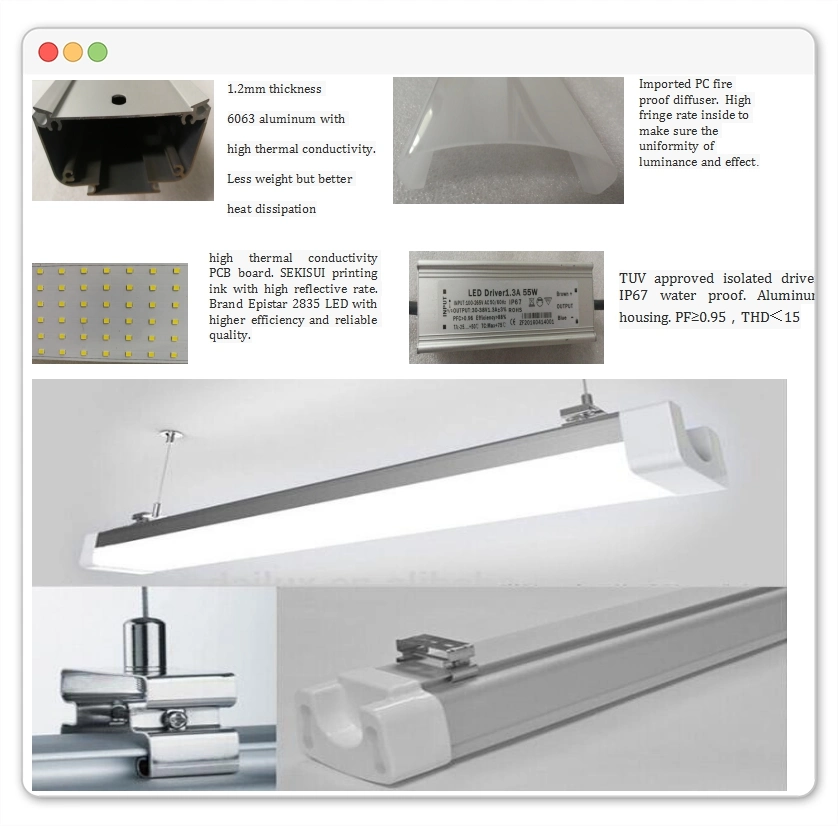

Product details show:

High Brightness 150lm/W IP65 LED Linear Lighting Fixture Tri Proof LED Light

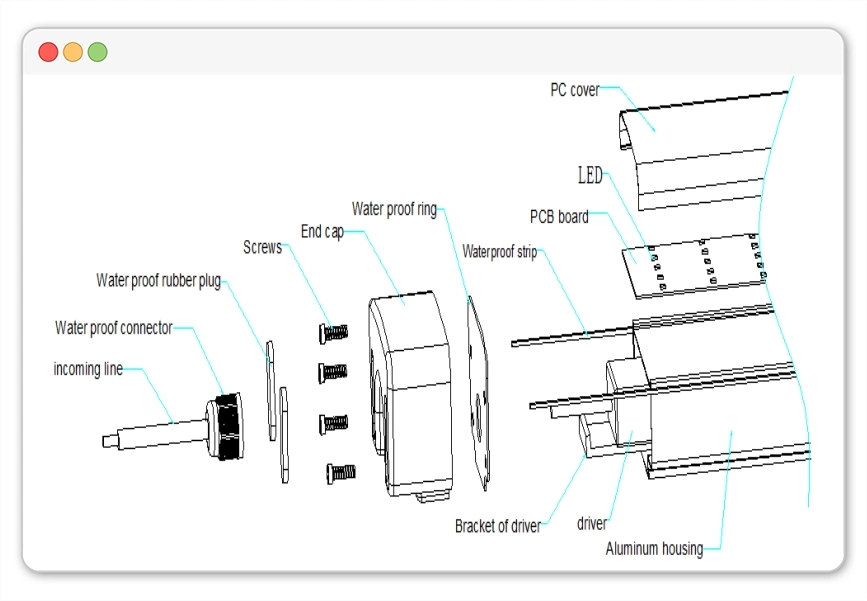

Explosive figure:

High Brightness 150lm/W IP65 LED Linear Lighting Fixture Tri Proof LED Light

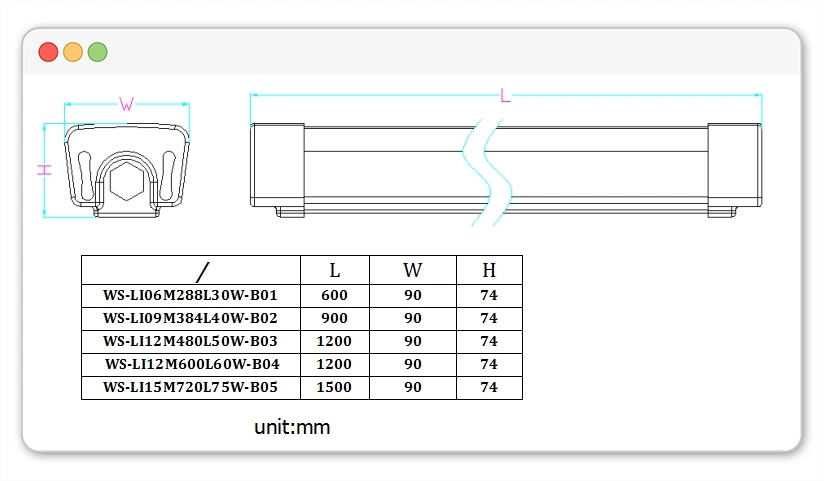

Product size:
High Brightness 150lm/W IP65 LED Linear Lighting Fixture Tri Proof LED Light

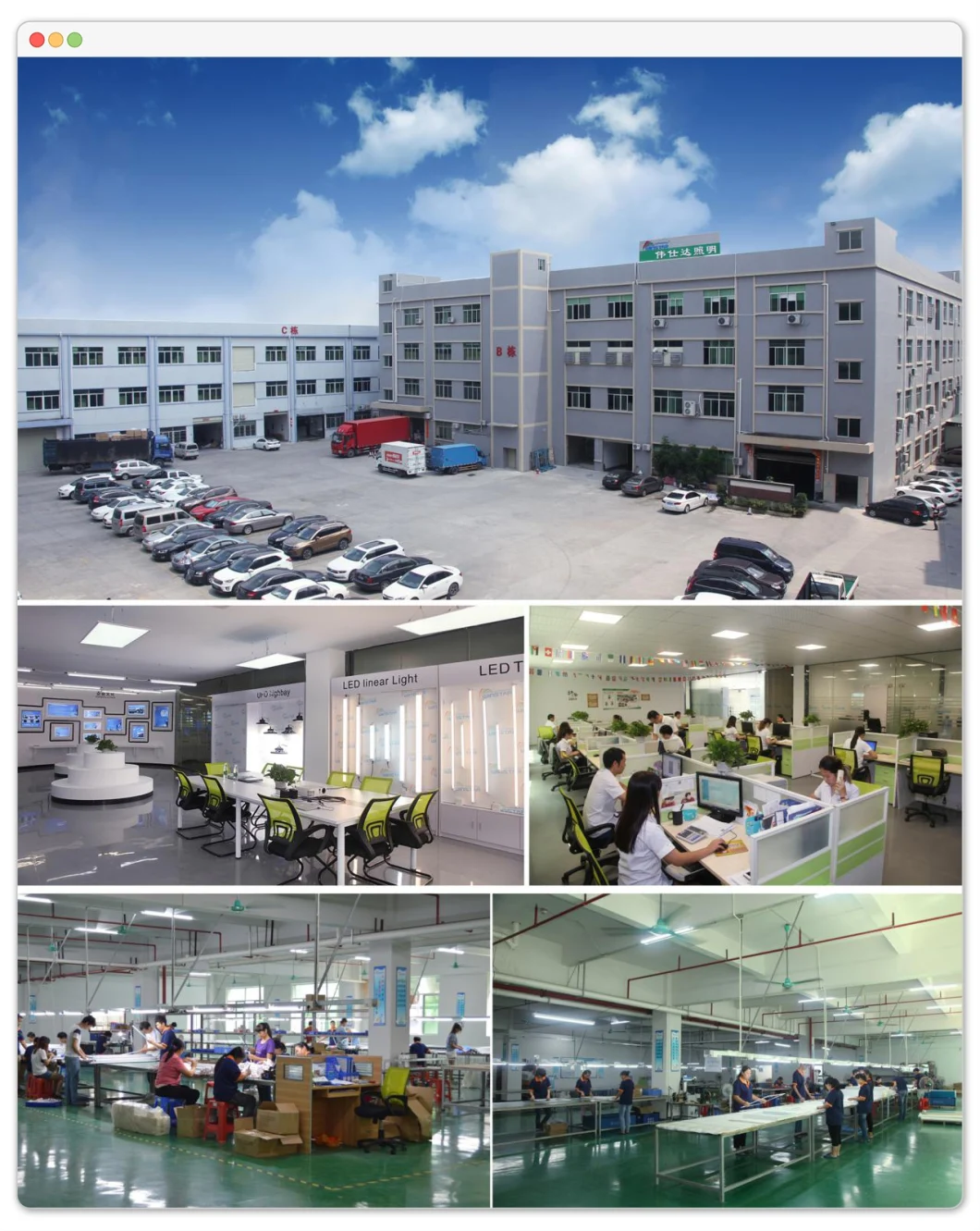

About our company:

Found date: Since 2009

Location: From 2009 to 2016, we are located at Shenzhen 1500mworkplace. At the end of 2016, we are moved to Dongguan with 5000mworkplace.

Main product: LED tube light, LED Panel, LED high bay and LED tri-proof linear light.

Main market: Asia, Europe, South America and Latin America.

Service: OEM and ODM

Delivery time: Flexible production system. Sample order 5-7 days. 1,000-5,000pcs 2-3 weeks. Over 10,000pcs, 3-4 weeks.

Price: We manufacture commercial and industrial LED lights that are not only better but also very affordable and cost-effective.

Quality: Normally we test three times before shipment. 1. Materials checking 2. Test during production 3. Test before packaging. Long lifespans ranging from 50,000 to 100,000hrs.

After sale-service: we support one to one replacement, no need to return products, we will send you same quality new ones. Then you have not any Risk after you buy from WINSTAR.

High Brightness 150lm/W IP65 LED Linear Lighting Fixture Tri Proof LED Light
FAQ:

Q1: Are you a factory or trading company? Where is your company located?
A1: We are a factory 100%, not trading company. Our company is located in Dongguan, China.

Q2: What is the warranty for our lamps?
A2: We have 3-5 years warranty for our lamps.

Q3: How do you ensure the quality?
A3: We are working with four QC processes to guaranty the quality: 1. For raw materials; 2. During the half of production; 3.Final QC test one by one after aging 12 hours; 4. QC selects inspection of the packaged products.

Q4: How to do if any quality problems from our reason in the warranty time?
A4: First, take pictures or videos as proof and send to us, and then we will replace new ones for free.

Q5: OEM OR ODM accepted?
A5: Yes, we can do OEM & ODM, logo on the light or package both is available.

Q6: Can we get support if we have our own market position?
A6: Please inform us your detailed market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.

Q7: What's your MOQ? Can I order small quantity for testing at first order?
A7: For new client, we accept small order for building mutual trust and long-term business relationship.

Q8: What is your shipping method suggested?
A8: Small package via courier such as DHL, Fedex, UPS; Bigger package by Air shipment; Big package via Vessel.

Q9: How many days will samples be finished? And how about the mass production?
A9: Generally 5-7 days for samples making. The leading time of mass production will depend on the quantity.

Q10. What's the payment method you accept?
A10:  T/T, L/C, Western union, MoneyGram. We could discuss case by case.

Q11: Can I visit your company?
Welcome to visit our factory and it is our great pleasure.
