Product Specification:
| Model Number | 90011 |
| Total Power | 1x1w |
| Input Voltage | DC12V/DC24V |
| Product Size | D42*H50MM (1.65"x1.96") |
| Beam Angle | 25°/30°/45°/60° |
| Emitting Color | White,Warm White, Red, Green, Blue |
| Gross Weight | 8KGS/Carton/24pcs |
| Carton Packing Size | 32x26x26cm/Carton 24pcs/Carton |
| Body Material | 304Stainlesss Steel / 316L Stainlesss Steel |
| Working Lifetime | >50,000Hrs |
| Mounting Sleeve | Plastic |
| IP Rating | IP68 |
| Certification | CE,RoHS,EMC |
1w LED underwater light,1W LED swimming pool light,18W LED pool light,1W LED underwater inground light specification:
1.Housing: 304#(316# is available) stainless steel;
2.Cover:304#(316# is available) stainless steel;
3.Glass: Tempered Glass T=8mm
4.Lens:Optional lens, Efficiency ≥ 85%
5.Waterproof Cable gland:IP68,PG-9 Copper and nickel coated,End-cap and housing are silicone sealed
6.MPCB: Excellent heat conductivity aluminum, coefficient of heat conductivity ≥ 2.0W/mk
7.waterproof seal:glass and housing are silicone sealed
8.Operating temperature::-20~+40centigrade.

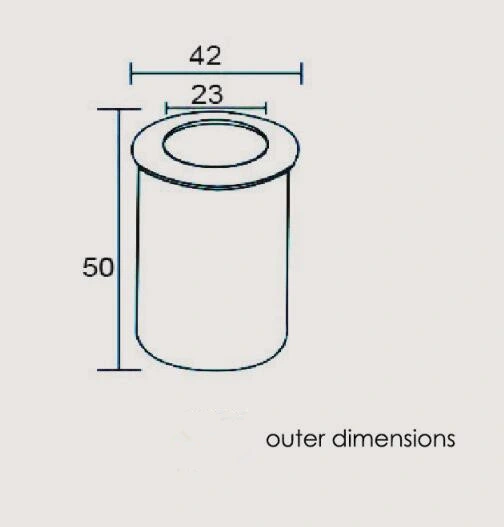

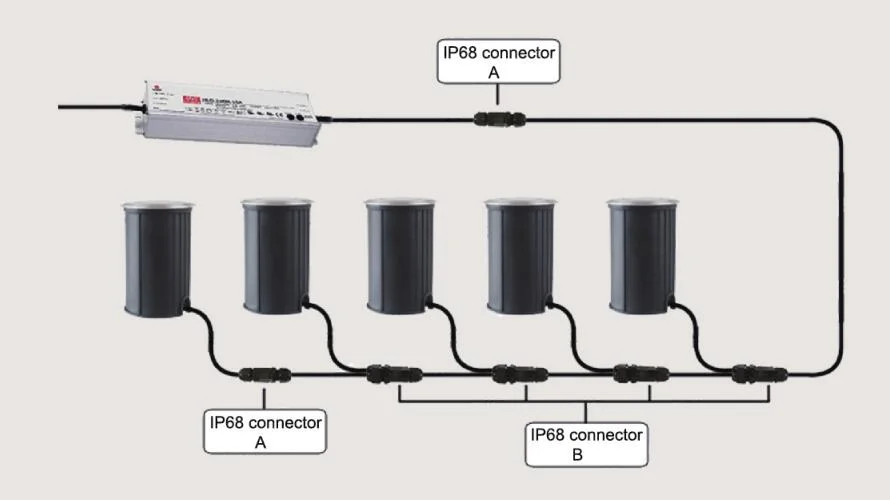

Drawing(size)& installation diagram:

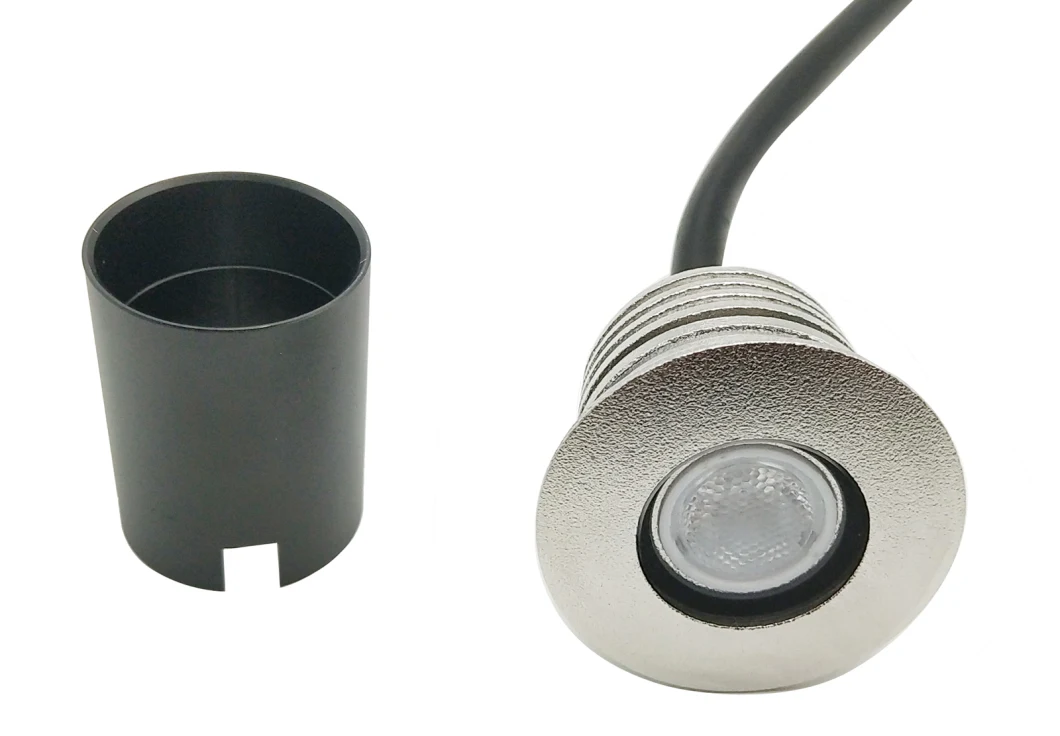

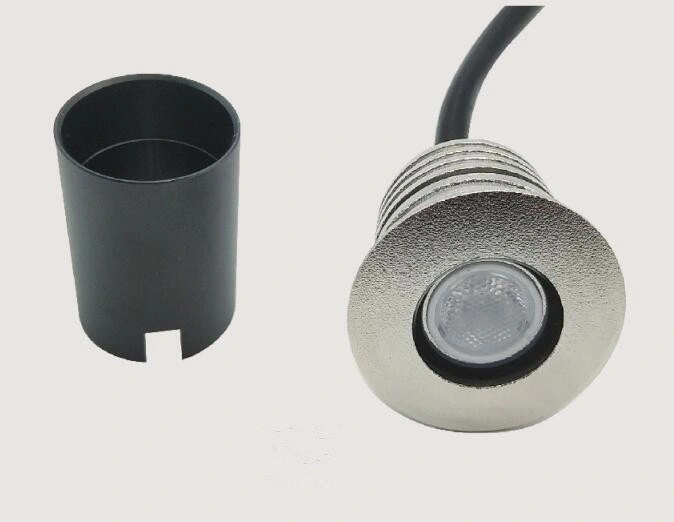

Product Photo:

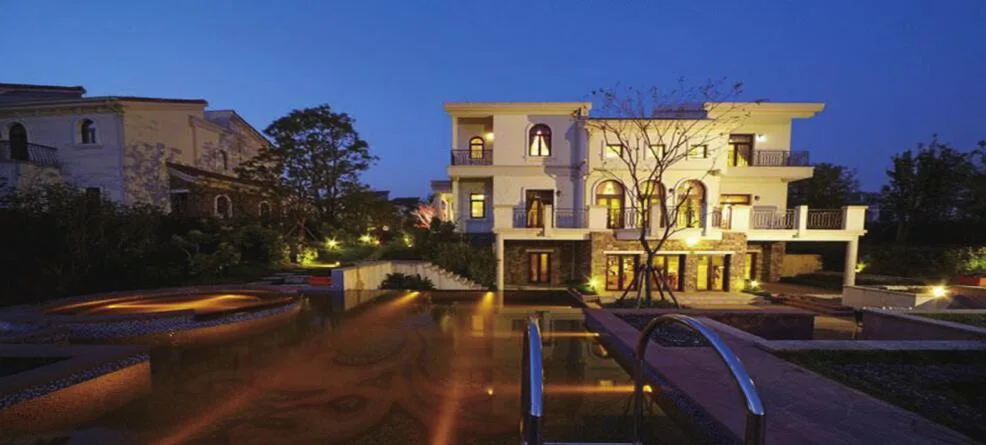

Application:
World-Wide Customers:
Our Service:
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more thanQ3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is availableQ4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
