Specification:
Model No.: | HX-P56-SMD3014-144 |
Material | PC, and we have glass, 316 stainless steel model |
Voltage: | AC12V/24V |
Power: | 12W(8W/18W/24W/35W also are available) |
Size: | Φ178*114mm |
LED qty: | 144 PCS |
LED Chip: | SMD3014&2835 |
IP grade | IP68 |
Color: | White/Yellow/Red/Green/Blue/RGB |
Net weight: | 0.95 kg |
Beam Angle: | 15° /30°/ 45° /60° Optional |
Life-span: | Above 50,000 hours |
Other watt also are available:
| Item No | LED QTY | Wattage | LED Type | Voltage | Material | Weight | Lumen |
| HX-P56-SMD3014-108 | 108pcs | 8W | SMD3014 SMD2835 | AC/DC 12V/24V | Thick glass, PC | 0.95kg | 600lm |
HX-P56-SMD3014-144 | 144PCS | 12W | SMD3014 SMD2835 | AC/DC12V/24V | Thick glass, PC | 0.95kg | 840lm |
| HX-P56-SMD3014-252 | 252pcs | 18W | SMD3014 SMD2835 | AC/DC12V/24V | Thick glass, PC | 0.95kg | 1300lm |
| HX-P56-SMD3014-333 | 333pcs | 24W | SMD3014 SMD2835 | AC/DC12V/24V | Thick glass, PC | 0.95kg | 1500lm |
| HX-P56-SMD3014-441 | 441pcs | 35W | SMD3014 SMD2835 | AC/DC12V/24V | Thick glass, PC | 0.95kg | 1800lm |
| LED Color | Single color: Red, Yellow, Blue, Green, Warm White (2700-3000K), Neutral White (4000-4500K), Pure White (6000-6500K), Cold White (9000-11000K) RGB Color inner controlled, remote controlled, Switch on/off controlled, DMX 512 controlled, external controlled | ||||||
Material Of PAR56 fixture shell | Thick Glass, PC, 316Stainless steel | ||||||
Controller OF PC IP68 12W LED Swimming pool light LED underwater light
1, automatic changing

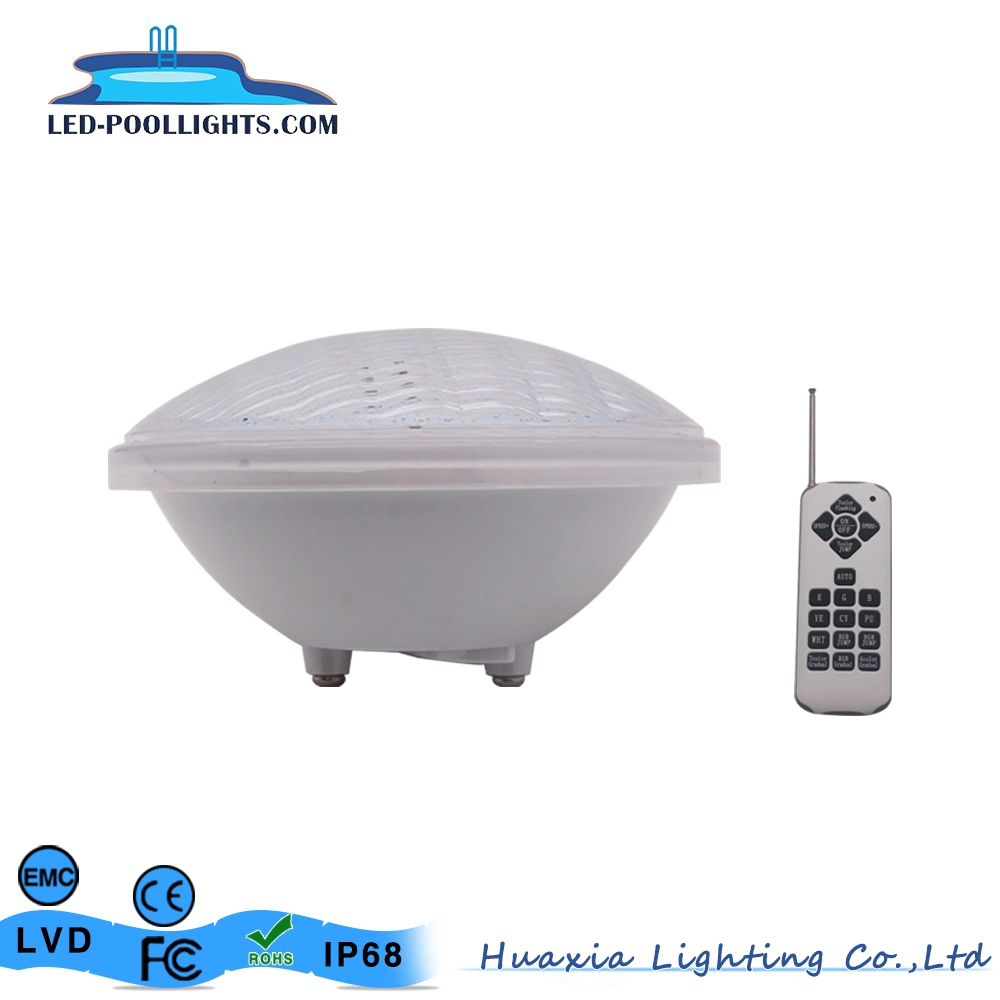

2, RF remote control
3, switch power on/off
4, RF remote + switch power on/off
5, external controller (can get the RGB color changing synchronous)
6, DMX512 (can get the RGB color changing synchronous)
7. Wi-fi control (can get the RGB color changing synchronous)

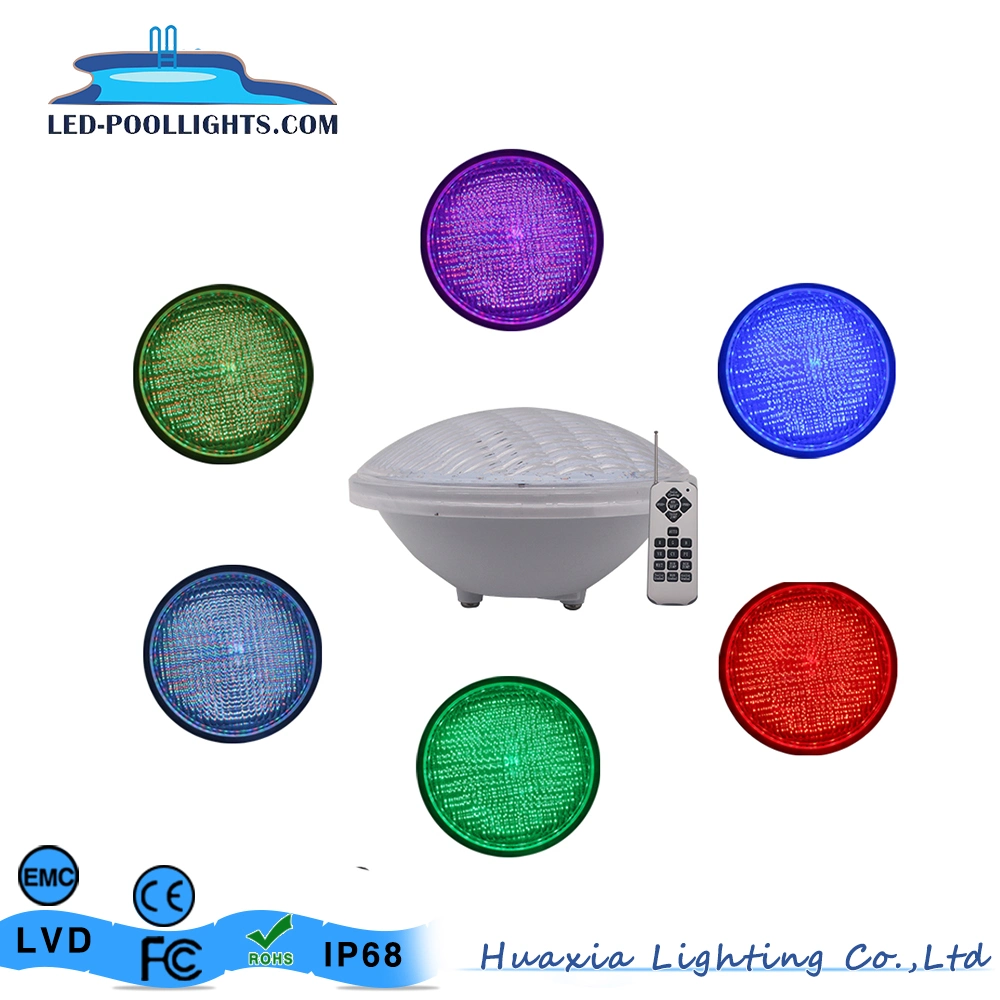

RGB color changing programs OF PC IP68 12W LED Swimming pool light LED underwater light
Mode 1: Red
Mode 2: Green
Mode 3: Blue
Mode 4: Red+Green(gold)
Mode 5: Green+Blue(cyan)
Mode 6: Red+Blue(violet)
Mode 7: RGB(white)
Mode 8: Disco-fast animation in RGB color flashing
Mode 9: Party-fast animation in RGB color flashing
Mode 10: Ripple-fast animation in RGB color stepping
Mode 11: Running-fast animation in RGB color stepping
Mode 12: Four seasons-slow animation in RGB color fading
Competitive Advantage Of PC IP68 12W LED Swimming pool light LED underwater light
1. Super brightness LEDs, save energy 85% than incandescent bulb.
2. No UV, low consumption, environmental protecting.
3. Long lifespan more than 50, 000 hours
4. More easily to heat dissipation
4. Full spectrum rich colors: RGB and single color (white, cool white, red, blue, green, yellow)
5. Can get the RGB Sync changing by remote control and external control
6. Certificate: CE, ROHS, IP68.
Applications:
It is used in swimming pools, fountains, Public and private Aquaparks and swimmingpools,scenic ponds' illumination and decoration.

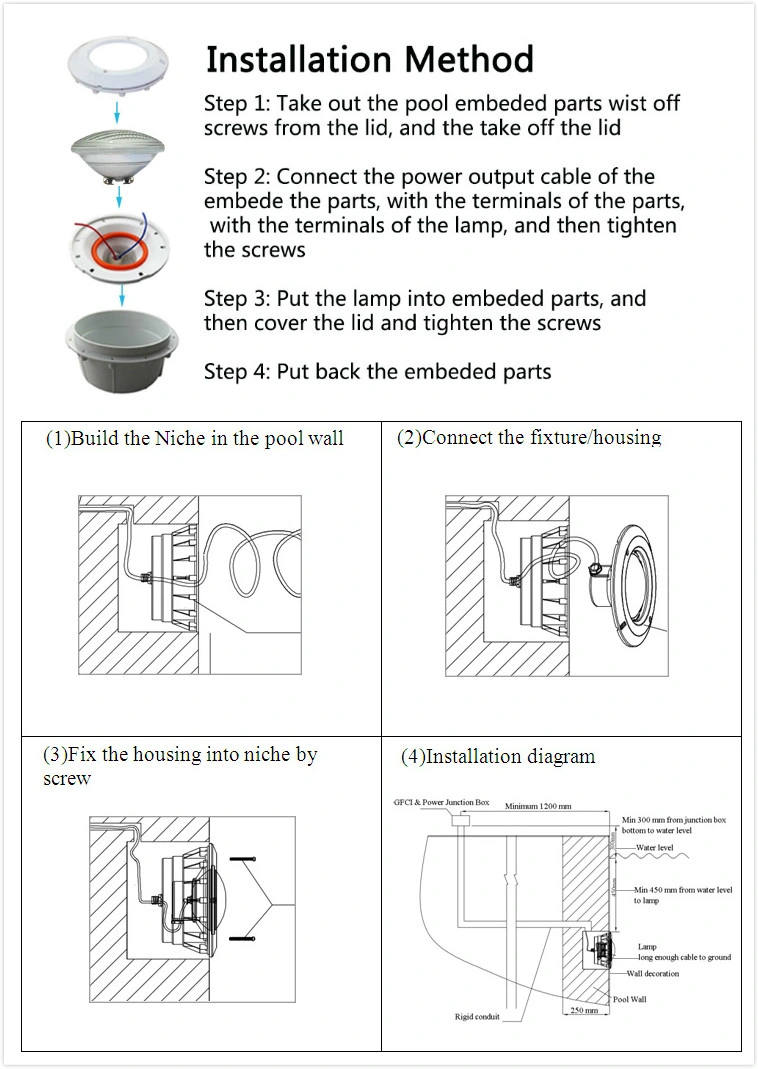

Installation Of PC IP68 12W LED Swimming pool light LED underwater light
Company Information:
Huaxia Lighting Co., Ltd is one of the leading professional manufacturer for LED Underwater Light industry for over 13 years. Huaxia has its own factory located in Shenzhen city, south of China, covering area of 3,800 square meters with around 200 workers and staffs. Our main product lines are led swimming pool light, pool light , led underwater light, led underwater spot light, led fountain light, led garden light and etc. Thanks to the high quality(defactive rate ≤ 2%) and the sensitivity to the market, our brand Huaxia is cooperating with 105 countries , also Huaxia has been widely acknowledged among our customers from Europe, America, Middle East, Asia for its novel designs, reliable quality and sound service. At the same time, Huaxia products are granted with CE RoHS, IP68, LVD, EMC LECEE ,CB Test. and other certificate.
Exhition Of PC IP68 12W LED Swimming pool light LED underwater light
FAQ:
Q1. Can I have a sample order for pool led light?
A: Yes, we accept a sample order to test and check quality.
Q2. What about the lead time?
A:Lead time is 5-7 working days after receipt of payment.
Q3. Do you have any MOQ for pool led light?
A: No MOQ request.
Q4: Do you have any certification for pool led light?
A: Yes, we have CE, RoHS, EMC, FCC, LVD, EU:1194, EU:874, ICE:62717, IEC: 62722-2-1
Q5: Do you offer guarantee for pool led light?
A: Yes, we offer 2 years warranty to our products.
Q6: How to deal with the faulty?
A: We will offer free replacement with your new order.
