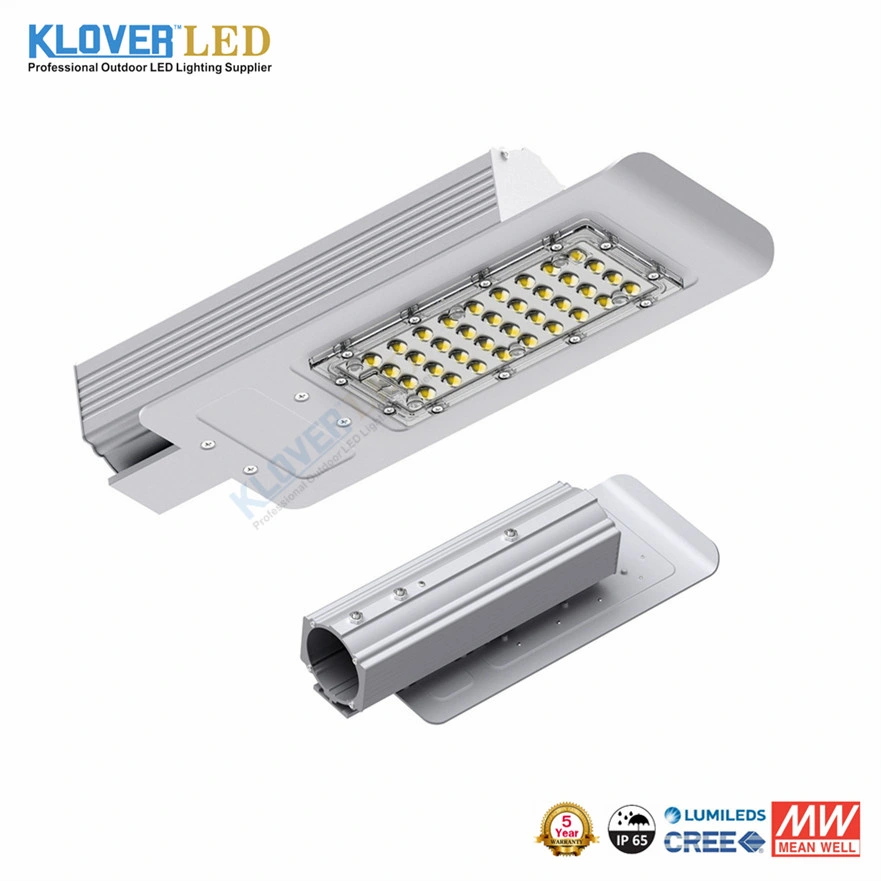

Waterproof IP65 Good Price 30W 50W 70W LED Garden Light for Outdoor LED Lighting
Features:
1. Slim design, economical and high quality
2. IP67 water proof
3. High quality full aluminum design, excellent heat dissipation.
4. Luminaire efficiency: >120lm/w
5. LED driver box integrated in the lamp pole holder, with small wind resistance, endure hurricane.
6. Lamp holder size diameter 63mm and 40mm optional
30W, 50W, 70W, 100W, 120W optional, 30W equipped 36pcs SMD3030 chips.
Product size for 30W LED Garden Light
Specifications for 30-120W LED street lights
| Product Name | 30W LED Street light | 50W LED Street light | 70W LED Street light | 100W LED Street light | 120W LED Street light |
| Rated Power | 30W | 50W | 70W | 100W | 120W |
| Model Number | CL-SL0113-30W | CL-SL0113-50W | CL-SL0113-70W | CL-SL0113-100W | CL-SL0113-120W |
| Beam Angle | 140*80° | ||||
| LED Driver | Meanwell, MOSO OR CB driver | ||||
| LED Chips | CREE SMD3030/Ph-ilips Luxeon SMD3030/Osram SMD3030/Bridgelux SMD3030 | ||||
| LED Quantity | 36pcs | 54pcs | 77pcs | 112pcs | 144pcs |
| Luminaire Flux | >3,300lm | >5,500lm | >7,700lm | >11,000lm | >13,200lm |
| Luminaire Effciency | >110lm/w | ||||
| Input voltage | AC85-308V, 50/60HZ | ||||
| Power Factor | >0.95 | ||||
| THD | <10% | ||||
| Lightning protection | 6KV/10KV | ||||
| Light Color | Warm White/Natural White/Cool White | ||||
| Color Temperature | 2700-3300K/4000-4500K/6000-6500K | ||||
| CRI | Ra>75, higher CRI available | ||||
| UGR | <19 | ||||
| IP Rating | IP67 | ||||
| Working Temperature | -30ºC To 60ºC | ||||
| Material | Die-casting aluminum alloy and tempered glass | ||||
| Product size(mm) | 366*135*89 | 431*160*89 | 431*160*89 | 632*215*90 | 632*215*90 |
| Lifespan | >50,000 hours | ||||
| Warranty | 5 Years | ||||
Features Waterproof IP65 Good Price 30W 50W 70W LED Garden Light for Outdoor LED Lighting
Bat wing light distribution curve
Application for 30W LED street light
Suggested Lamp pole height: 3-5m
Suggested Lamp pole distance/spacing: 15-20m
Suitable two carway lighting and install on both sides of the road
Suitable for one carway lighting and install on one side of the road
Suitable for garden/path/sidewalk/courtyard lighting
Our production line for LED street lights
Company profile:
FAQ
Q1. Can I have a sample order for LED street light?
A: Yes, we welcome any sample orders, can mix different models to order sample.Can test as long time as you wish, 1 year to 5 years no problem, we have full confidence on our quality.
