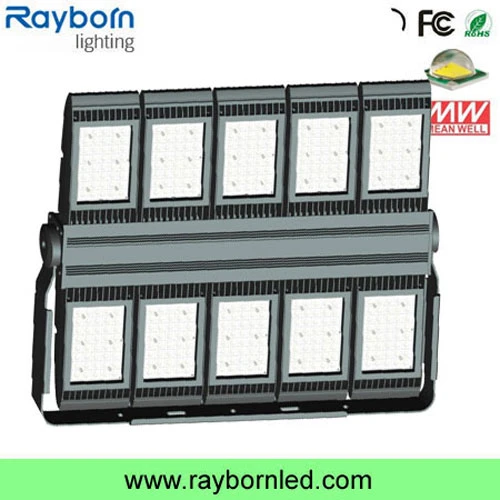

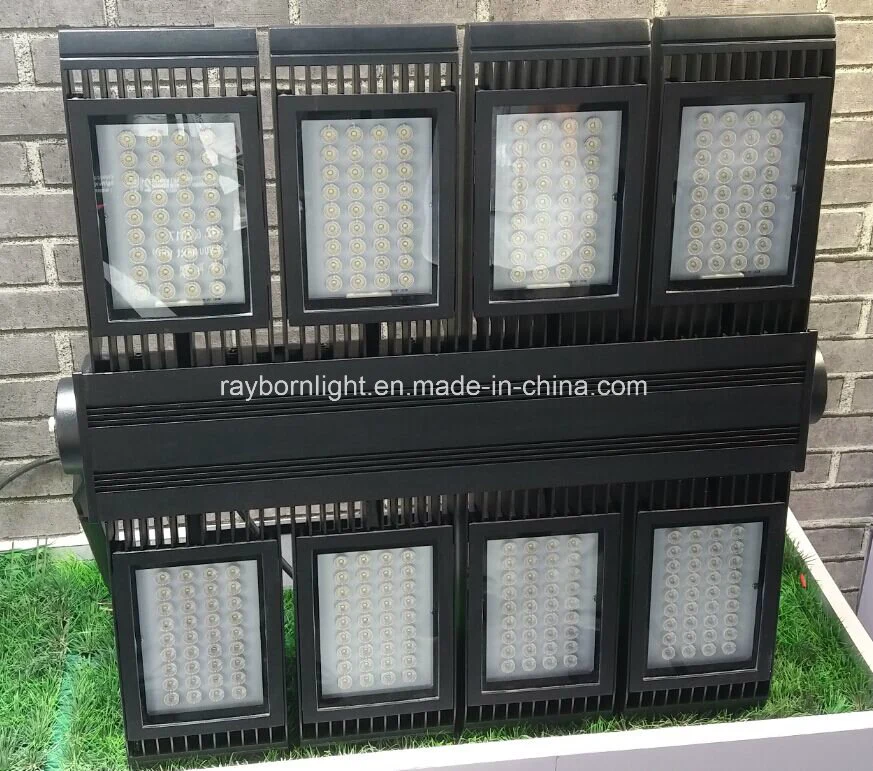

800W LED Outdoor Stadium Flood Light with Mean Well Power Stadium Lighting Flood Light

800W LED Outdoor Stadium Flood Lighting with MeanWell Power Supply Gymnasium Lighting Flood LampProduct Specifications:LED Flood Light/Industrial LED Lighting (10-1000W)800W LED Floodlight Main Technical ParametersItem No.:RB-FLL675-800W Input Voltage:AC 90-305VFreqency Range:50Hz~60HzPower Factor:>0.98Power Efficiency:&

Featured Products

800W LED Outdoor Stadium Flood Lighting with MeanWell Power Supply Gymnasium Lighting Flood Lamp

Product Specifications:

LED Flood Light/Industrial LED Lighting (10-1000W)
800W LED Floodlight Main Technical Parameters
Item No.:RB-FLL675-800W
Input Voltage:AC 90-305V
Freqency Range:50Hz~60Hz
Power Factor:>0.98
Power Efficiency:>90%
LED Power800W
Lamp Driver`Meanwell
LED ChipSMD3030/SMD5050
LED Luminous Efficiency130-140LM/W
System Consumption:840W
LED Luminous Flux104000lm
Viewing Angle:10/30/60/120/63*135/85*135 degree
Illuminance Uniformity:>0.6
Color TemperatureWarm White3000K~3300K
Pure White5500K~5700K
Cool White6000K~6500K
Color Rendering IndexRa>80
Light Distribution:LED points visible
LED Junction Temperature:≤125ºC
Working Temperature:-40ºC~50ºC
IP Grade:IP66
Working Life-span:50000 H
Warranty time5years
CertificateCE/ROHS

800W LED Outdoor Stadium Flood Lighting with Meanwell Power Supply Gymnasium Lighting Flood Lamp
High Power LED Flood Light Main Feature:

1. LED: 130-140lm/w Lumiled high brightness led chip .
2. Power supply: Meanwell HLG
3. Material: powder coated die cast aluminum.
4. High light transmittance plastic lens for each leds,lamp luminous flux can reach 130-140lm/w.
5. Internal power supply design,make the flood light safer for operation
6. Adjustable bracket equipped with three different fastening points,which enable the installation of the fitting in each position needed.
7. 10/30/60/120/63*135/85*135 deg beam angle optional,different application are fulfilled in one simple design,which can direct the light to the exact area
needed,no light pollution.It's especially suitable for stadium and sports field.
8. Maintence free during it's lifespan.
9. 80-90% energy efficient compared with conventional lights
10. color of body: silver/gray/black.
11. IP Rating : IP66

Outdoor LED Floodlight Competitive Advantage :

1.  High efficiency to meet rigorous photometric requirements.
2.  System rating 50,000 hours LM80 to reduce maintenance.
3.   LED Flood light has high-pressure cast aluminum electrical box painted electroplating both inside and outside, stainless steel or plating chromium fittings, making the installation flexible and convenient. Scuba patent technology making the optical system precision and efficiency.
4.  LED high efficiency and long life, not only provides a bright, diversity, lasting and innovative lighting environment, but also greatly reduce the purchase system and maintenance costs.
5.  Passed DesignLights Consortium qualifications.
6.  Vented housing design isolates LED module from driver for long life and improved performance.
7.  Tempered glass lens protects LEDs and allows for easy cleaning/debris removal.
8.  Adjustable mounting bracket allows you to direct light where you need it.
9.  IP66 Rated.

Professional simulation of Stadium LED Flood light :

800W LED Outdoor Stadium Flood Lighting with Meanwell Power Supply Gymnasium Lighting Flood Lamp

LED Flood light more than 24hours aging test :

Before shipping, all the LED flood lights will be over 24 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, defective rate is controlled  less than 0.1%. Quality is ensured, you can be assured.
800W LED Outdoor Stadium Flood Lighting with Meanwell Power Supply Gymnasium Lighting Flood Lamp

Outdoor LED Flood light Applications:

1. Advertising board,playground and stadium lighting.
2. Parking lot and airport lighting.
3. Highway and Railway tunnel lighting.
4. Bridge and culvert lighting.
5. Square,garden,and building lighting.
Widely used in factory,gymnasium,billboards,buildings,lawns,landscaping,offices,the site of light project and decorative lighting project etc.

800W LED Outdoor Stadium Flood Lighting with Meanwell Power Supply Gymnasium Lighting Flood Lamp
800W LED Outdoor Stadium Flood Lighting with Meanwell Power Supply Gymnasium Lighting Flood Lamp

Payment terms:

1. Payment: T/T, L/C at sight, Western Union ,Paypal available
2. Samples can be available within 5-7 working days; Order: 10-20Days
3. Shipping freight is quoted under your requests
4. Shipping port:Shenzhen , China
5. Discounts are offered based on order quantities

FAQ :

1. What is the general business process?
Answer : Send Inquiry to Rayborn. → Specification Confirmation → Quotation → Sample List Confirm → Proforma Invoice → Payment Bank Slip → Sample Delivery → Sample Satisfactory → Bulk Order List → Proforma Invoice → 30% Deposit Payment in Advance → Production Ready → 70% Balance bank slip → Delivery → After Sale Service

2. What is the warranty?
Answer : 5 years warranty is offered depending on different types of lights. If item fails due to quality problem during warranty, we can send new replacement with freight on ours immediately if urgently. Or we prefer to send replacement with next order.

3. What is the payment term?
Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance.                  For bulk order, 30% deposit in advance by T/T, 70% balance before shipping.                  For very big order, L/C is negotiable

4. Can I add my logo on the product label?
Answer : Yes, but order quantity is requested depending on different lights.

5. I don't know how many Led Flood Light should I use, can you advise?
Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team.

6. Do you have any MOQ limit for led light order?
Answer: Low MOQ, 1pc for sample checking is available .

7. How do you ship the goods and how long does it take to arrive?
Answer: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

8. How to proceed an order for led light?
Answer : Firstly let us know your requirements or application.
               Secondly We quote according to your requirements or our suggestions.
               Thirdly customer confirms the samples and places deposit for formal order.
               Fourthly We arrange the production.

9. How to deal with the faulty?
Answer : Firstly, Our products are produced in strict quality control system and the defective rate < 0.2%.
              Secondly, during the guarantee period, we will send new lights with new order for small quantity.
              For defective batch products, we will send out new replacement to you immediately for you to solve the problem.
