Tunnel Wall Light IP65 240W Outdoor LED Building Exterior Lighting

1. Technical ParametersNo.ParametersSpec.1Input Voltage100-277V/50/60Hz2Power300W3DriverMEAN WELL 4LED TypeOsram/Lumileds  30305LED QTY96PCS*46Electrical Connection8 in series & 48 parallel7Drive Current/LED Chip125MA8Luminous Flux36000lm9Light Efficiency120lm/W10Color Temp.3000-5700K11CRI>70

Featured Products

1. Technical Parameters
No.ParametersSpec.
1Input Voltage100-277V/50/60Hz
2Power300W
3DriverMEAN WELL
4LED TypeOsram/Lumileds  3030
5LED QTY96PCS*4
6Electrical Connection8 in series & 48 parallel
7Drive Current/LED Chip125MA
8Luminous Flux36000lm
9Light Efficiency120lm/W
10Color Temp.3000-5700K
11CRI>70
12LENSPC LENS
13Beam Angle45°/ 90°/ 135*85°
14Driver Efficiency92%
15Power Efficiency95%
16Working Temp.-25ºC-40ºC
17ScrewsStainless Steel 304
18ColorWhite, Black, Grey
19Package 570*425*115mm
20Gross/ Net Weight7.4/6.7kg
21IP RateIP65
22Lifespan L7050000h
23InstallationU-Type Bracket

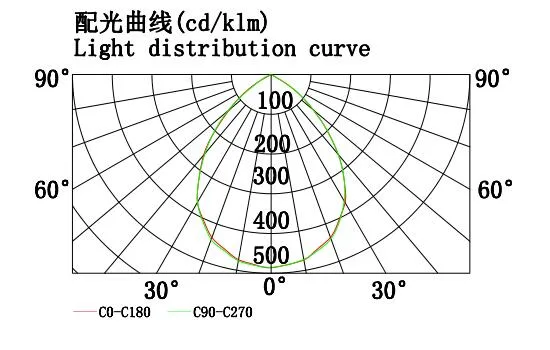

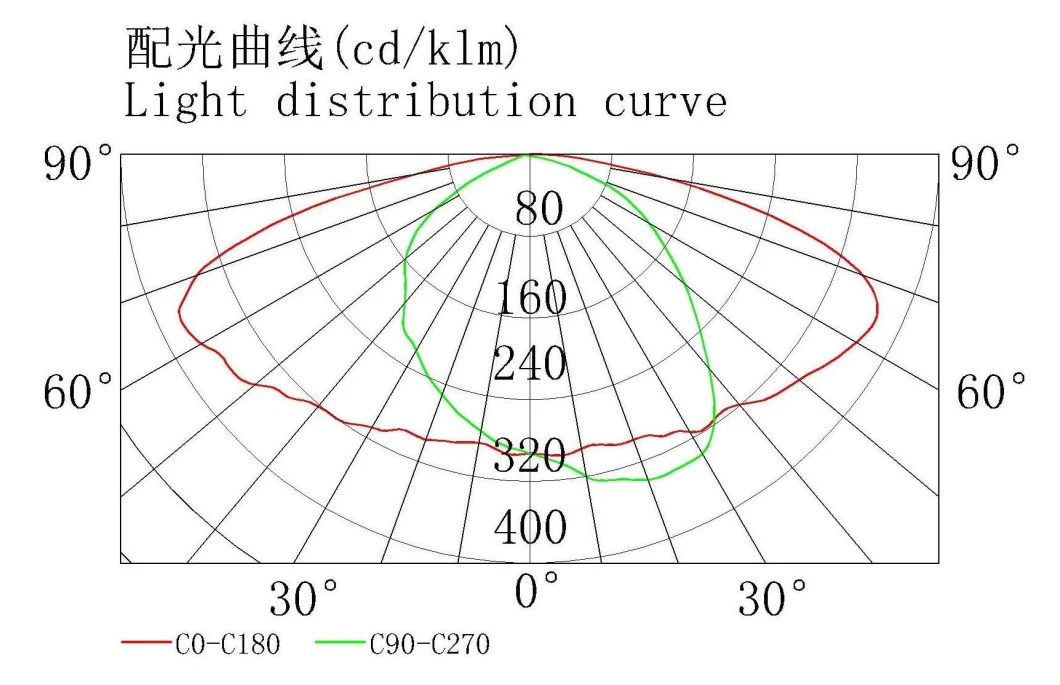

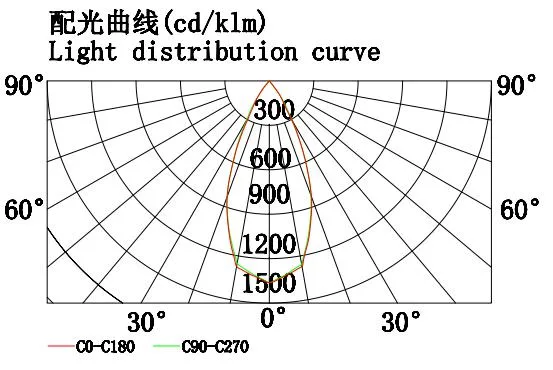

2. Light Distribution Curve (cd/kLM)

135*85°
Tunnel Wall Light IP65 240W Outdoor LED Building Exterior Lighting


9
Tunnel Wall Light IP65 240W Outdoor LED Building Exterior Lighting

45°
Tunnel Wall Light IP65 240W Outdoor LED Building Exterior Lighting

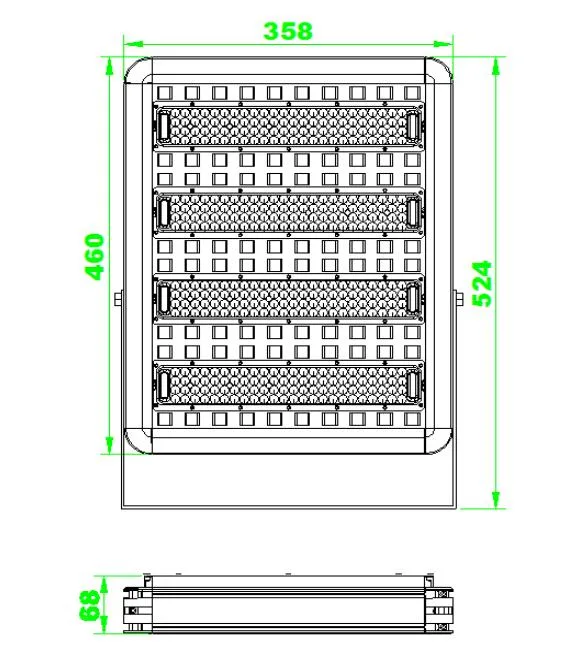

3. Product Dimension
Tunnel Wall Light IP65 240W Outdoor LED Building Exterior Lighting

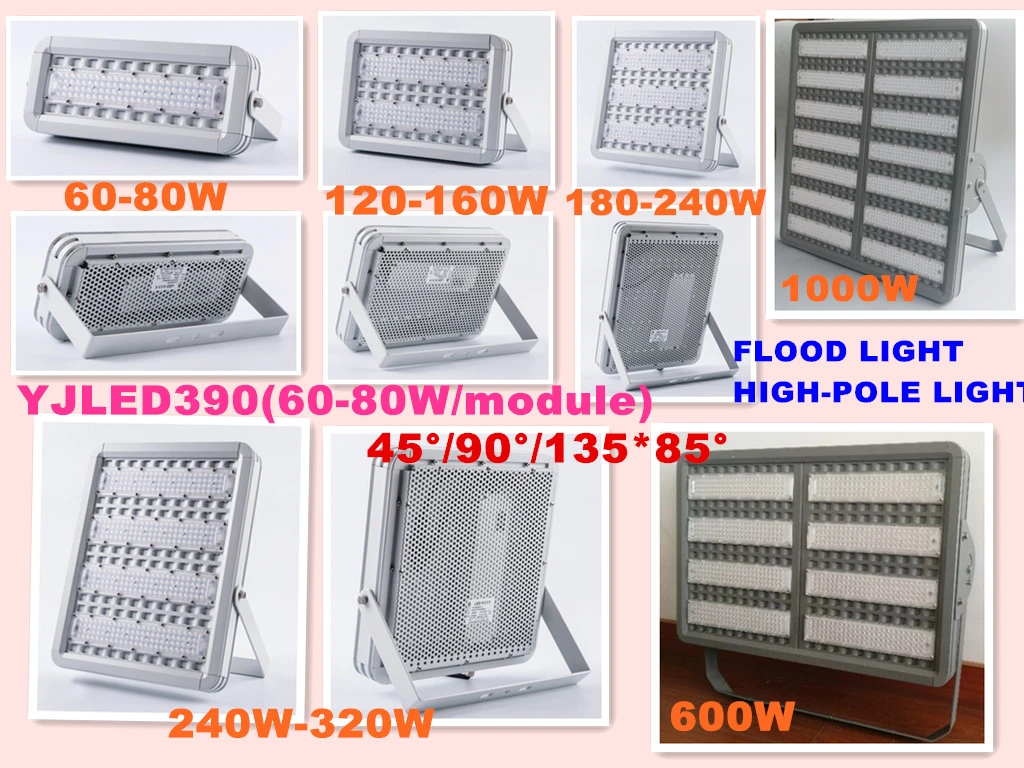

4. Related Product
Tunnel Wall Light IP65 240W Outdoor LED Building Exterior Lighting


5. Product Features
1) The lamp body uses aviation aluminum, bent by 1070 aluminum plate, with efficient thermal conductivity, improving the service life of lamps.
2) The design of integrated module is good for heat releasing, The hollow design between modules can strengthen the ventilation cooling.
3) The lamps use high-quality PC lens which have integrated combination, to ensure that the lamp has good waterproofness and strong anti ultraviolet ability. The light transmission rate is up to 92%.
4) The lamps have high lumen output and color rendering index. As several color temperature and multifarious lens for option, lamps can meet a variety of lighting needs.
5) Green environmental protection, long life, good impact resistance, strong earthquake resistance, IP65.


6Factory Intriduction
Established in 1988, Jiangsu Yongjiong Electricity Lighting Co., Ltd and Changzhou Yongjiong International Trading Co., Ltd is a specialized manufacturer of various lighting fixtures and matched electric components(lamps, ballasts, ignitors, capacitors and drivers). Our products are used widely in the fields of commerce, industry, building, etc.
After development and market experience for more than 20 years, now we have advanced production and test equipments, and we have a technical ability of independent researching. We have passed ISO9001 quality system and certificate of CCC, CE, UL, ETL and DLC. Our products are popular in domestic market and Europe, America and Asia market. Our principle is " best quality, excellent service, proper price".
We will pursue " good principle, create brand, excellent service" continuously and endlessly. We are striving to do better.
