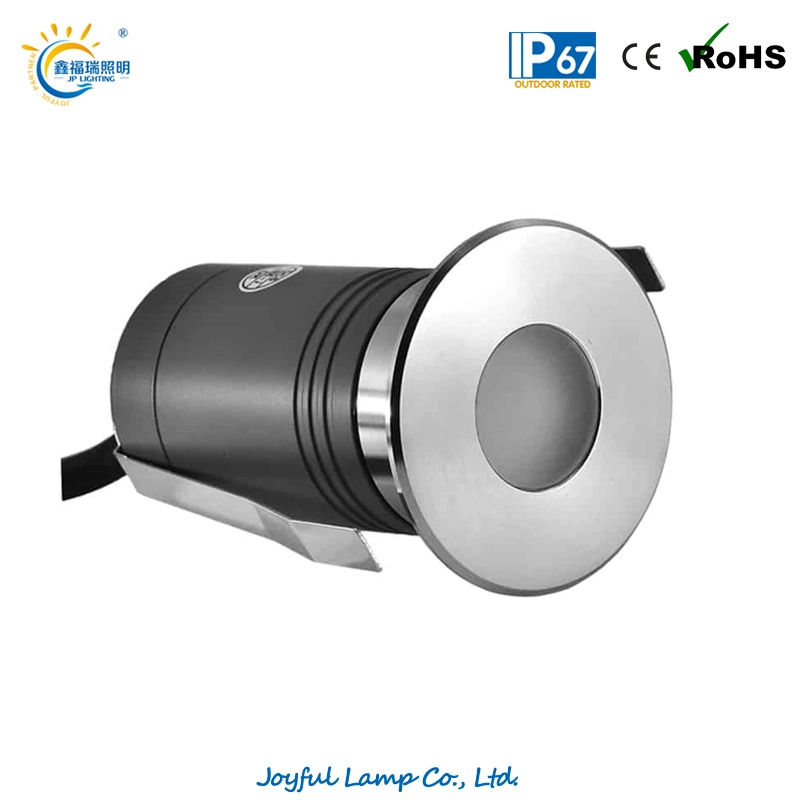

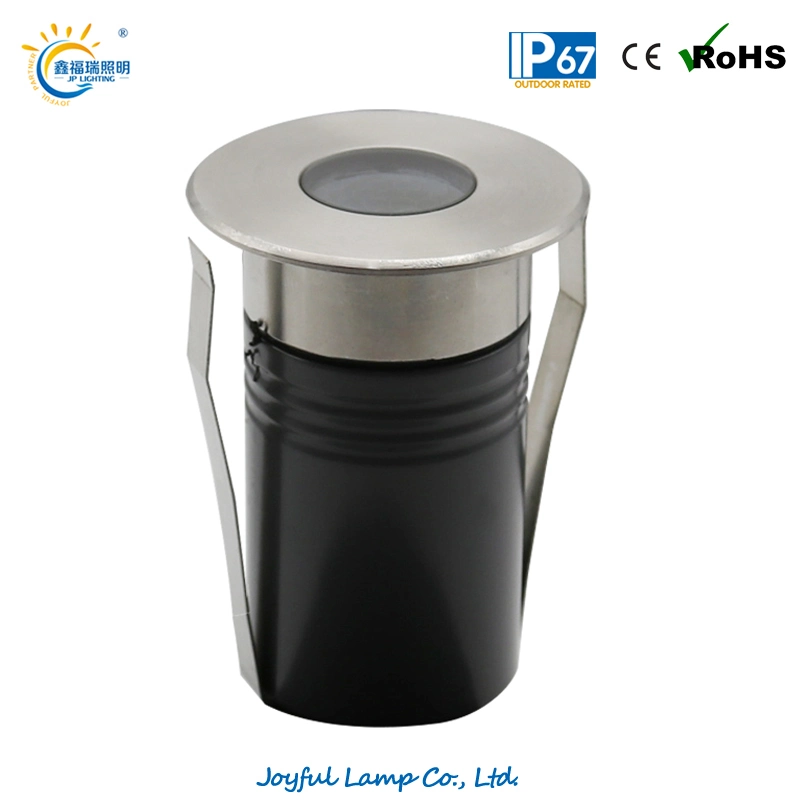

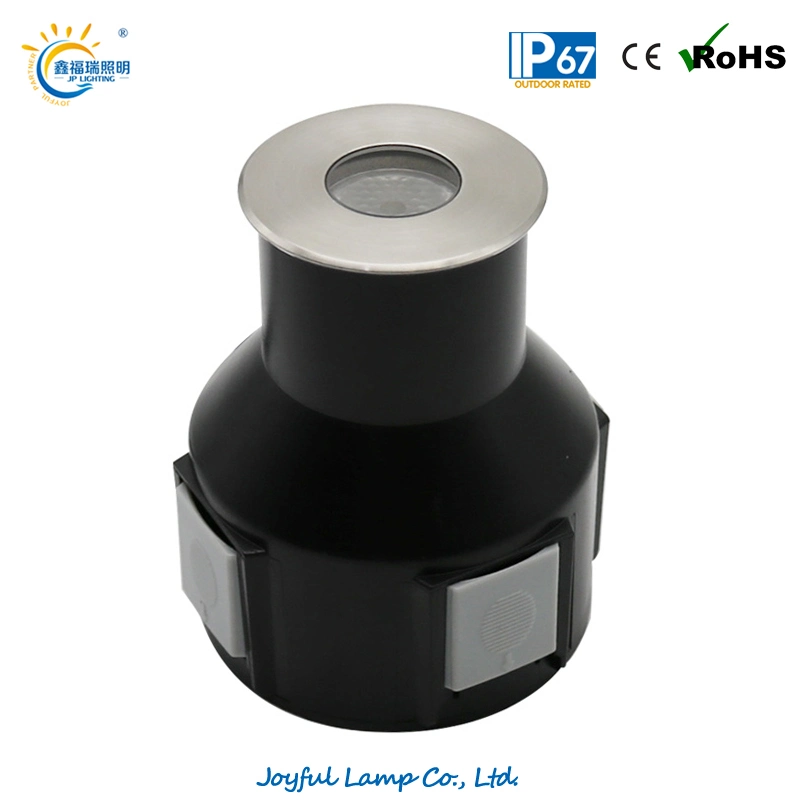

Stainless Steel LED Underground Light IP67 LED Deck Light 1W 2W 3W 4W LED Buried Light Dimmable Outdoor LED Up Light Square Ingroud Up Light for Architectural, Landscape Lighting.
Feature and Benefits:

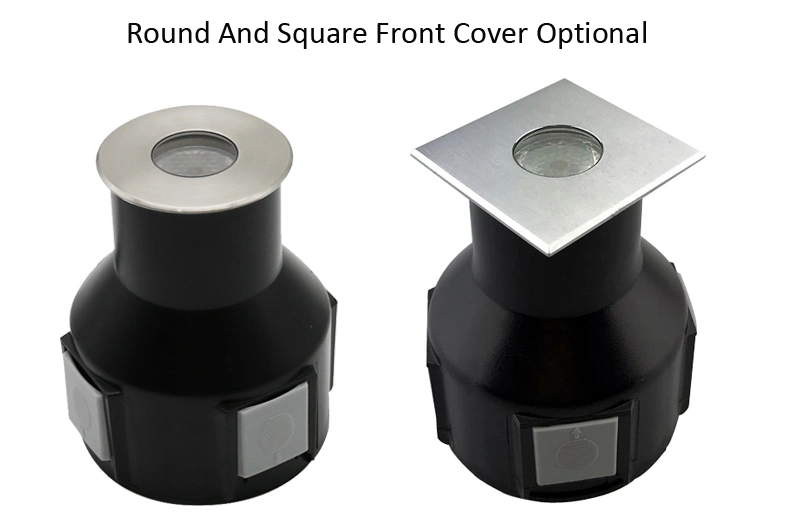

1. Small size with dimension dia. 55xH82mm/55x55*82mm;

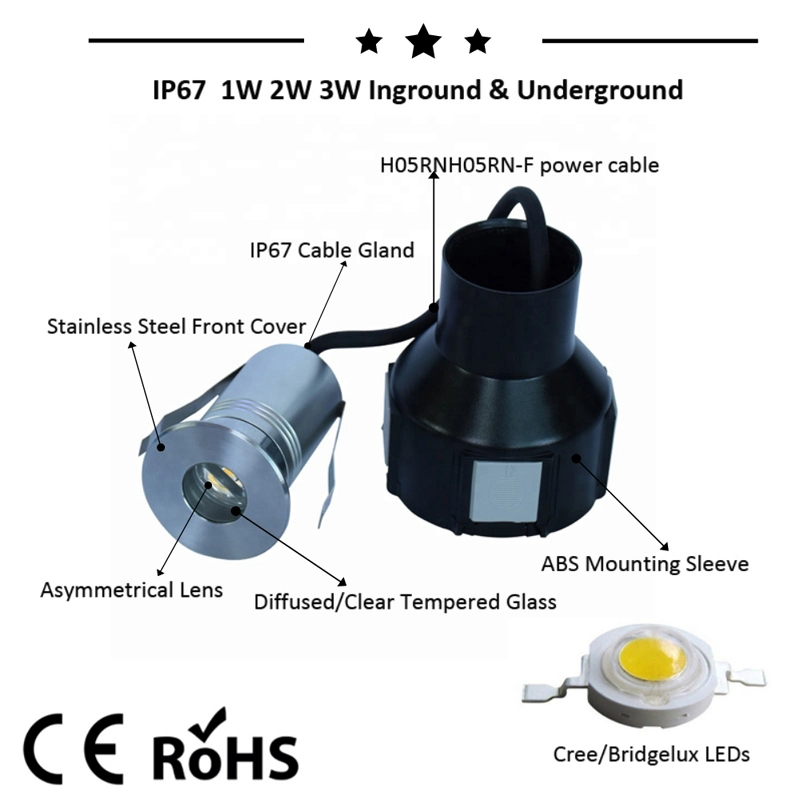

Main Specification:
Housing: Outdoor dark grey powder coated aluminum T=60-80um Adhesion of ISO class/ASTM class 4B
Front Cover: 304# or 316# Stainless Steel
LED Source: 1x0.5W/1x1W/1x2W Single color/1x3W RGB 3in1/1x4W RGB 4in1 Cree/Bridgelux LEDs,
Lens: Optical lens, efficiency ≥85%
Glass: Tempered step glass T=7mm
Gasket: Molding shaped silicone seal
Operating temperature: -10ºC to 40ºC
Power cable: H05RN-F 2x0.5mm2 L=0.5m (low voltage)
H05RN-F 3x0.75mm2 L=0.5m (Single color/high voltage)
H05RN-F 4x0.75mm2 L=0.5m (for RGB)
H05RN-F 5x0.75mm2 L=0.5m (for RGBW)
Mounting sleeve: ABS
Products Model:
Products Size (Unit: MM):

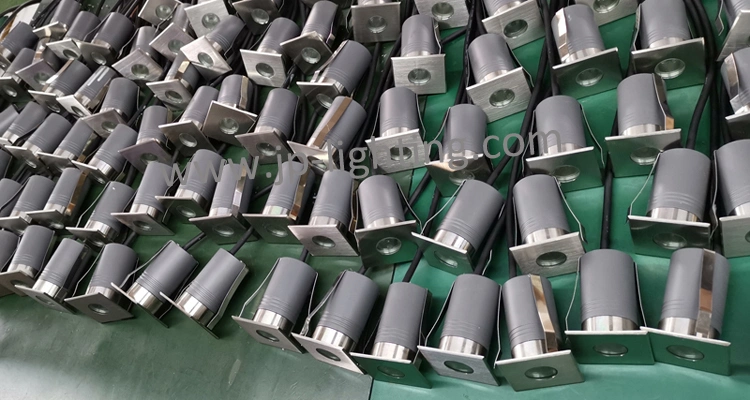

Products Picture:

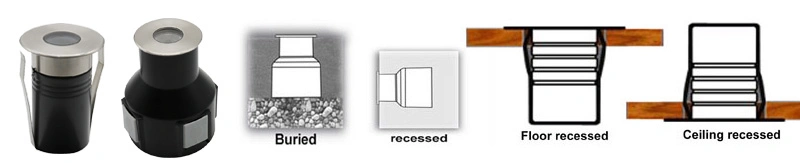

Products Installation:

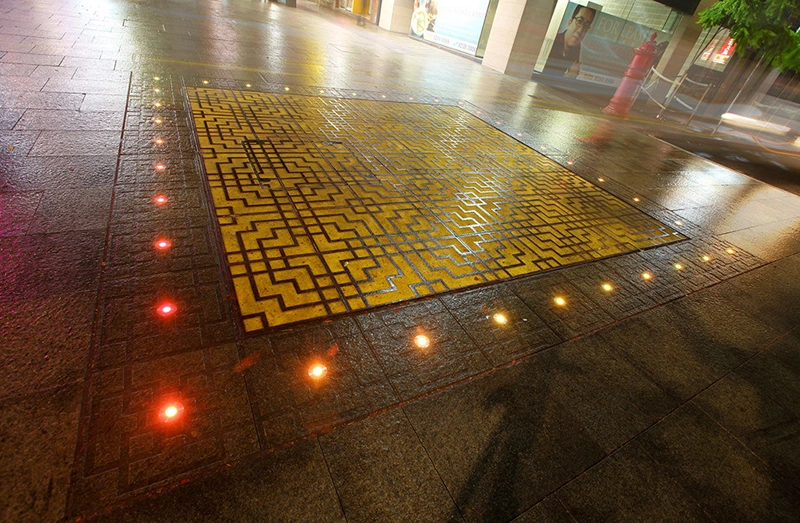

Application:
Used for Step, Stair,Garden, Corridor, Pathway, Road and other outdoor lighting.
FAQ
Are you a manufacturer?
Yes, We are a professional manufacturer with 15 years experience.
What is your main product?
1.Outdoor LED wall light
2.LED garden spot/spike light
3.LED inground light
4.LED underwater light(fountain light, swimming poool light, underwater spot light)
5.LED wall washer light
What is the company sample system?
1.Sample charge should prepaid.
2.Sample can be customized,If the order QTY is more than 1000Pcs.
How we can pay for?
1.30% advanced payment. 70% balance payment.
2.We accept L/C, T/T, Western Union, and Paypal.
3.Our shipping terms is EXW, FOB, CIF
How about the delivery time?
1.About 5 work days for sample making
2.15-30 work day for mass products production time. It is up to the quantity
What information should I let you know when I want to make a inquiry?
1.Which body color do you want?
2.What kind of light color do you prefer?
3.How long did you need about light cable?
4.Which voltage ( low voltage or high voltage)?
5.What kind of beam angle did you need?
6.How many quantity do you need?
Why choose us?
1.One-stop services: Innovative design, professional product light effect. Excellent product quality, sincere service concept. For exterior lighting provides an integrated, one-stop integrated lighting solution!
2.Experience R&D, production and sales team: We have an mature and experienced team. Some members have more than 15 years of work experience in the field of lighting. JP Lighting factory covers an area of 2,000 square meters and the annual sales of more thank $10 million.
3.Strict quality control process: JP lights use the high quality components. All material must be strictly screened. All JP lights will undergo strict testing before shipping, including integrating sphere testing, aging test, waterproof test, etc. Due to rich experience and professionalism, JP Lighting's product defect rate is strictly controlled within 1%.
4.Products worldwide with high reputation: We participate in various industry lighting exhibitions, our products are all over Asia, Europe, Oceania, Africa and Central and South America, Middle East. All products have got great comments for high quality and excellent service.
Feature and Benefits:
1. Small size with dimension dia. 55xH82mm/55x55*82mm;
2.1pcs 0.5w/1w/2w/3w RGB 3in1/4W RGBW 4in1 LED;
3. Input voltage 12/24VDC or 110/240VAC;
4. SUS 304/316 stainless steel front cover and aluminum lamp body;
5. Full area glass pressure capacity more than 1700KGs;

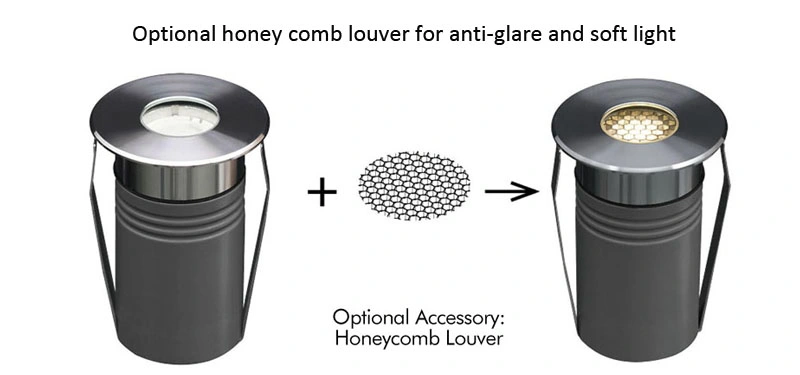

6. Diffused glass,Asymmetrical lens, honeycomb louver, concentric cell optional;
3. Input voltage 12/24VDC or 110/240VAC;
4. SUS 304/316 stainless steel front cover and aluminum lamp body;
5. Full area glass pressure capacity more than 1700KGs;
6. Diffused glass,Asymmetrical lens, honeycomb louver, concentric cell optional;
Main Specification:
Housing: Outdoor dark grey powder coated aluminum T=60-80um Adhesion of ISO class/ASTM class 4B
Front Cover: 304# or 316# Stainless Steel
LED Source: 1x0.5W/1x1W/1x2W Single color/1x3W RGB 3in1/1x4W RGB 4in1 Cree/Bridgelux LEDs,
Lens: Optical lens, efficiency ≥85%
Glass: Tempered step glass T=7mm
Gasket: Molding shaped silicone seal
Operating temperature: -10ºC to 40ºC
Power cable: H05RN-F 2x0.5mm2 L=0.5m (low voltage)
H05RN-F 3x0.75mm2 L=0.5m (Single color/high voltage)
H05RN-F 4x0.75mm2 L=0.5m (for RGB)
H05RN-F 5x0.75mm2 L=0.5m (for RGBW)
Mounting sleeve: ABS
Products Model:
| Item No. | Lighting Source | Lens beam angle (°) | Consumption(Watt) | Input Voltage(V) | IK Rate |
| 82511/82511S | 1x 1W LED | 8°/15°/25°/30°/45°/60°/asymmetrical lens | 1.2 | DC12V/DC24V | 08 |
| 82511H/82511SH | 1x 1W LED | 8°/15°/25°/30°/45°/60°/asymmetrical lens | 1.3 | AC100-240V | 08 |
| 82512/82512S | 1x 2W LED | 8°/15°/25°/30°/45°/60°/asymmetrical lens | 2.6 | DC12V/DC24V | 08 |
| 82512H/82512SH | 1x 3W LED | 8°/15°/25°/30°/45°/60°/asymmetrical lens | 3.2 | AC100-240V | 08 |
| 82516/82516S | 1x 3W RGB 3in1 LED | 8°/15°/30°/45°/60°/asymmetrical lens | 3.1 | DC12V/DC24V | 08 |
| D82517/D82517S | 1x SMD5630 LED | 120°(Diffused) | 0.5 | DC12V | 08 |
| 82519 | 1x 4W RGBW 4in1 LED | 25°/30°/45°/60° | 4.0 | DC12V/DC24V | 08 |

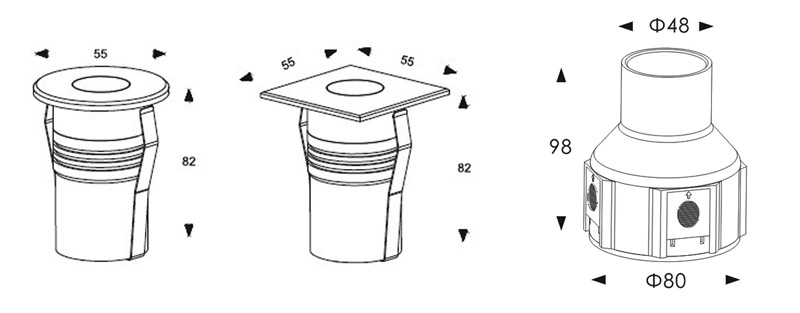

Products Size (Unit: MM):

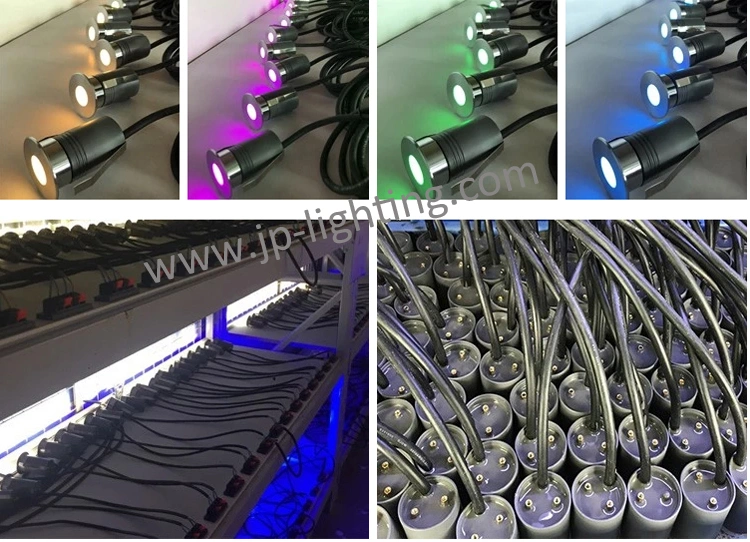

Products Picture:Products Installation:

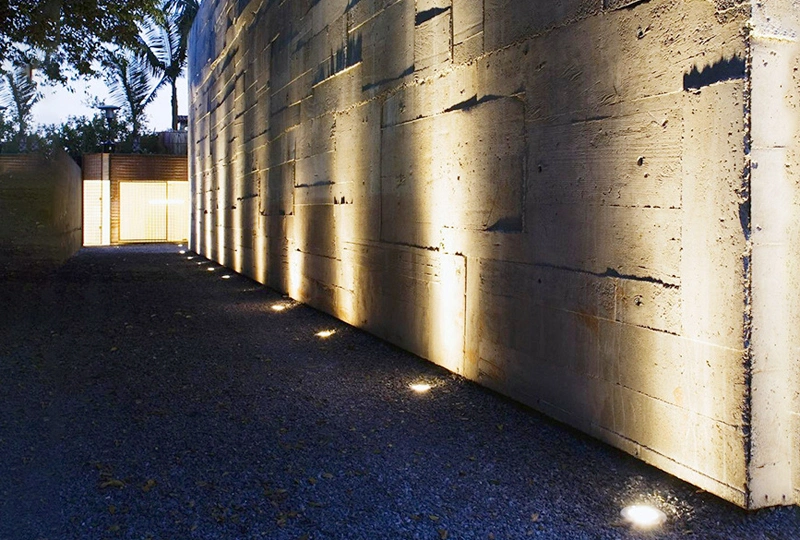

Application:
Used for Step, Stair,Garden, Corridor, Pathway, Road and other outdoor lighting.
