Project Lighting IP67 130lm/W MW Driver UFO LED High Bay Light

Technical SpecificationsSize: Ф290*H170, Ф340*H180, Ф400*H194MMLED type: Lumileds SMD3030, LM80 TM21 certified, Up to150lm/WDriver brand: Meanwell HBG series Power: 100W, 150W, 200W, 240W PF>0.95CRI> 80Material: 1060 pure aluminum, PC lens and stainless screws Working voltage: 100

Featured Products

Technical Specifications
Size: Ф290*H170, Ф340*H180, Ф400*H194MM
LED type: Lumileds SMD3030, LM80 TM21 certified, Up to150lm/W
Driver brand: Meanwell HBG series
Power: 100W, 150W, 200W, 240W
PF>0.95
CRI> 80
Material: 1060 pure aluminum, PC lens and stainless screws
Working voltage: 100-277V
Luminous Efficiency: 150LM/W
Color temperature: 3000K, 4000K, 5000K, 6000K, 6500K
Beam Angle: 60 /90/120°
Dimmable: 0-10V dimmable
Surface color: Black/White
IP Rating: IP65
Life-span: 50, 000 hours
Power100W150W200W240W
Power consumption100W±5W150W±5W200W±5W240W±5W
Input VoltageAC100-277VAC100-277VAC100-277VAC100-277V
Power Frequency50-60Hz50-60Hz50-60Hz50-60Hz
Output VoltageDC28.8-48VDC28.8-48VDC28.8-48VDC28.8-48V
Output Current2A(Constant Currrent)3.3A(Constant Currrent)4.8A(Constant Currrent)5.0A(Constant Currrent)
Luminous Flux13500LM(CCT=5000K)22500LM(CCT=5000K)27000LM(CCT=5000K)27000LM(CCT=5000K)
Fixture Material1060106010601060
LED TypeLumileds SMD3030
PowerSupplyMeanWell
System Efficacy150LM/W  (CCT=5000K)
CCT4000K, 5000K, 5700K, 6000K, 6500K
Beam Angle60 /90/120
CRI>80Ra
System Efficiency>90%
LED Junction Temperature<75ºC(Ta=30ºC)
Storage Temperature(-40~+70ºC)
Operating Temperature(-30~+50ºC)
Working Environment15-90%RH
Power Efficiency>93%
Power Factor>0.93
Total Harmonic Distortion<15%
Luminaire Net Weight3.2kg4.2kg5.5kg6.5kg
Package Size350*350*200mm400*400*215mm460*460*230mm460*460*230mm
CertificatesUL CU L DLC TUV-GS CB SAA RCM FCC CE RoHS
Life span>50000Hrs(Ta=30ºC  @L70)
Ingress ProtectionIP65
Quality Warranty5years
InstallationLifting, Tube, Wall Installation

Product Description
PF>0.95, CRI >80Ra, THD<15%
Anti-thunder: 4KV
IK Grade: IK10
Surge Protection: 10KV
LED Junction Temperature: ≤65°C
Working Temperature: -40ºC~+50ºC
Humidity: 10%~90%RH
Lumileds SMD3030, 150lm/w
Meanwell driver, 100-277VAC, 90-305V, 180-528V also available
Optional Function: DALI, 1-10V dimmable, daylight sensor, microwave sensor
Material: Pure aluminium 1060, Optical lens, stainless screws
Ideal mounting height: 8-15 m
Simple and elegant appearance, anodized housing, durable.
Unique UFO shape, lighter and smaller, no reflector, saving much freight cost.
Wide aluminium plate + large diameter PCB, heat dissipation fast and evenly.
All stainless screws prevent bad situation.
One-piece PC lens and high-quality silicone ring for excellent airtight effect, protecting from heavy rain and dust in tunnel lighting circumstances Certification: UL, cUL, DLC, TUV, GS, CB, SAA, FCC, CE, RoHS.
Warranty: 5 years

Product Advantages
UL Meanwell driver
Lumileds SMD3030, 150lm/w
Non-dimmable and dimmable are the same price
Adopted hydraulic technology of Pure aluminium 1060.
Chimney structure heat dissipation, air convection effect, good thermal management system, improving heat dissipation performance to long life time.

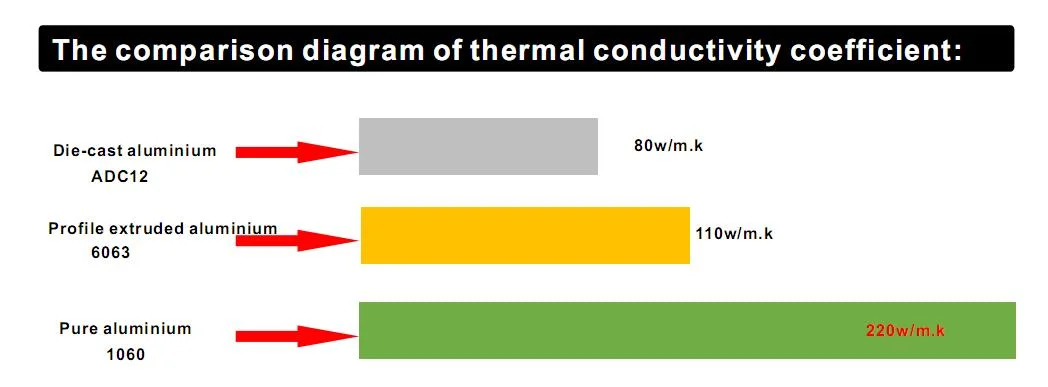

Pure aluminium is Hydraulic technology, thermal conductivity coefficient is 220W/m. k
The performance of thermal conductivity of Pure aluminium 1060 is faster 200% than profile extruded aluminium 6063.
The performance of thermal conductivity of Pure aluminium 1060 is faster 275% times than Die-cast aluminium ADC12.
Weight is light 3.2kg, saving much freight cost and high performance cost ratio.

Project Lighting IP67 130lm/W MW Driver UFO LED Highbay

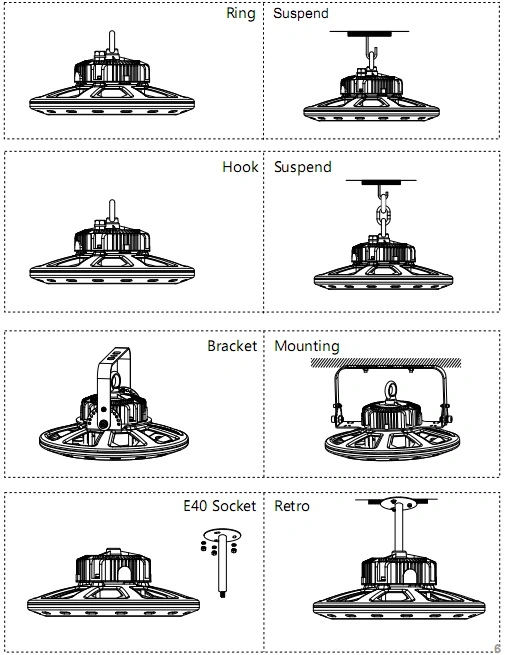

Installation: Loop & Hook hanging / Wall mount / Surface mount / Rack mount

Project Lighting IP67 130lm/W MW Driver UFO LED Highbay

Applications

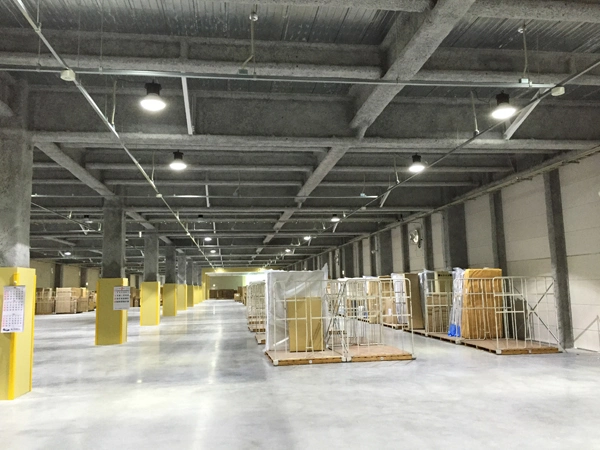

1. factories, industrial production workshop, warehouse;
2. gym, stadiums, golf courses,
3. commercial establishments, overpasses, outdoor advertising board, landmarks;
4. stage, yard, garden, lawn, park, plaza;

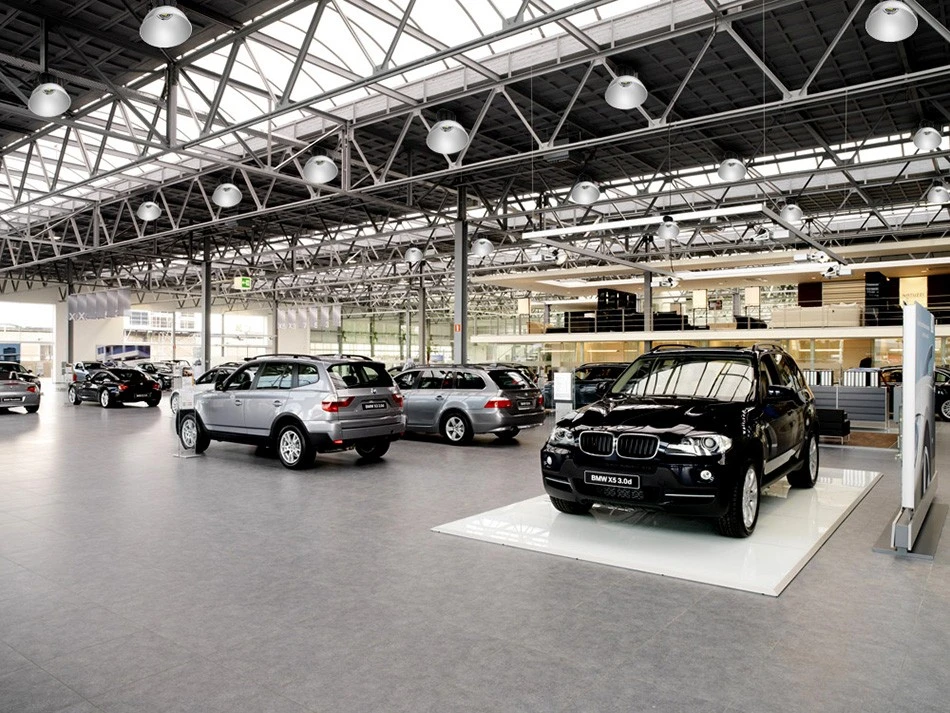

5. supermarket, shopping mall, exhibition hall;
6. ships, airports, subways, gas station, the train station, highway toll station, dock
7. factory, office, meeting room, conference hall, storeroom, etc.

Project Lighting IP67 130lm/W MW Driver UFO LED Highbay
Project Lighting IP67 130lm/W MW Driver UFO LED Highbay

User Manual:
Switch off power of the mains supply or respectively of the connection lead before doing any works.
Assembly must not damage or destroy conducting paths.
Make sure that the product is mounted on a stable, even and tilt-fixed background.
The complete installation must be done by an electrical expert who is familiar with the valid directives.

Quaity Control:

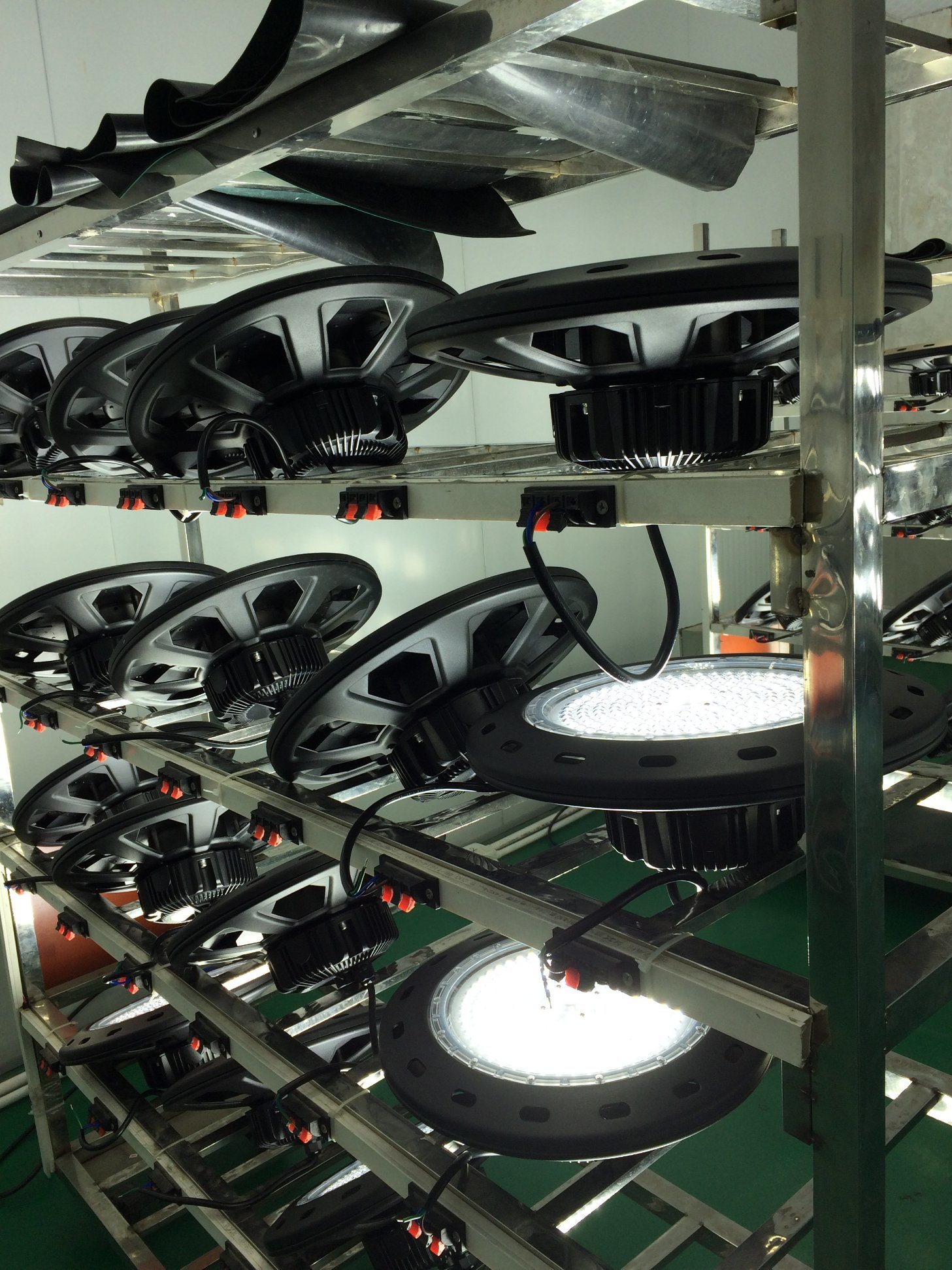

Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing

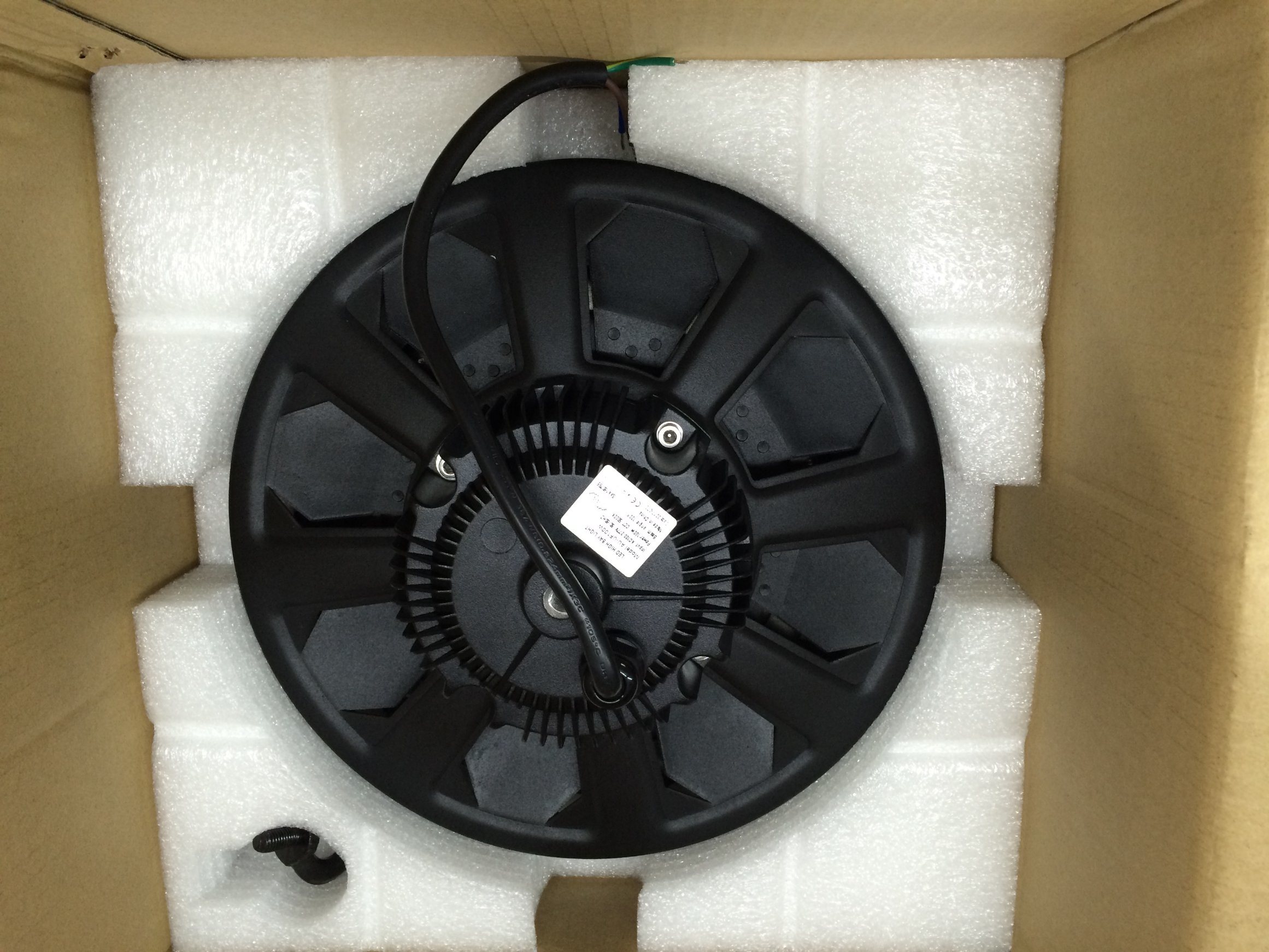

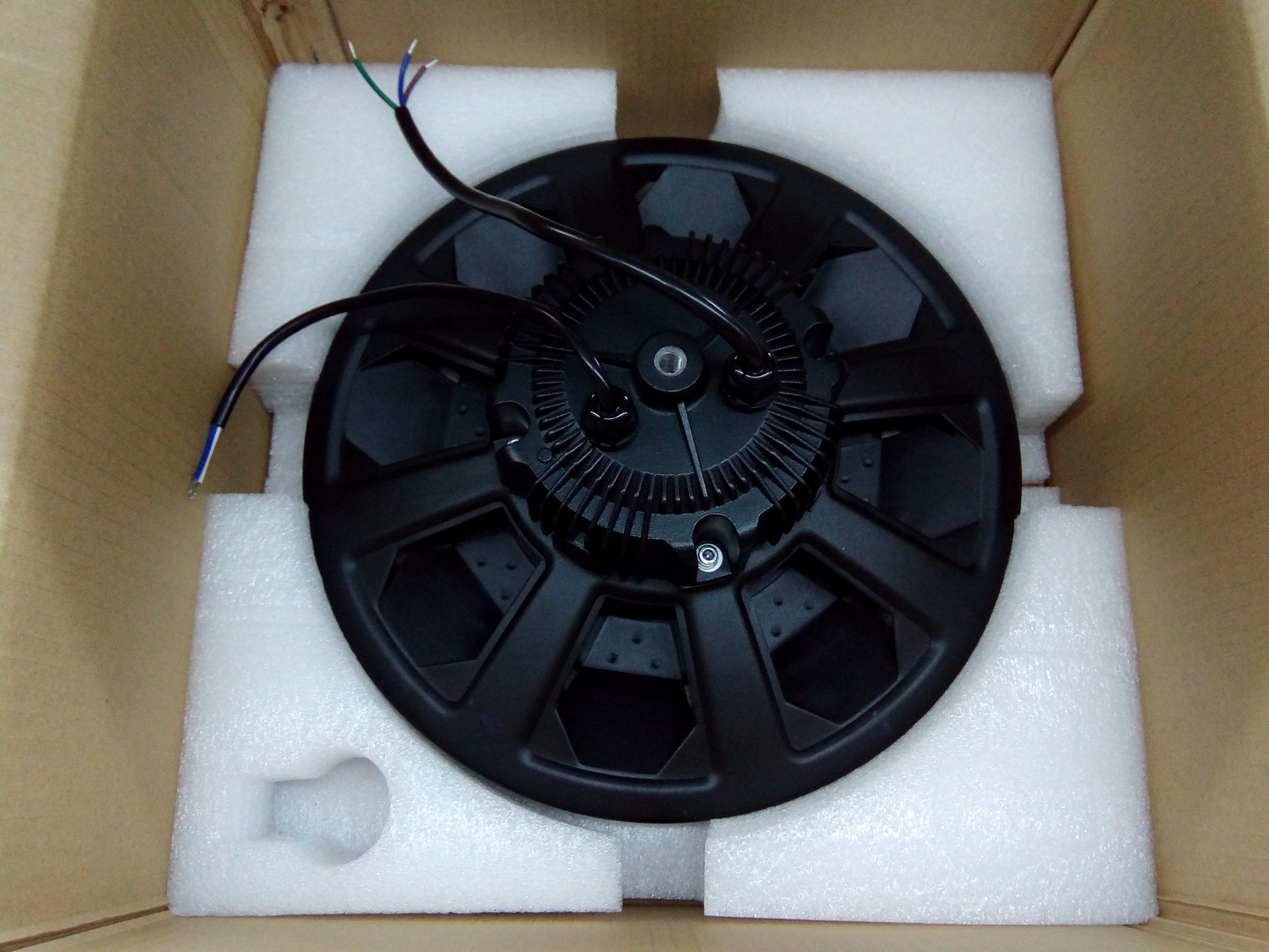

Drop TEST: make sure every single light have been well protected by box
