Product description
New design dmx winch dj led light uplights with low price
Thankyou for choosing our 250W High Output White LED. For your own safety,please read this manual before installing the device. This manual covers the important information on installation and applications. Please install and operate the fixture with following instructions. Meanwhile,pleasekeepthismanualwellforfutureneeds
The 250W High Output White LED is made of a new type of high temperature strength of engineering plastic and cast aluminum casing with nice outlook. The fixture is designed and manufactured strictly following CE standards, complying with international standard DMX512 protocol. It's available independently controlled and linkable with each other for operation. And it is applicable for large-scaleliveperformances,theater,studio,nightclubsanddiscos.

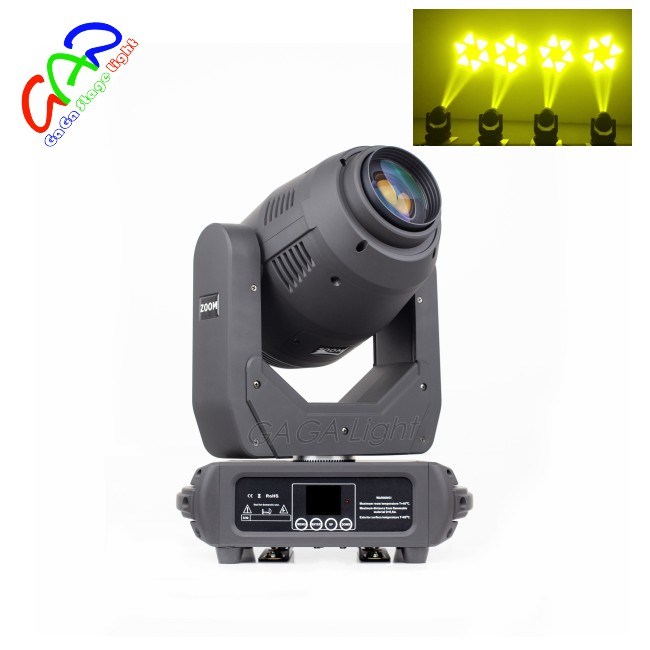

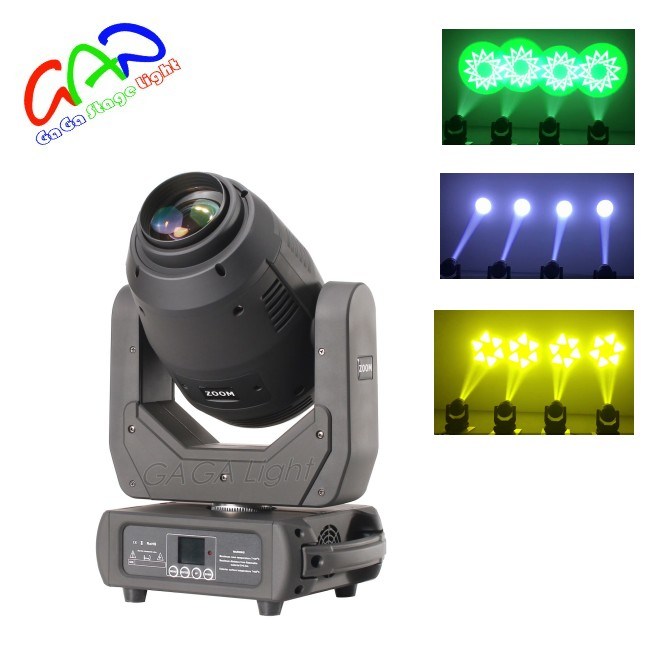

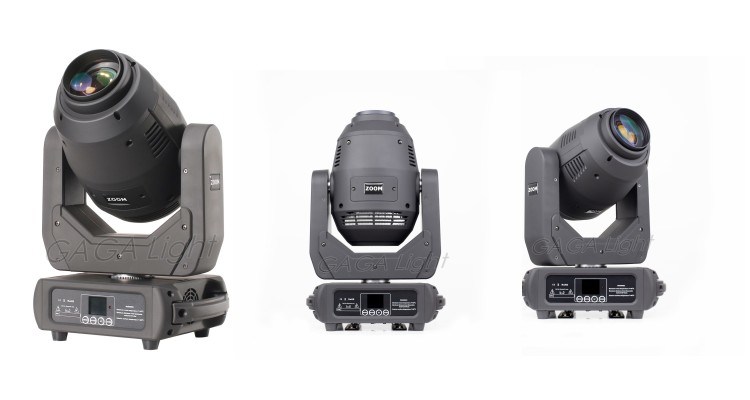

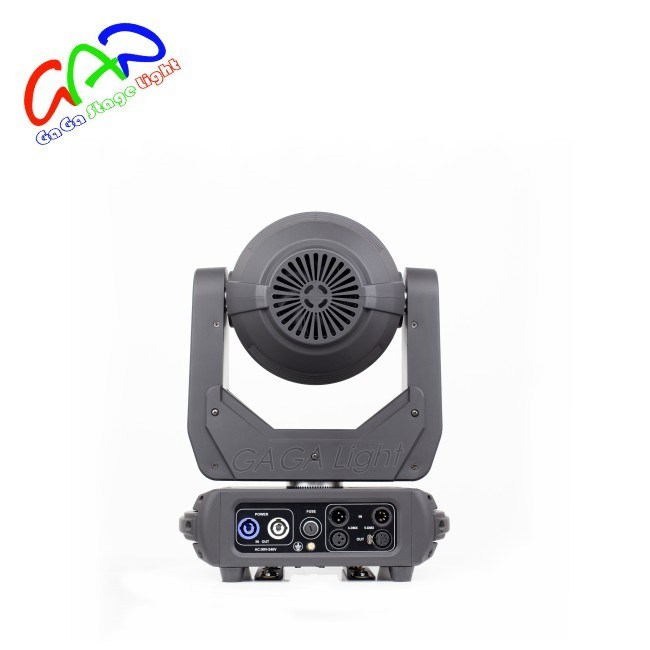

Detailed Images

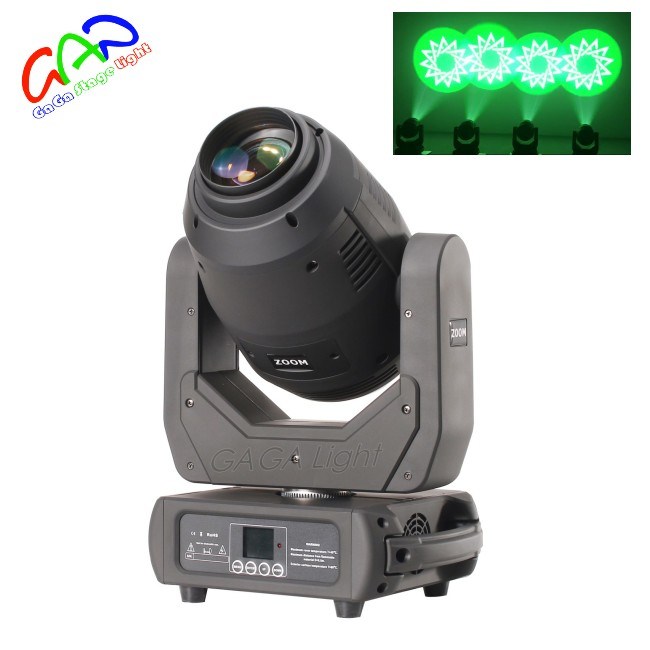

250W High Output White LED
* 50,000 hours lifespan and low power consumption
* Zoom angle 5°~30°, focus function
* High light output,13300LUX@5M at White light zoom in,
* 950LUX@5M at White light zoom out
* Temperature protect function, when the internal Temperature is up to 40° then the fans begin to work, when the internal
temperature is up to 70°and the brightness reduce half.
* Color Wheel: 7 colors +white, color fine tuning, rotation with variable direction and speed
* 1 Rotation Gobo Wheel: 7gobos + white, wheel rotation and shake
* 1 Static Gobo Wheel: 8 gobos + white, wheel rotation and shake
* Prism: 8-facet Prism, bi-directionalrotatable at variable speeds
* Frost effect
* High speed strobe effect with 1-25 flashers per second
* Internal program available
* 16/18DMX Channels USITT DMX-512
* DMX 512, master-slave and sound activated controllable or auto operation
* Colorful LCD display
* Efficient low noise fan cooling system
* PowerConIN/OUT
* 3-pin & 5-pin XLR connectors IN/OUT
* Two 1/4 turn fastening Omega Clamps
* IP 20 protection rating
Specifications
Input Voltage: AC90-260V 50/60Hz
Light Source: 250W High Output White LED
Control Signal: DMX 512, master-slave and sound activated or auto operation
Control Channel: 16/18 DMX Channels USITT DMX-512
Power Consumption: 350W
Dimensions: 320(L)*220(W)*480(H)mm
Packing size: 365(L)*280(W)*600(H)mm
Net Weight: 13.50kg,Gross Weight: 16.50kg
Effect showing
Company Introduction
Certificate
Exhibition
