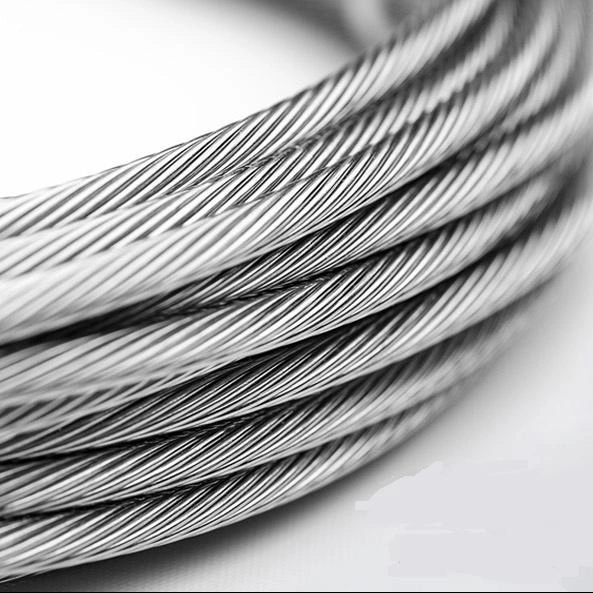

2mm Diameter 304 1X19 Stainless Steel Cable Manufacturer China
Tianli Stainless Steel offers a complete line of stainless steel wire rope cable for marine, industrial and architectural applications.
All of our stainless steel wire cable is made from 316 (1.4401 A4) and 304 (1.4301 A2) stainless steel.
Our wire rope product line also includes both Black Nylon Coated Wire & White Nylon Coated Wire & Clear Nylon Coated Wire.
We also offer a complete line of Wire Rope Accessories including Thimbles, Turnbuckles, Clips, Sleeves, Swage Turnbuckles & Terminals.
Our stainless steel wire rope cable will meet and exceed your expectations.

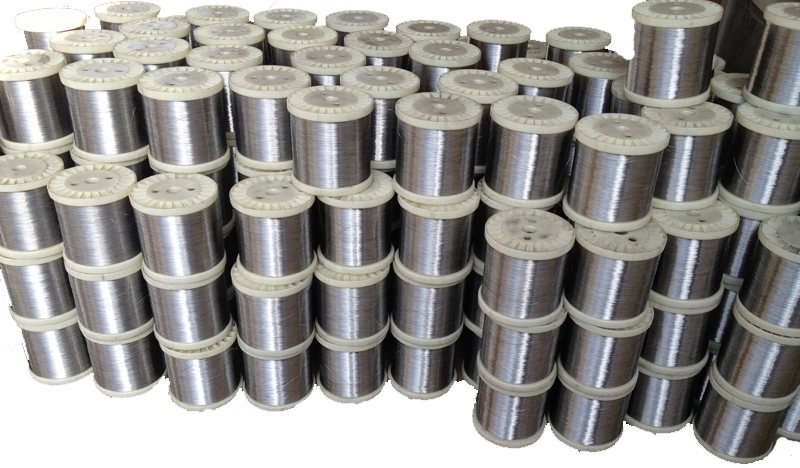

Our stainless steel wire rope cable can be supplied on a spool or cut to your specific request.
common wire rope cable type we supply:
1x7 1x19 1x37
7x7 7x19 7x37
6x7+FC/PP 6x19+FC/PP/WSC/IWS/IWRC 6x19S
6X36WS+IWRC/FC 6X37+FC/IWRC

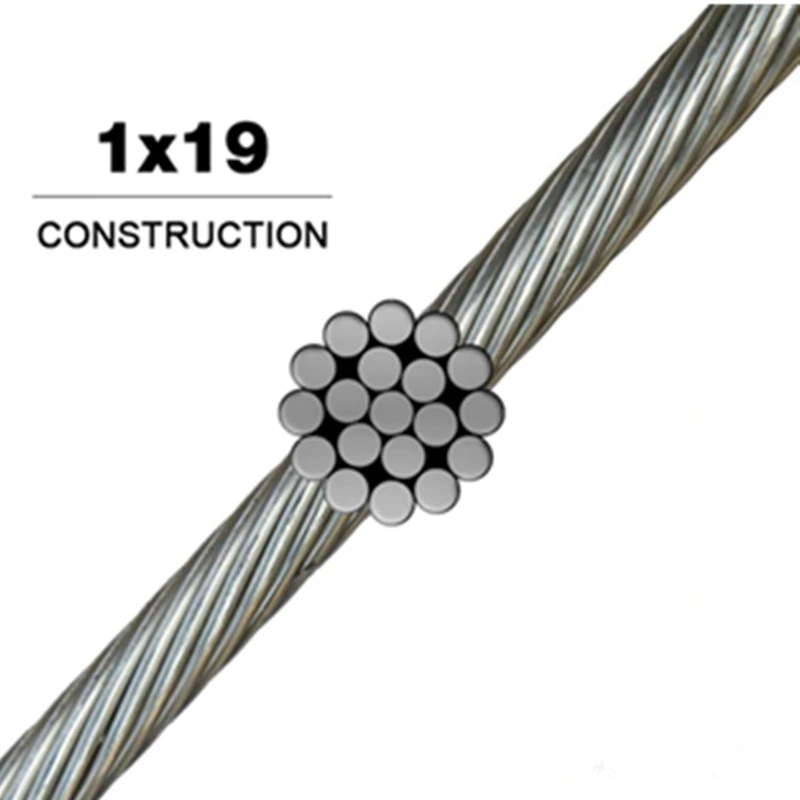

1x19 Stainless Steel Wire Rope Specification:
inch mm convert table ( 1 ft =12 inch ; 1 inch = 25.4 mm ) :
Stainless steel wire rope mesh Features
1. Stainless steel wire rope mesh net,decorative metal fence fabric
2. Unique design idea
3. Flexiable, elegant, discreet, filigreed, multfunctional.
4 Light in weight
5. Corrosion resistant, allow heavy airflow
6. Pro-environment, recyclable,no toxic,noe-flammable.
7. Once was installed, don't ask for any special cleaning or coating
Tianli Stainless Steel offers a complete line of stainless steel wire rope cable for marine, industrial and architectural applications.
All of our stainless steel wire cable is made from 316 (1.4401 A4) and 304 (1.4301 A2) stainless steel.
Our wire rope product line also includes both Black Nylon Coated Wire & White Nylon Coated Wire & Clear Nylon Coated Wire.
We also offer a complete line of Wire Rope Accessories including Thimbles, Turnbuckles, Clips, Sleeves, Swage Turnbuckles & Terminals.
Our stainless steel wire rope cable will meet and exceed your expectations.
Our stainless steel wire rope cable can be supplied on a spool or cut to your specific request.
common wire rope cable type we supply:
1x7 1x19 1x37
7x7 7x19 7x37
6x7+FC/PP 6x19+FC/PP/WSC/IWS/IWRC 6x19S
6X36WS+IWRC/FC 6X37+FC/IWRC
1x19 Stainless Steel Wire Rope Specification:
| Structure | Rope diameter mm | Approximate Weight kg/1000m | Min. Breaking Strength N | Min. Breaking Strength kg |
| 1x19 | 0.6 | 1.8 | 343 | 35 |
| 0.7 | 2.45 | 470.4 | 48 | |
| 0.8 | 3.2 | 617.4 | 63 | |
| 0.9 | 4.05 | 774.2 | 79 | |
| 1 | 5 | 950.6 | 97 | |
| 1.2 | 7.2 | 1274 | 130 | |
| 1.5 | 11.25 | 2254 | 230 | |
| 1.6 | 12.8 | 2597 | 265 | |
| 1.8 | 16.2 | 3200 | 327 | |
| 2 | 20 | 3822 | 390 | |
| 2.4 | 28.8 | 4800 | 490 | |
| 2.5 | 31.25 | 5586 | 570 | |
| 3 | 45 | 8000 | 816 | |
| 3.5 | 61.25 | 9310 | 950 | |
| 4 | 80 | 12740 | 1300 | |
| 5 | 125 | 18900 | 1929 | |
| 6 | 180 | 26000 | 2653 | |
| 8 | 320 | 45000 | 4592 | |
| 10 | 500 | 72000 | 7347 | |
| 12 | 720 | 101000 | 10306 | |
| other size and structure available | ||||
inch mm convert table ( 1 ft =12 inch ; 1 inch = 25.4 mm ) :
| inch | mm | inch | mm | inch | mm | inch | mm | ||||||||||||||||
| 1/2 | 0.5 | 12.7 | 3/32 | 0.09375 | 2.381 | 3/64 | 0.046875 | 1.191 | 35/64 | 0.546875 | 13.891 | ||||||||||||
| 1/4 | 0.25 | 6.35 | 5/32 | 0.15625 | 3.969 | 5/64 | 0.078125 | 1.984 | 37/64 | 0.578125 | 14.684 | ||||||||||||
| 3/4 | 0.75 | 19.05 | 7/32 | 0.21875 | 5.556 | 7/64 | 0.109375 | 2.778 | 39/64 | 0.609375 | 15.478 | ||||||||||||
| 1/8 | 0.125 | 3.175 | 9/32 | 0.28125 | 7.144 | 9/64 | 0.140625 | 3.572 | 41/64 | 0.640625 | 16.272 | ||||||||||||
| 3/8 | 0.375 | 9.525 | 11/32 | 0.34375 | 8.731 | 11/64 | 0.171875 | 4.366 | 43/64 | 0.671875 | 17.066 | ||||||||||||
| 5/8 | 0.625 | 15.875 | 13/32 | 0.40625 | 10.319 | 13/64 | 0.203125 | 5.159 | 45/64 | 0.703125 | 17.859 | ||||||||||||
| 7/8 | 0.875 | 22.225 | 15/32 | 0.46875 | 11.906 | 15/64 | 0.234375 | 5.953 | 47/64 | 0.734375 | 18.653 | ||||||||||||
| 1/16 | 0.0625 | 1.588 | 17/32 | 0.53125 | 13.494 | 17/64 | 0.265625 | 6.747 | 49/64 | 0.765625 | 19.447 | ||||||||||||
| 3/16 | 0.1875 | 4.763 | 19/32 | 0.59375 | 15.081 | 19/64 | 0.296875 | 7.541 | 51/64 | 0.796875 | 20.241 | ||||||||||||
| 5/16 | 0.3125 | 7.938 | 21/32 | 0.65625 | 16.669 | 21/64 | 0.328125 | 8.334 | 53/64 | 0.828125 | 21.034 | ||||||||||||
| 7/16 | 0.4375 | 11.113 | 23/32 | 0.71875 | 18.256 | 23/64 | 0.359375 | 9.128 | 55/64 | 0.859375 | 21.828 | ||||||||||||
| 9/16 | 0.5625 | 14.288 | 25/32 | 0.78125 | 19.884 | 25/64 | 0.390625 | 9.922 | 57/64 | 0.890625 | 22.622 | ||||||||||||
| 11/16 | 0.6875 | 17.463 | 27/32 | 0.84375 | 21.431 | 27/64 | 0.421785 | 10.716 | 59/64 | 0.921875 | 23.416 | ||||||||||||
| 13/16 | 0.8125 | 20.638 | 29/32 | 0.90625 | 23.019 | 29/64 | 0.453125 | 11.509 | 61/64 | 0.953125 | 24.209 | ||||||||||||
| 15/16 | 0.9375 | 23.813 | 31/32 | 0.96875 | 24.606 | 31/64 | 0.484375 | 12.303 | 63/64 | 0.984375 | 25.003 | ||||||||||||
| 1/32 | 0.03125 | 0.794 | 1/64 | 0.01562 | 0.397 | 33/64 | 0.515625 | 13.097 | 64/64 | 1 | 25.4 | ||||||||||||
| Chemical Composition of common Stainless Steel Grades | ||||||||
| % | ||||||||
| Component | C | Si | Mn | P | S | Cr | Ni | Mo |
| 304 | MAX 0.08 | MAX 1.00 | MAX 2.00 | MAX 0.045 | MAX 0.03 | 17.00-19.00 | 8.00-10.00 | |
| 304L | MAX 0.03 | MAX 1.00 | MAX 2.00 | MAX 0.045 | MAX 0.03 | 18.00-20.00 | 8.00-10.00 | |
| 316 | MAX 0.08 | MAX 1.00 | MAX 2.00 | MAX 0.045 | MAX 0.03 | 16.00-18.00 | 10.00-14.00 | 2.00-3.00 |
| 316L | MAX 0.03 | MAX 1.00 | MAX 2.00 | MAX 0.045 | MAX 0.03 | 16.00-18.00 | 12.00-15.00 | 2.00-3.00 |
Stainless steel wire rope mesh Features
1. Stainless steel wire rope mesh net,decorative metal fence fabric
2. Unique design idea
3. Flexiable, elegant, discreet, filigreed, multfunctional.
4 Light in weight
5. Corrosion resistant, allow heavy airflow
6. Pro-environment, recyclable,no toxic,noe-flammable.
7. Once was installed, don't ask for any special cleaning or coating
