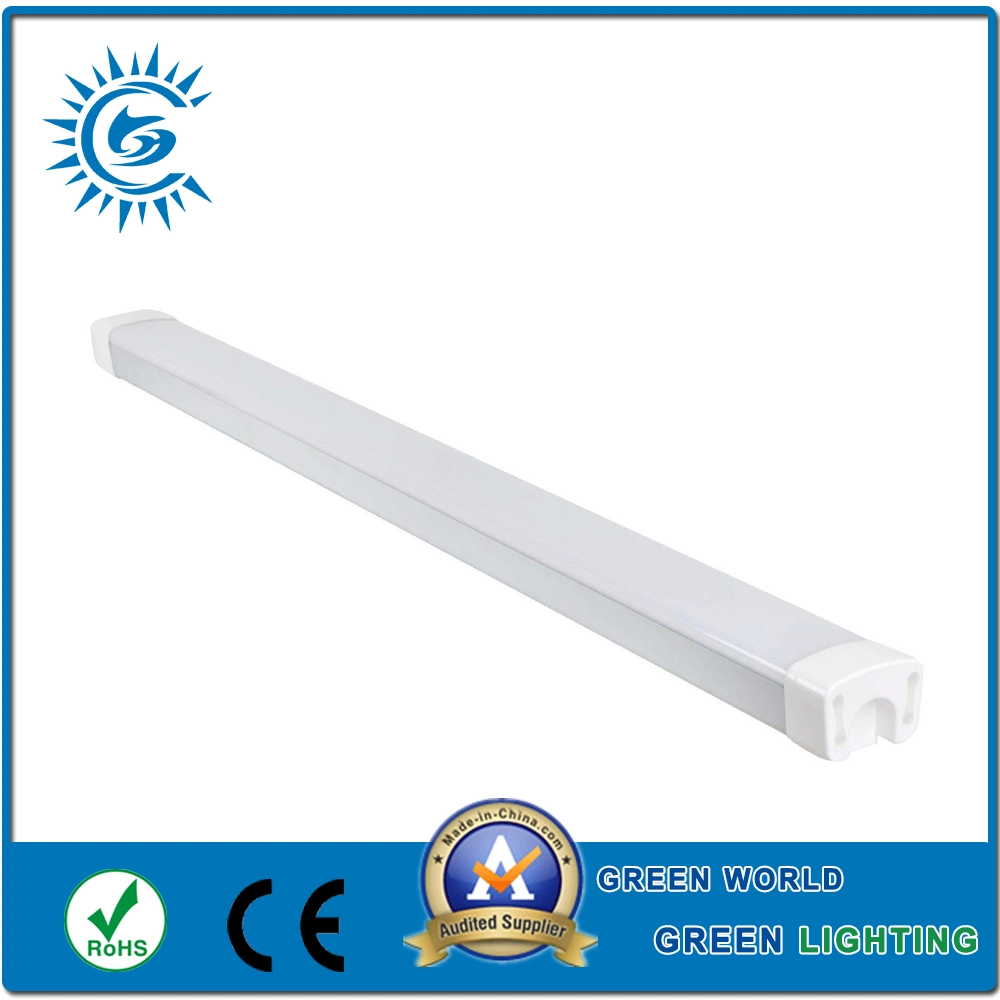

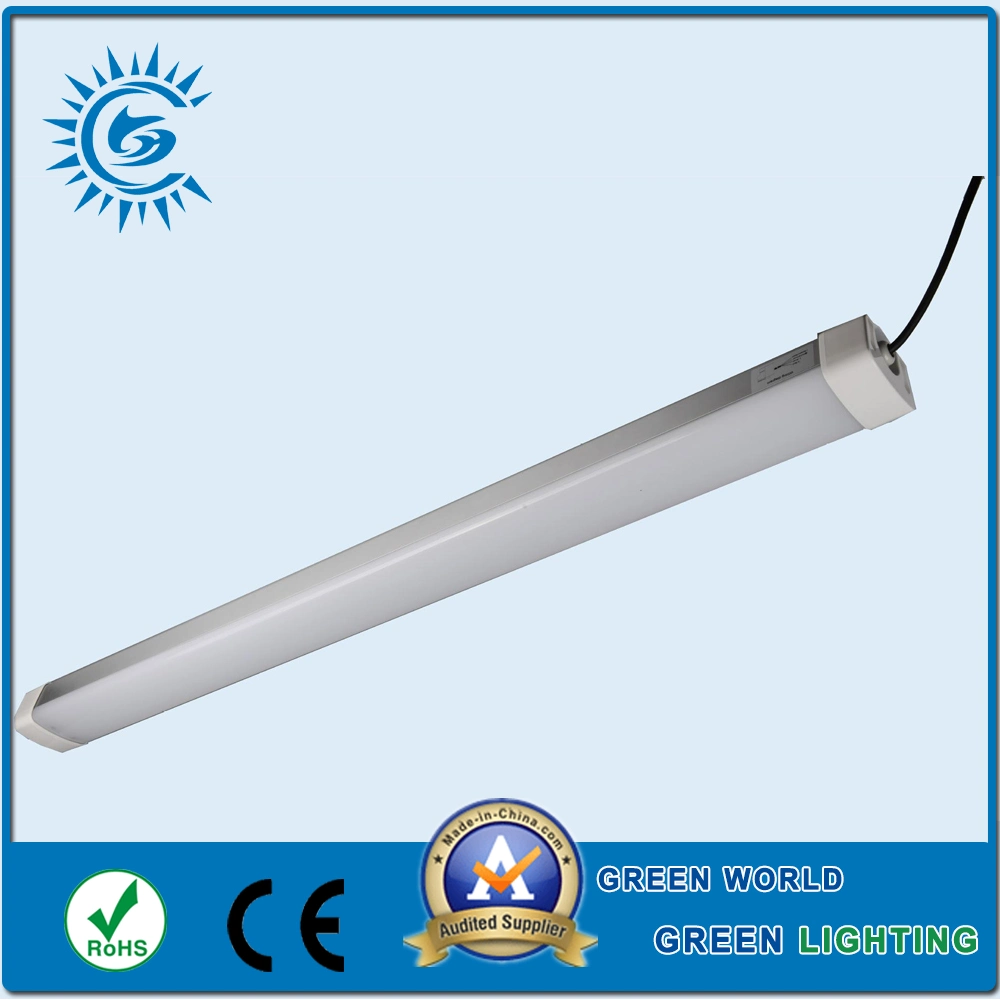

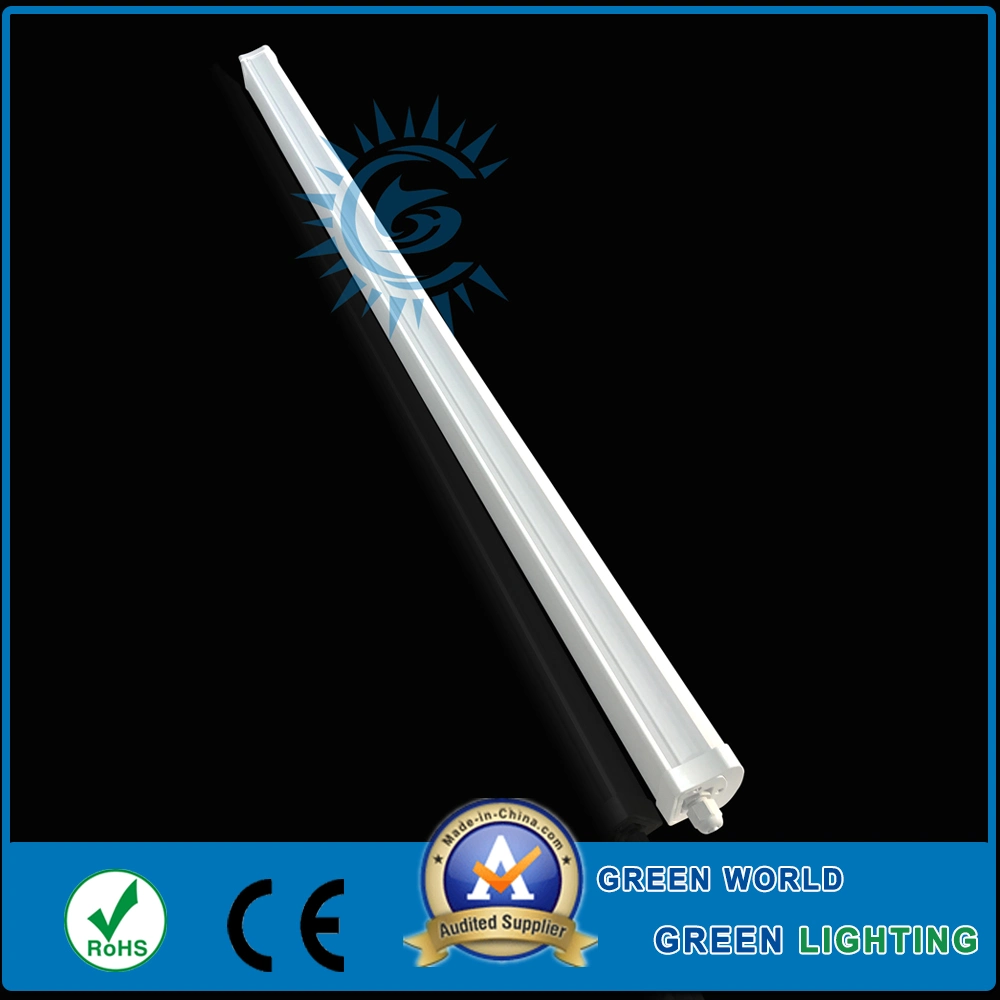

IP65 LED Linear Lighting Fixture Tri-proof LED Light

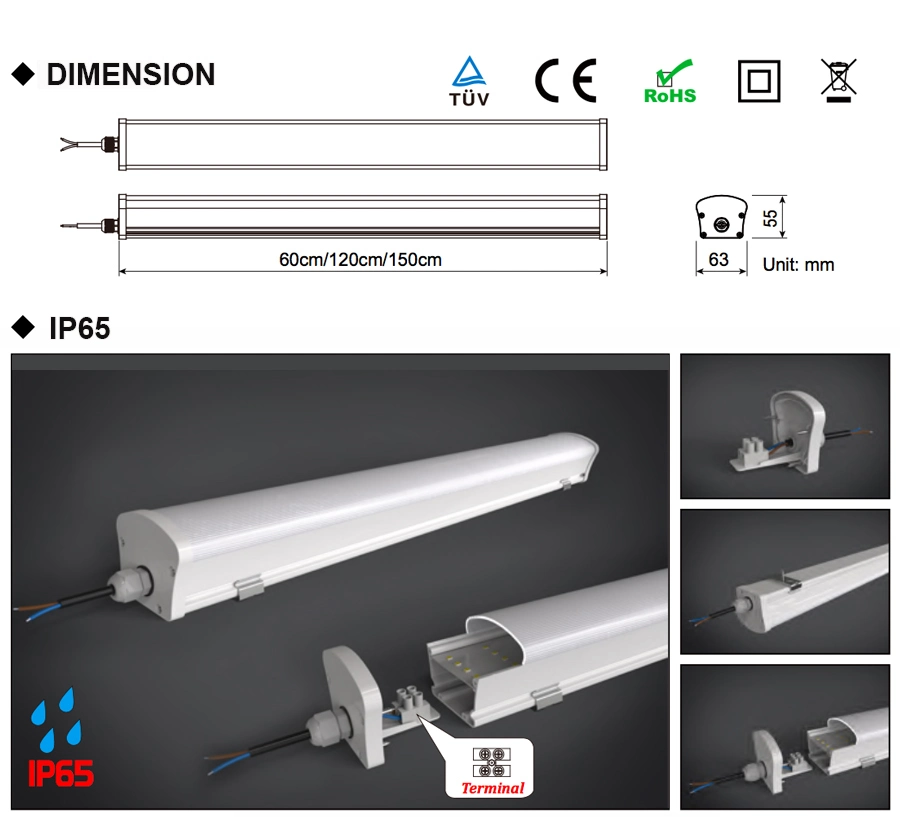

 PRODUCT SPECIFICATIONModel No.YL15-15W-630YL15-24W-630YL15-20W-1230YL15-36W-1230Size(LxWxH)600x65x55mm1200x63x55mmLED TypeSMD2835/3V/150mA/0.5WInput Voltage/Frequency110V-240V 50Hz/60HzRated Power ±10%18W20W36W40WPower Factor>0.9LM ±10%1500250020503800CCT2700K-6500KCRI(Ra)>80Working temperatur

Featured Products

Model No.YL15-15W-630YL15-24W-630YL15-20W-1230YL15-36W-1230
LED TypeSMD2835/3V/150mA/0.5W
Input Voltage/Frequency110V-240V 50Hz/60Hz
Rated Power ±10%18W20W36W40W
Power Factor>0.9
LM ±10%1500250020503800
Working temperature-15ºC--- +35ºC
Environment-25ºC--- +60ºC
 Innerbox Size(LxWxH)655*68*60mm1250*68*60mm
Carton Size(LxWxH)618*310*227mm  1218*235*227mm
IP65 LED Linear Lighting Fixture Tri Proof LED Light
IP65 LED Linear Lighting Fixture Tri Proof LED Light
IP65 LED Linear Lighting Fixture Tri Proof LED Light

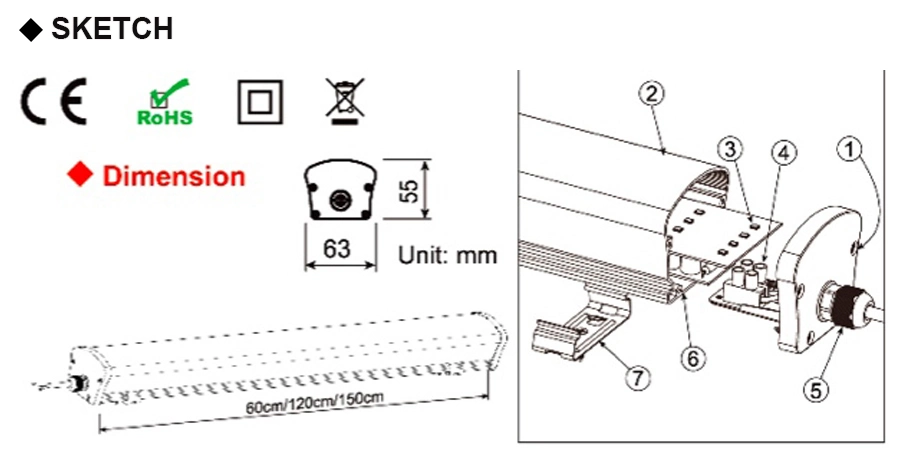

1.Use stainless steel screws.
2.Clear or milky PC cover for option,Milky PC cover with light guide materical inside to improver light transmittance,beautiful,no dazzling ,no glare.
3.Light source with SMD 2835,high lumen and long lifetime.
4.With terminal block inside inside,easy for the wiring connecttion,more safe.
5.Using cable gland.
6.Power supply built in.

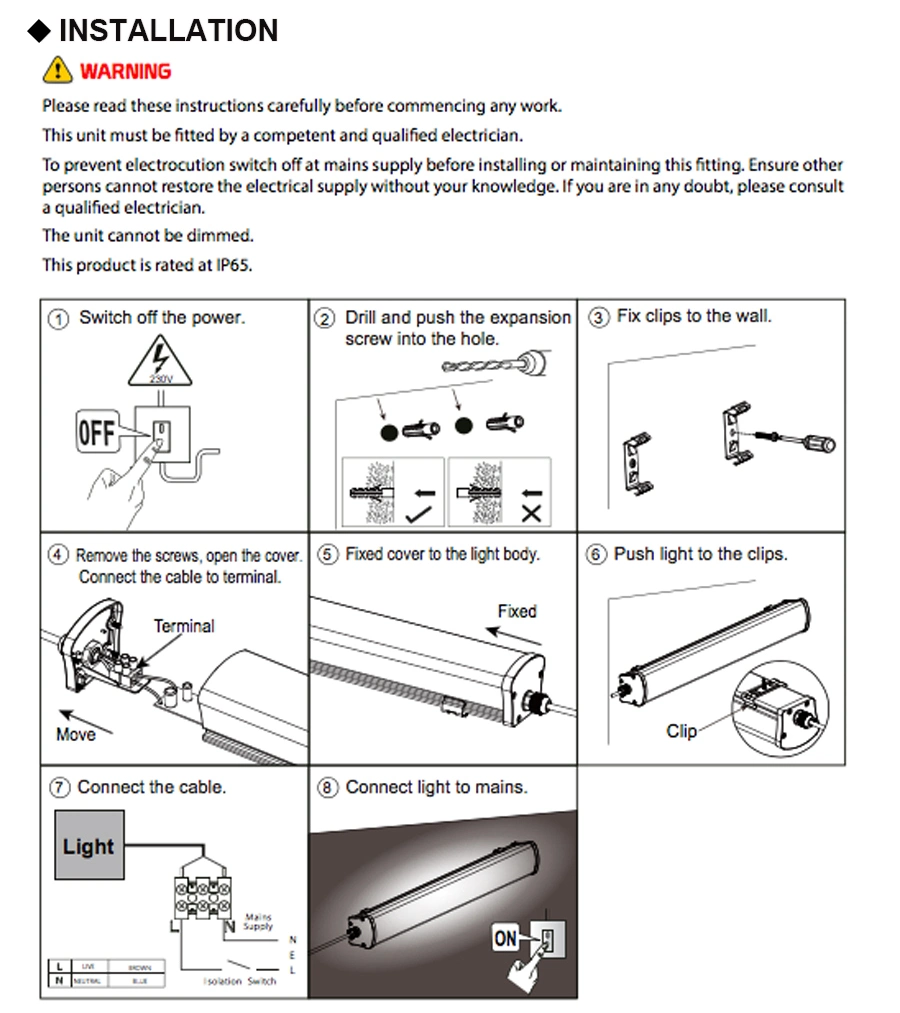

7.Using stainless steel clips, more esasy for installation and maintenance.

IP65 LED Linear Lighting Fixture Tri Proof LED Light

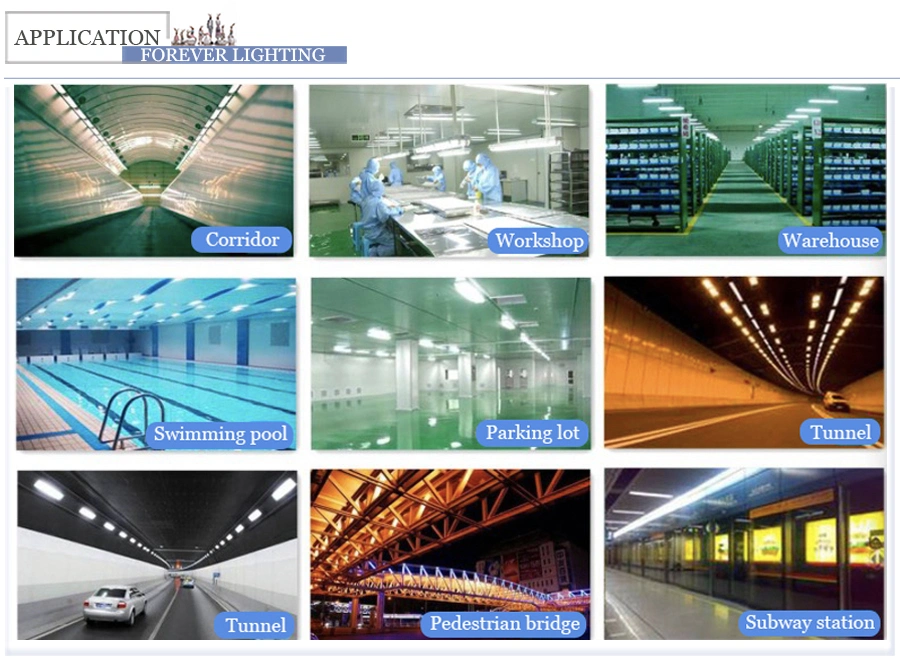

1. factories, industrial production workshop, warehouse;
2. gym, stadiums, golf courses,
3. commercial establishments, overpasses, outdoor advertising board, landmarks;
4. stage, yard, garden, lawn, park, plaza;
5. supermarket, shopping mall, exhibition hall;
6. ships, airports, subways, gas station, the train station, highway toll station, dock
7. factory, office, meeting room, conference hall, storeroom, etc.

IP65 LED Linear Lighting Fixture Tri Proof LED Light
IP65 LED Linear Lighting Fixture Tri Proof LED Light

IP65 LED Linear Lighting Fixture Tri Proof LED Light

Your inquiry related to our products or prices will be replied in 24hrs.
Well trained and passional sales & after-sales staff answer your questions in English
OEM and customized made service is available for both product and packing
Experienced R&D engineers and technicians are able do ODM projects

Q: Are you factory direct?

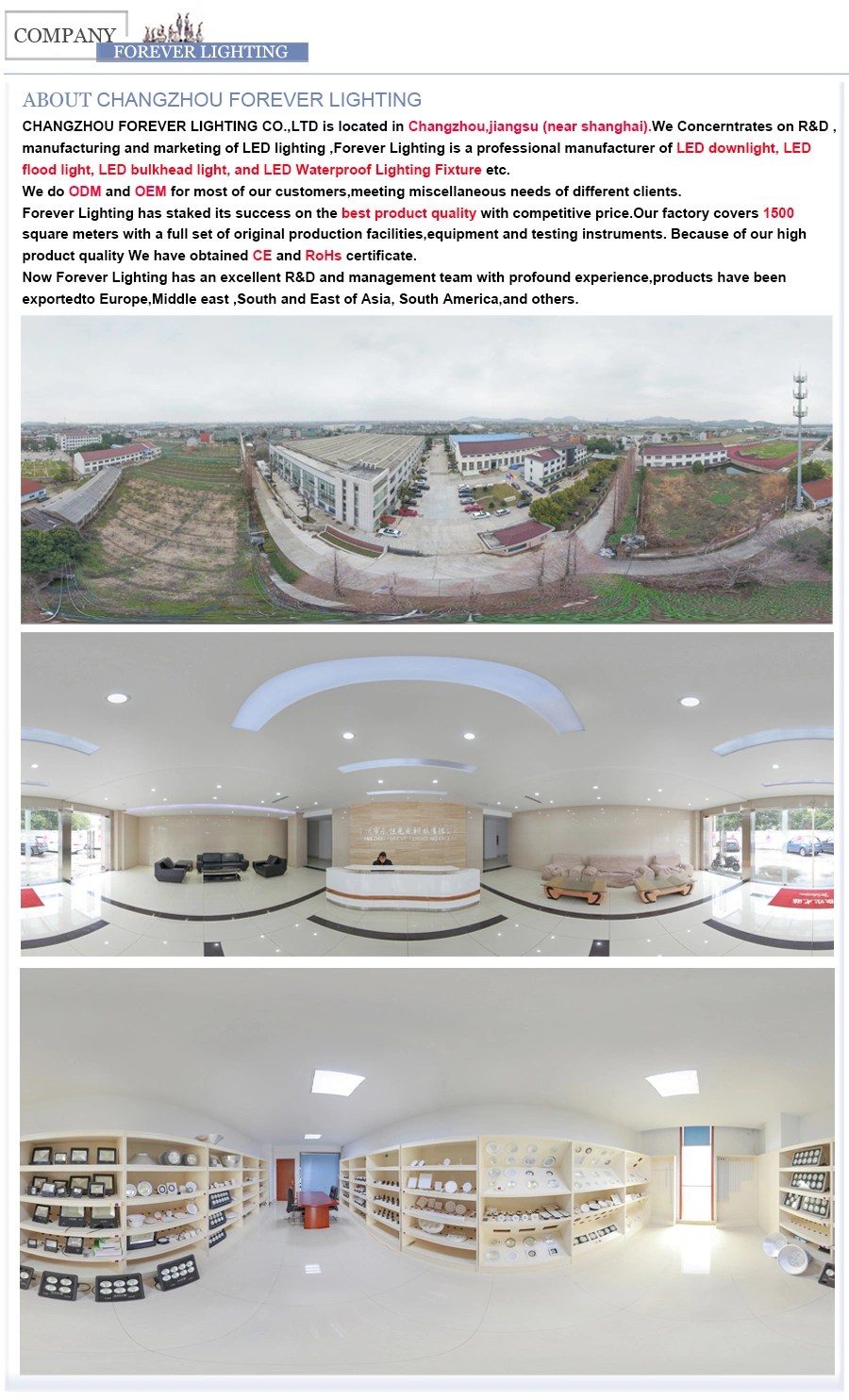

A:Forever Lighting as a professional led lighting manufacturer, main products incl. LED downlight , LED water proof light, LED linear light, LED bulkhead light LED panel light, and LED lamps. Our products are mainly exported to Europe, Australia, South America, etc.

Q:Do you have a special price and service for wholesale?
A:Forever  Lighting is keeping search a long term business cooperation with our clients,  As a
professional led lighting manufacturer, we can OEM &ODM for our cilents, fully support and assist on service, to offer you the most competitive price with high quality product is our responsible.

Q:How long does it take for my order to be shipped? And how long can I receive it?
A: Samples can be available within 5-7 working days.
B: Mass order: 30-35 days after 30% deposit received.

Q: How about the warranty?
Forever Lighting offer 2 and 5 years warranty. All products are gone through strict test by our experienced QC before shipment. During in warranty time, if any quality problem, we will be fully responsible for it.
