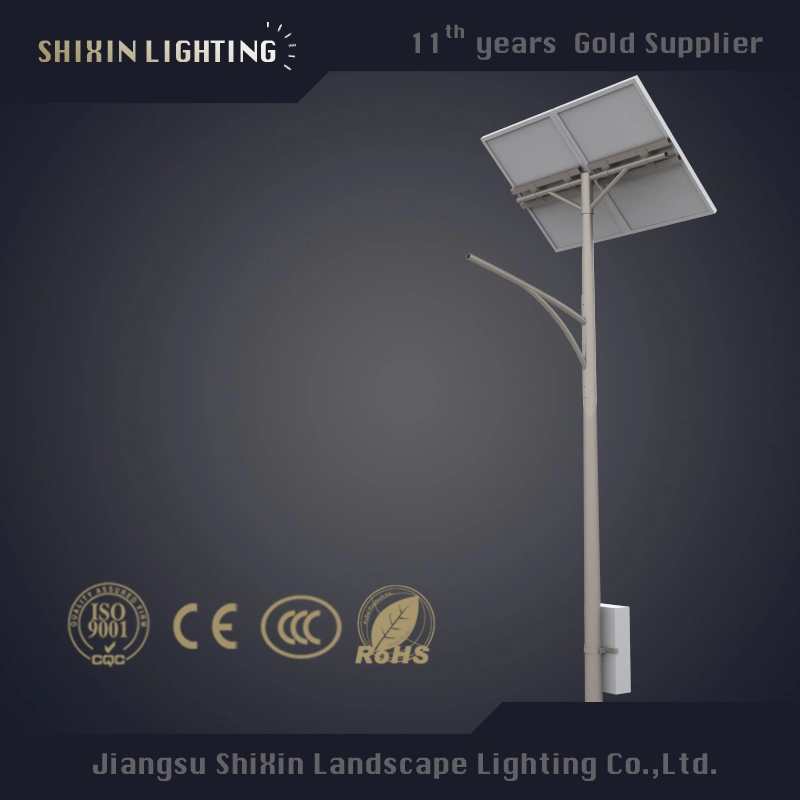

Features

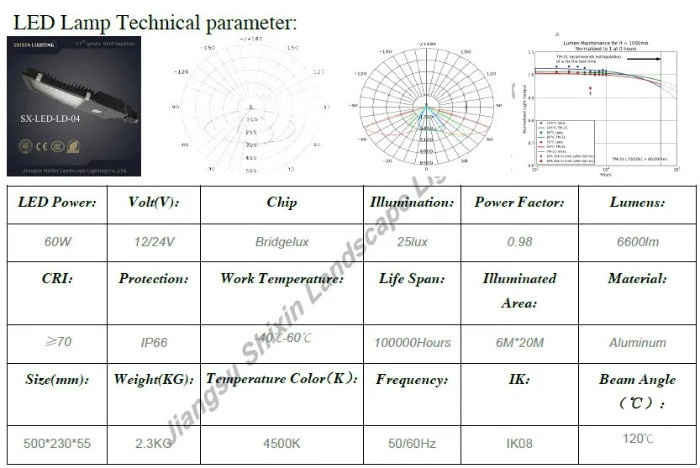

lighting source:LED
Solar panel:Monocrystalline or polycrystalline,10years life time
Storage battery:high efficiency colloid battery,free maintenance
Service life:5years
Controller:time control and light control,preventing from overcharge and overdischarge,having output short circuit protection.
Ambient temperature:-30~+60
Lighting time :subject to exact configuration power,normal over 8hours.

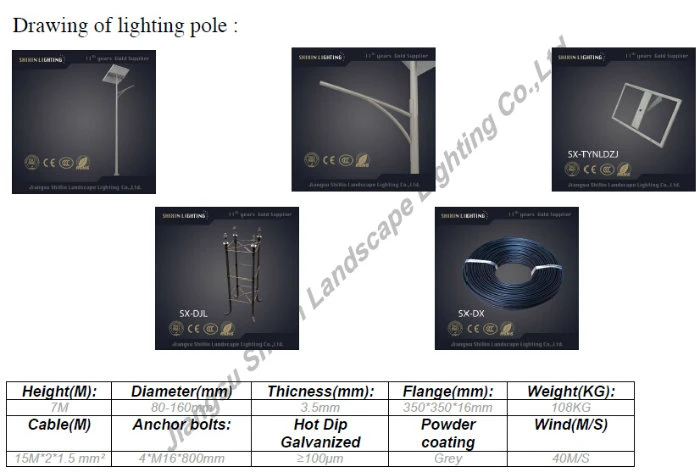

Height:5m-8m
Product Detail
Solar energy light brief introduction
1.Using the microcomputer intellective controller to transfer the light energy to electrical energy .Easy to install since no wiring & trenching,energy conservation and environmental protection
2.The microcomputer intellective controller is composed by advanced special-purpose integrated circuit,high conversion efficiency,prevent over-load &over-discharge,Output short circuit protection,extend work life, on the safe side,convenient usage.
3.High effective Non-maintaining accumulator cell,strong storage,durable usage.
4.Automatic track type time controller,Automatically adjust the working time along with different illumination time in various seasons.For extending the work time energy conservation intellective controller will automatic shut-off the light at Deep-night.
FAQ
1:How many cycles full charge&discharge about your battery?
In 50% discharging deepness, it can be cycled for 1,200 times; in floating charging and discharging status, it can be cycled for 5000~6000 times.
2.How to Choose the System Voltage 12V or 24V or for normal street Light ?
We can design the System for 12v or 24v for solar street Light or 220-380V for normal street light .
3.What's the main difference between mono and polycrystalline solar panel?
production process and cost. Polysilicon technology is more mature since it is an early technology compared with Monosilicon.
4.The controller of your solar street light has dual time control function?
our solar charge controller is designed with dual time control function, you can set up the lighting time and divide it into two parts, like 12 hours (6 hours full power lighting + 6 hours half power lighting)
Welcome to contact us a.s.a.p.
lighting source:LED
Solar panel:Monocrystalline or polycrystalline,10years life time
Storage battery:high efficiency colloid battery,free maintenance
Service life:5years
Controller:time control and light control,preventing from overcharge and overdischarge,having output short circuit protection.
Ambient temperature:-30~+60
Lighting time :subject to exact configuration power,normal over 8hours.
Height:5m-8m
Product Detail

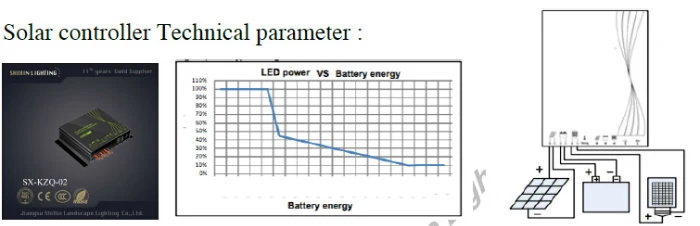

| System Voltage(V) | Output current | No-load loss | The Max charging current | Overvoltage protection | Float charging voltage |
| 12/24V Auto | 330mA-2310mA | <55V | 10A | 17.0V;2/24V | 13.8V;*2/24V(25ºC) |
| Ascending charging voltage | Equal charging voltage | Light-control voltage | Return voltage for over-discharging | Over-discharging voltage | Temperature compensation |
| 14.4V;*2/24V(25ºC); duration:2h | 14.6V*2/24V(25ºC) duration:1h | Light-control open 5V;light-control close 6V | 12.5V;*2/24V | 11.1V;*2/24V | -4.0mv/ºC/2V |
| Return voltage during chgaring | Efficiency of constant current | Current accuracy | Light-control judgment | The Max output voltage | Working Temperature |
| 13.2V;*2/24V(25ºC) | 90%-96% | +/-2% | 10min | <70V | -40ºC to +70ºC |
| Protection Level | Weight | Dimensions | |||
| IP68 | 160g | 82*58*20(mm)(L*W*H) |

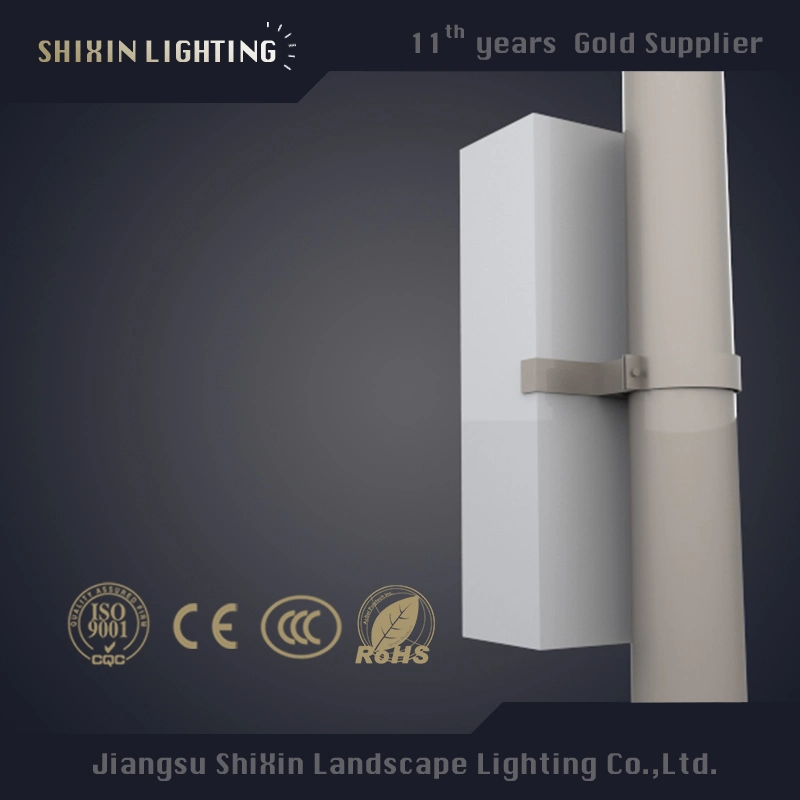

| Nominal Voltage | 12V*2 | |
| Capacity(20HR,25ºC) | 100Ah | |
| Designed Life | 5years | |
| dimension | Length | 330mm |
| Width | 170mm | |
| Height | 220mm | |
| Total Height | 26KG | |
| Reference Weight | 25.45kg | |
| Capicity 25ºC(77ºF) To 1.70V/Cell | 20hr rate | 96Ah |
| 10hr rate | 92Ah | |
| 5hr rate | 82Ah | |
| 1hr rate | 73Ah | |
| Inner Resistance (fully charged 25ºC) | 4mΩ | |
| Self-discharge(at 25ºC) | 3% of the capacity per month | |
| Discharge Temperature | -40ºC~+70ºC | |
| Charge Temperature | -30ºC~+70ºC | |
| Storage Temperature | -40ºC~+70ºC | |
| Cyclic use(at 25ºC) | 14.4~14.9V | |
| Initial current (at 25ºC) | 25A | |
| Temperature compensation | -30mV/ºC | |
| Float Use(at 25ºC) | 13.6~13.8 | |
| Temperature compensation(at 25ºC) | -20mV/ºC | |

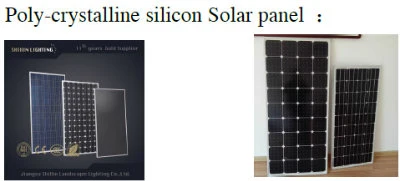

| Module | 120W | |
| Encapsulation | Glass/WVA/Cells/EVA/TPT | |
| Efficiency of solar cells | 17% | |
| Maximum power(PM) | W | 120 |
| Tolerance | ±3% | |
| Voltage at max power(VMP) | V | 18 |
| Current at max | A | 6.66 |
| power(IMP) | ||
| Open circuit voltage(VOC) | V | 22.6 |
| Short circuit current(ISC) | A | 6.98 |
| Diodes | 1by-pass | |
| Dimension | MM | 1210*670*30 |
| Weight | KG | 8.6 |
| Protection Class | IP65 | |
| Operate temp.scope | -40/+70 | |
| Relative humidity | 0 to 1005 | |
| Resistances | 227g stell ball fall down from 1m height and 60m/s wind | |
| Warranty | PM is hot less than 90% in 10years and 80% in 25 years | |
Solar energy light brief introduction
1.Using the microcomputer intellective controller to transfer the light energy to electrical energy .Easy to install since no wiring & trenching,energy conservation and environmental protection
2.The microcomputer intellective controller is composed by advanced special-purpose integrated circuit,high conversion efficiency,prevent over-load &over-discharge,Output short circuit protection,extend work life, on the safe side,convenient usage.
3.High effective Non-maintaining accumulator cell,strong storage,durable usage.
4.Automatic track type time controller,Automatically adjust the working time along with different illumination time in various seasons.For extending the work time energy conservation intellective controller will automatic shut-off the light at Deep-night.
FAQ
1:How many cycles full charge&discharge about your battery?
In 50% discharging deepness, it can be cycled for 1,200 times; in floating charging and discharging status, it can be cycled for 5000~6000 times.
2.How to Choose the System Voltage 12V or 24V or for normal street Light ?
We can design the System for 12v or 24v for solar street Light or 220-380V for normal street light .
3.What's the main difference between mono and polycrystalline solar panel?
production process and cost. Polysilicon technology is more mature since it is an early technology compared with Monosilicon.
4.The controller of your solar street light has dual time control function?
our solar charge controller is designed with dual time control function, you can set up the lighting time and divide it into two parts, like 12 hours (6 hours full power lighting + 6 hours half power lighting)
Welcome to contact us a.s.a.p.
