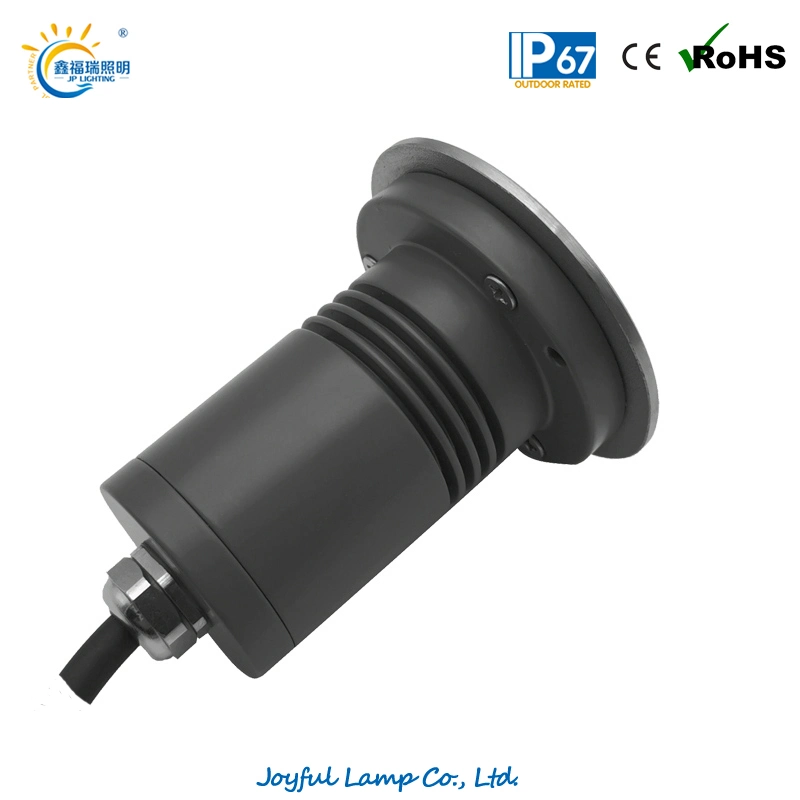

D67.5MM 1W 2W 3W 5W IP67 LED Inground Light Buried LED Up Light Outdoor LED Step Light Deck Light Landscape Underground Light With Stainless Steel Front Cover and Back Box
Feature and Benefits:Main Specification:
Housing: Outdoor dark grey powder coated aluminum T=60-80um Adhesion of ISO class 1/ASTM class 4B
Front Cover: 304# or 316# Stainless Steel
LED Source: 1x1W/1x2W/1x3W RGB 3in1/1x5w RGBW 4in1 LED
Lens: Optical lens, efficiency ≥85%
Glass: Tempered step glass T=8mm
Glass pressure capacity: Full area=780kgs
Gasket: Molding shaped silicone seal
Operating temperature: -20ºC to 40ºC
Power cable: H05RN-F 2x0.75mm2 L=0.5m (low voltage)
H05RN-F 3x0.75mm2 L=0.5m (Single color/high voltage)
H05RN-F 4x0.75mm2 L=0.5m (for RGB)
H05RN-F 5x0.50mm2 L=0.5m (for RGBW)
Mounting sleeve: ABS
Products Model:
Products Size (Unit: MM):
Products Picture
Products Installation:
Application:
Used for Step, Stair,Garden, Corridor, Pathway, Road and other outdoor lighting.
FAQ
Are you a manufacturer?
Yes, We are a professional manufacturer with 15 years experience.
What is your main product?
1.Outdoor LED wall light
2.LED garden spot/spike light
3.LED inground light
4.LED underwater light(fountain light, swimming poool light, underwater spot light)
5.LED wall washer light
What is the company sample system?
1.Sample charge should prepaid.
2.Sample can be customized,If the order QTY is more than 1000Pcs.
How we can pay for?
1.30% advanced payment. 70% balance payment.
2.We accept L/C, T/T, Western Union, and Paypal.
3.Our shipping terms is EXW, FOB, CIF
How about the delivery time?
1.About 5 work days for sample making
2.15-30 work day for mass products production time. It is up to the quantity
What information should I let you know when I want to make a inquiry?
1.Which body color do you want?
2.What kind of light color do you prefer?
3.How long did you need about light cable?
4.Which voltage ( low voltage or high voltage)?
5.What kind of beam angle did you need?
6.How many quantity do you need?
Why choose us?
1.One-stop services: Innovative design, professional product light effect. Excellent product quality, sincere service concept. For exterior lighting provides an integrated, one-stop integrated lighting solution!
2.Experience R&D, production and sales team: We have an mature and experienced team. Some members have more than 15 years of work experience in the field of lighting. JP Lighting factory covers an area of 2,000 square meters and the annual sales of more thank $10 million.
3.Strict quality control process: JP lights use the high quality components. All material must be strictly screened. All JP lights will undergo strict testing before shipping, including integrating sphere testing, aging test, waterproof test, etc. Due to rich experience and professionalism, JP Lighting's product defect rate is strictly controlled within 1%.
4.Products worldwide with high reputation: We participate in various industry lighting exhibitions, our products are all over Asia, Europe, Oceania, Africa and Central and South America, Middle East. All products have got great comments for high quality and excellent service.
Feature and Benefits:
1. IP67 waterproof for outdoor walk, path, parking lot, garden, square lighting use;
2. 12V/24VDC and 100-240VAC optional;
3. Rich Color for options: Single Color and RGB/RGBW Color;
4. 1W or 2W white,3w RGB 3in1, 5w RGBW 4in1 LED optional;
5. Optional PWM, 0/1-10V, DALI dimmable or DMX512 controllable support;
2. 12V/24VDC and 100-240VAC optional;
3. Rich Color for options: Single Color and RGB/RGBW Color;
4. 1W or 2W white,3w RGB 3in1, 5w RGBW 4in1 LED optional;
5. Optional PWM, 0/1-10V, DALI dimmable or DMX512 controllable support;
Housing: Outdoor dark grey powder coated aluminum T=60-80um Adhesion of ISO class 1/ASTM class 4B
Front Cover: 304# or 316# Stainless Steel
LED Source: 1x1W/1x2W/1x3W RGB 3in1/1x5w RGBW 4in1 LED
Lens: Optical lens, efficiency ≥85%
Glass: Tempered step glass T=8mm
Glass pressure capacity: Full area=780kgs
Gasket: Molding shaped silicone seal
Operating temperature: -20ºC to 40ºC
Power cable: H05RN-F 2x0.75mm2 L=0.5m (low voltage)
H05RN-F 3x0.75mm2 L=0.5m (Single color/high voltage)
H05RN-F 4x0.75mm2 L=0.5m (for RGB)
H05RN-F 5x0.50mm2 L=0.5m (for RGBW)
Mounting sleeve: ABS
Products Model:
| Item No. | Lighting Source | Lens beam angle (°) | Consumption(Watt) | Input Voltage(V) | IK rate |
| 84311(AS) | 1x1W LED | 15°/25°/30°/45°/60°/ 90° | 1.2 | DC12V/DC24V | 08 |
| 84311H(AS) | 1x1W LED | 15°/25°/30°/45°/60°/ 90° | 1.2 | AC100-240V | 08 |
| 84312(AS) | 1x2W LED | 15°/25°/30°/45°/60°/ 90° | 2.6 | DC12V/DC24V | 08 |
| 84312H(AS) | 1x2W LED | 15°/25°/30°/45°/60°/ 90° | 2.6 | AC100-240V | 08 |
| 84316(AS) | 1x3W RGB 3in1 LED | 15°/25°/30°/45°/60°/ 90° | 3.1 | DC12V/DC24V | 08 |
| 84319(AS) | 1x5W RGBW 4in1 LED | 15°/25°/30°/45°/60°/ 90° | 5.0 | DC12V/DC24V | 08 |
Products PictureProducts Installation:
Application:
Used for Step, Stair,Garden, Corridor, Pathway, Road and other outdoor lighting.
FAQAre you a manufacturer?
Yes, We are a professional manufacturer with 15 years experience.
What is your main product?
1.Outdoor LED wall light
2.LED garden spot/spike light
3.LED inground light
4.LED underwater light(fountain light, swimming poool light, underwater spot light)
5.LED wall washer light
What is the company sample system?
1.Sample charge should prepaid.
2.Sample can be customized,If the order QTY is more than 1000Pcs.
How we can pay for?
1.30% advanced payment. 70% balance payment.
2.We accept L/C, T/T, Western Union, and Paypal.
3.Our shipping terms is EXW, FOB, CIF
How about the delivery time?
1.About 5 work days for sample making
2.15-30 work day for mass products production time. It is up to the quantity
What information should I let you know when I want to make a inquiry?
1.Which body color do you want?
2.What kind of light color do you prefer?
3.How long did you need about light cable?
4.Which voltage ( low voltage or high voltage)?
5.What kind of beam angle did you need?
6.How many quantity do you need?
Why choose us?
1.One-stop services: Innovative design, professional product light effect. Excellent product quality, sincere service concept. For exterior lighting provides an integrated, one-stop integrated lighting solution!
2.Experience R&D, production and sales team: We have an mature and experienced team. Some members have more than 15 years of work experience in the field of lighting. JP Lighting factory covers an area of 2,000 square meters and the annual sales of more thank $10 million.
3.Strict quality control process: JP lights use the high quality components. All material must be strictly screened. All JP lights will undergo strict testing before shipping, including integrating sphere testing, aging test, waterproof test, etc. Due to rich experience and professionalism, JP Lighting's product defect rate is strictly controlled within 1%.
4.Products worldwide with high reputation: We participate in various industry lighting exhibitions, our products are all over Asia, Europe, Oceania, Africa and Central and South America, Middle East. All products have got great comments for high quality and excellent service.
