High quality 80W all- in one solar street light
Product Advantage:

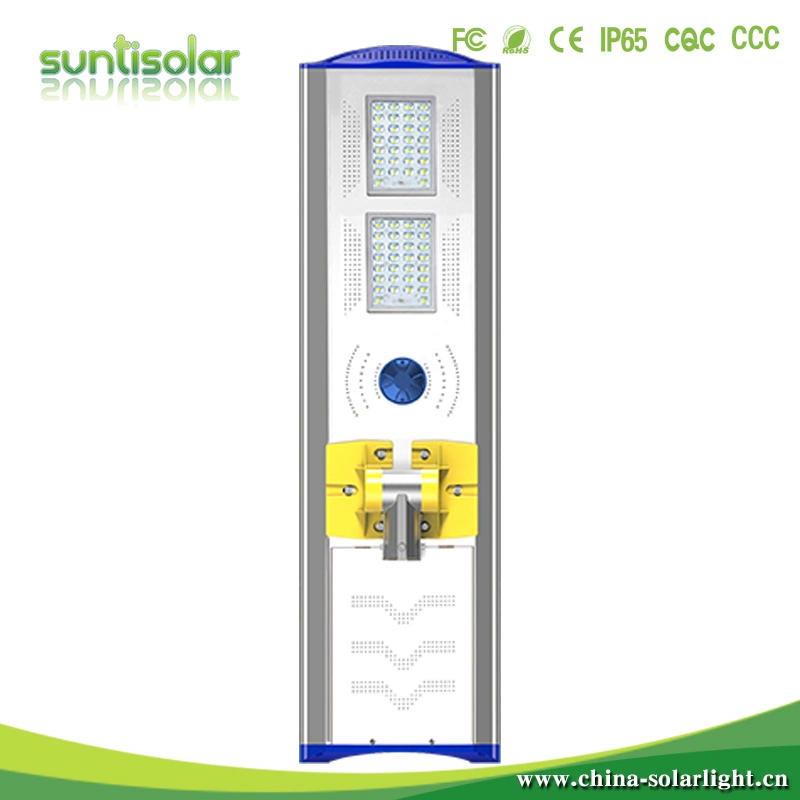

1.Imported highly efficient LED Chip with luminous efficiency 170-180lm/w works with long life. LED Module angle is adjustable -15°~+15° with low dazzle, IP67. The adjustable angle guarantees best illumination effect

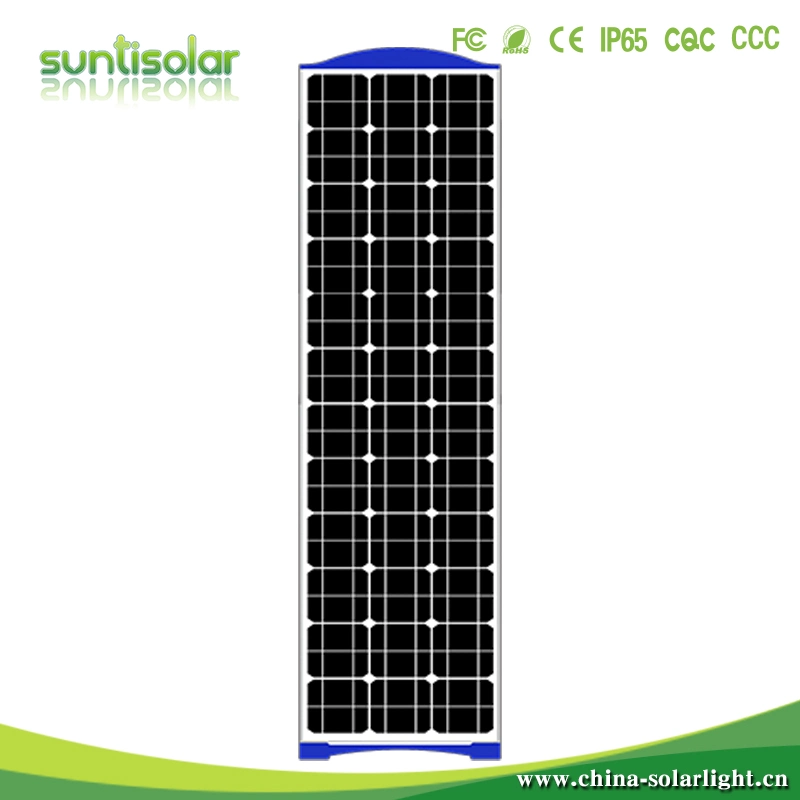

2.Highly efficient monocrystalline silicon solar panel with imported silicon wafer is adopted, 18% exchange rate and over 20 years working life.
3.The charging and discharging efficiency of controller with built-in replaceable constant current module is up to 98%. Light on-off is automatic by light control, time control and internet control is also available. Protection Level is IP67.
4.Static free spraying is adopted on surface treatment, which is better on adhesive force, corrosion resistance and aging resistant than painting. The spraying technology guarantees surface of products stable more than 10 years.

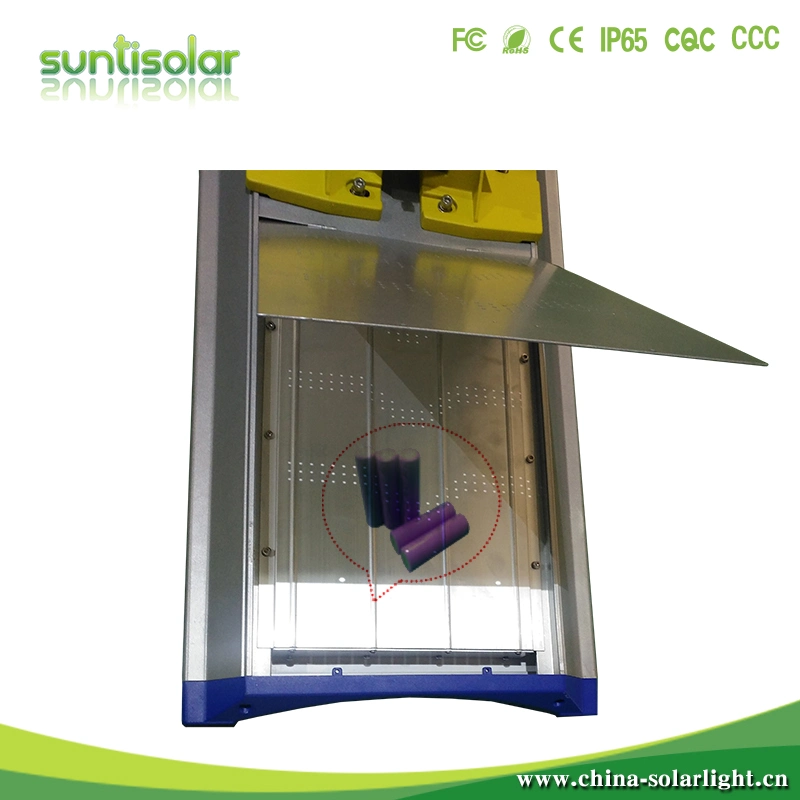

5.Battery module is replaceable, built-in automobile power lithium ion battery module is connected in series and multiple circuit by several consistent Grade A lithium battery cells. Over charging and discharging is protected by circuit board, plus protection box with IP65 level, the working life of battery is over 8 years.
6.Installing base angle is adjustable from 0 to 90 degrees. It uses Japanese ADC12 aluminum, also known as No.12 Aluminum, Al-Si-Cu series aluminum alloy, which is a kind of pressure die casting aluminum alloy, oxidative resistant even exposed to air long term, good performance of corrosion and impact resistance, it is the ideal load bearing part for luminaries.
Product Detailes
| 1.3Technical Parameters | |
| Model: | XT1655SELD80-J |
| LED Quantity: | 144 (3255) |
| Module Quantity (pcs): | 2 |
| Power: | 80W |
| Solar Panel: | Monocrystalline Silicon 36V/100W |
| Battery: | Grade A Lithium Ion Battery 22.5Ah/24V |
| Adjustable Angle of Module(±15°): | Yes |
| Contrtol Mode: | Light Control+Time Control |
| Working time under full power: | 12h |
| Working time under half power: | 36h |
| Charging time(1000W/m2) | 6h |
| On-off threshold level: | on<=8LUX,OFF>=10LUX |
| Secondary lighting distribution: | Borosilicate |
| Beam Angle: | C0~180 160°/ T90~270 80° |
| Protection Grade: | IP65 |
| Photoelectric Parameter: | |
| Color Temperature(K): | 3000-6500K |
| CRI(Ra): | 70 |
| Lumens(lm): | 9000-10000lm |
| Intelligent Mode: | Yes |
| Working under rainy days: | 365 Days |
| Package: | |
| Net Weight((kg): | 24.3kg |
| Gross Weight (kg): | 51.4g(2pcs/box) |
| Product Dimension (mm): | 1655×428×62mm±5% |
| Package Dimension(mm): | 1705×227×495mm±5% |
| Quantity in 40 Feet Container: | 700PCS(No Pallet) |
| Environmental Temperature: | |
| Discharging Temperature (ºC): | -20~60 |
| Charging Temperature (ºC): | -20~60 |
| Storage Temperature (ºC): | 0~45 |
| Installing Parameter: | |
| Diameter of Pole: | Ø89mm |
| Screw Fixation: | Yes |
| Wind resistance level(km/h): | 209 |
| Installation Height (m): | 9-10 |
| Installation Distance(m): | 36-40 |
| Irradiation Area(m2): | 400 |
Product Advantage:
1.Imported highly efficient LED Chip with luminous efficiency 170-180lm/w works with long life. LED Module angle is adjustable -15°~+15° with low dazzle, IP67. The adjustable angle guarantees best illumination effect
2.Highly efficient monocrystalline silicon solar panel with imported silicon wafer is adopted, 18% exchange rate and over 20 years working life.
3.The charging and discharging efficiency of controller with built-in replaceable constant current module is up to 98%. Light on-off is automatic by light control, time control and internet control is also available. Protection Level is IP67.
4.Static free spraying is adopted on surface treatment, which is better on adhesive force, corrosion resistance and aging resistant than painting. The spraying technology guarantees surface of products stable more than 10 years.
5.Battery module is replaceable, built-in automobile power lithium ion battery module is connected in series and multiple circuit by several consistent Grade A lithium battery cells. Over charging and discharging is protected by circuit board, plus protection box with IP65 level, the working life of battery is over 8 years.
6.Installing base angle is adjustable from 0 to 90 degrees. It uses Japanese ADC12 aluminum, also known as No.12 Aluminum, Al-Si-Cu series aluminum alloy, which is a kind of pressure die casting aluminum alloy, oxidative resistant even exposed to air long term, good performance of corrosion and impact resistance, it is the ideal load bearing part for luminaries.
FAQ:
Q1:How to make a reasonable solar street light design?
Q1:How to make a reasonable solar street light design?
- What's your wanted LED POWER ?(We can do the LED From 9W to 120W single or double design)
- What's the Height of the Pole ?
- How about the Lighting time ,11-12hrs/day will be ok ?
If you have above idea,pls let us know,we will offer you based on local solar and weather condition.
Q2: Sample is available?
Yes, we welcome sample order to test and check quality firstly.,and we will return your sample cost in your formal order.
Q3: How do you ship the goods and how long does it take to arrive?
Airline and sea shipping also optional. Shipping time depends on distance.
Q4: Is it OK to print my logo on led light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you offer guarantee for the products?
Yes, we offer 3-5 years warranty to our products,and we will do "Warranty Statement" for you after confirmed the order .
Q6: How to deal with the faulty?
1), Our products are produced in strict quality control system,but in case any damage in shiping,we will provide you more free 1% as spare parts.
2), during the guarantee period, we will provide maintance free and replacement service.
Q2: Sample is available?
Yes, we welcome sample order to test and check quality firstly.,and we will return your sample cost in your formal order.
Q3: How do you ship the goods and how long does it take to arrive?
Airline and sea shipping also optional. Shipping time depends on distance.
Q4: Is it OK to print my logo on led light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you offer guarantee for the products?
Yes, we offer 3-5 years warranty to our products,and we will do "Warranty Statement" for you after confirmed the order .
Q6: How to deal with the faulty?
1), Our products are produced in strict quality control system,but in case any damage in shiping,we will provide you more free 1% as spare parts.
2), during the guarantee period, we will provide maintance free and replacement service.
