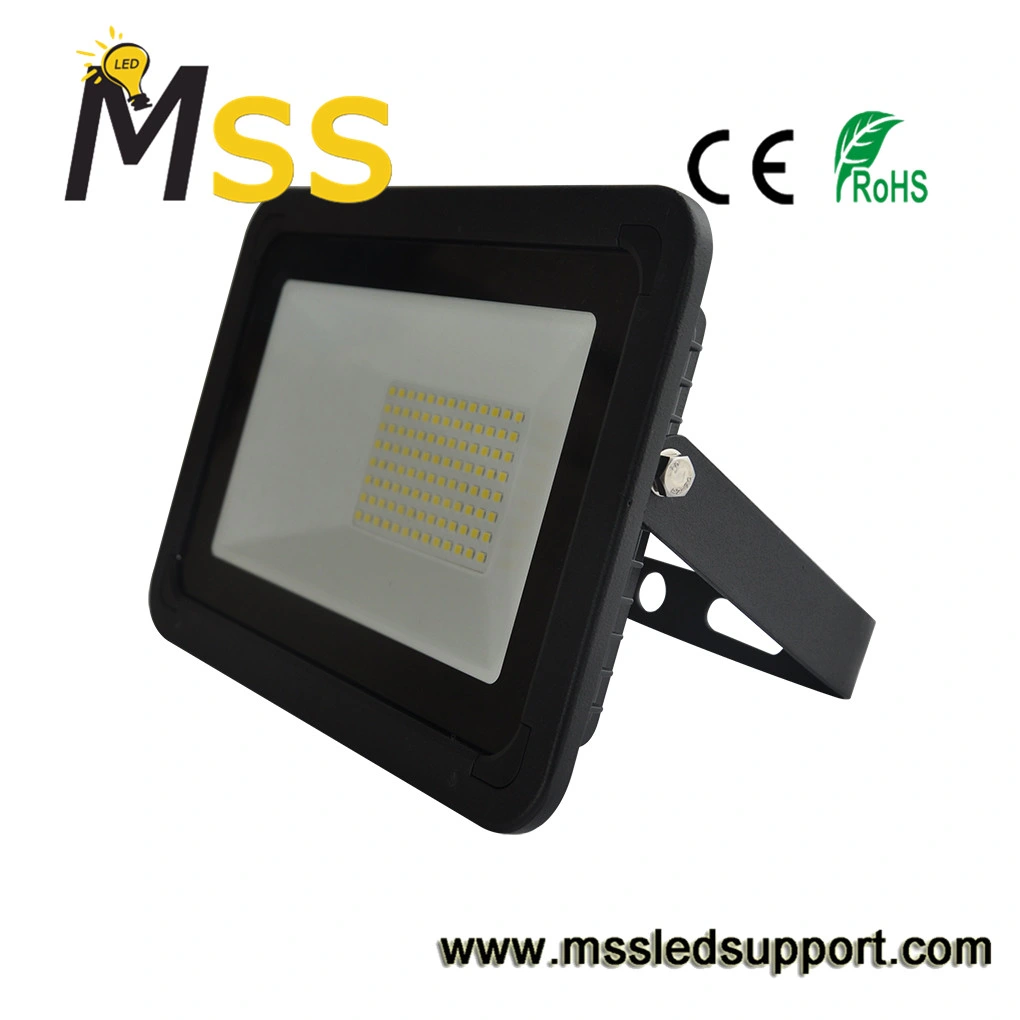

50W/100W Led Lighting 50w Architectural Lighting Fixtures
Features :
- High light efficiency imported LED chip,the luminous flux over 90LM/W.
- Aluminium body can help to dissipate heat perfectly,3.5 mm chilled glass can resist heavy impact.
- Long lifetime, can reach 30,000 hours.
- It could save 70% energy then the traditional light.
- Eco-friendly, no heavy metal and harmful gas.
- It has good weatherability, waterproof level is IP65 and the insulation class .
Technical Parameters :
Part No. | MSS-FL10W-SL3 | MSS-FL20W-SL3 | MSS-FL30W-SL3 | MSS-FL50W-SL3 | MSS-FL100W-SL3 |
Power | 10W | 20W | 30W | 50W | 100W |
Voltage | AC200-240V | AC200-240V | AC200-240V | AC200-240V | AC200-240V |
PF | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
Lumens | 900LM | 1800LM | 2700LM | 4250LM | 8500LM |
CRI | 80 | 80 | 80 | 80 | 80 |
CCT | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
Luminous efficiency | 90lm/w | 90lm/w | 90lm/w | 90lm/w | 90lm/w |
LED Chip | SMD 2835 | SMD 2835 | SMD 2835 | SMD 2835 | SMD 2835 |
Housing color | Black,White,Gray | Black,White,Gray | Black,White,Gray | Black,White,Gray | Black,White,Gray |
Material | ADC12 | ADC12 | ADC12 | ADC12 | ADC12 |
Collision protection level | IK08 | IK08 | IK08 | IK08 | IK08 |
IP degree | IP65 | IP65 | IP65 | IP65 | IP65 |
Angle | 120° | 120° | 120° | 120° | 120° |

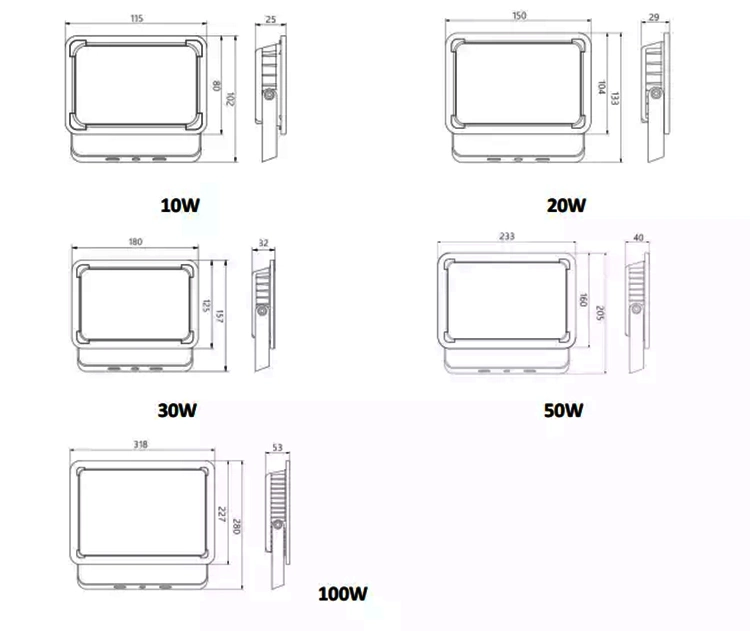

Dimension drawings :

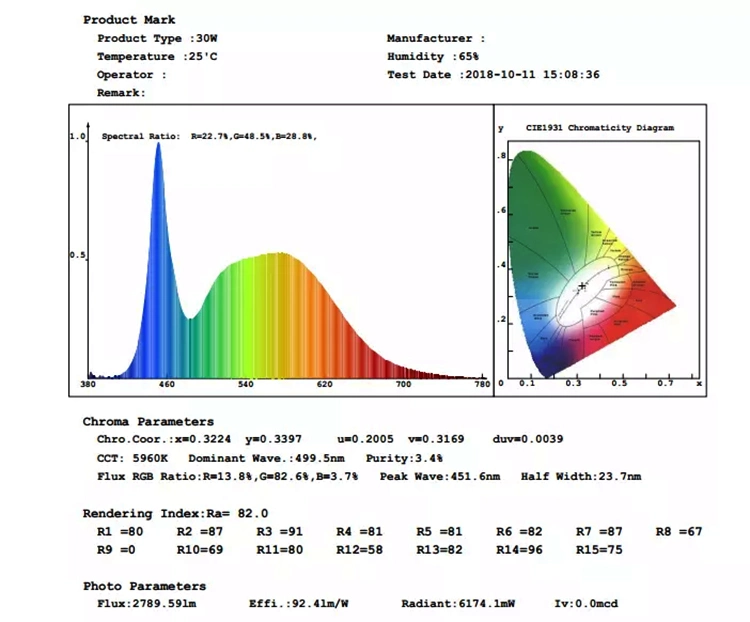

Test Report of 50W LED flood light :

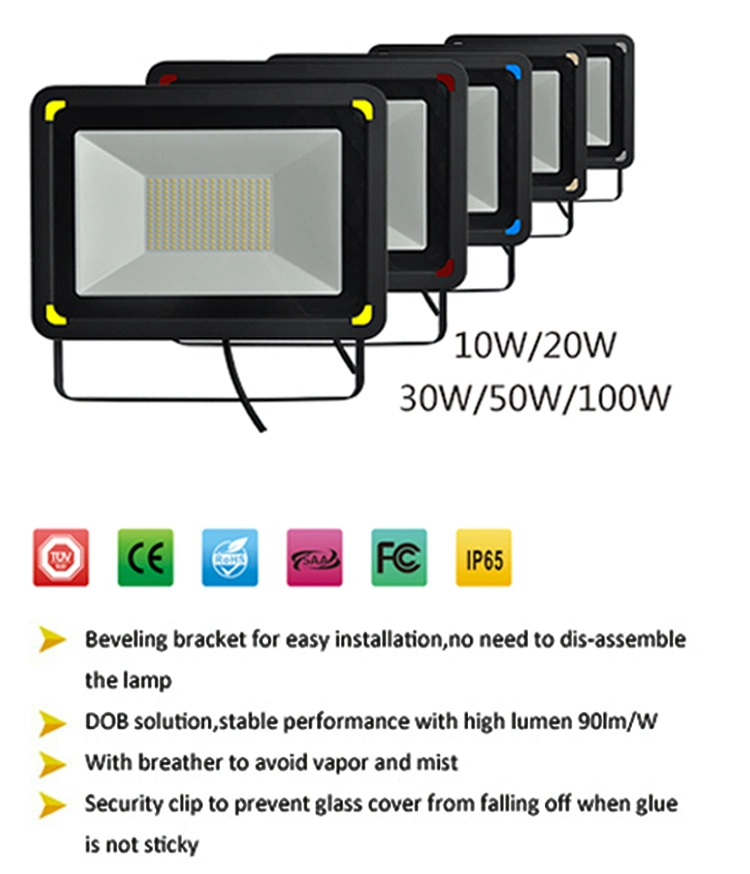

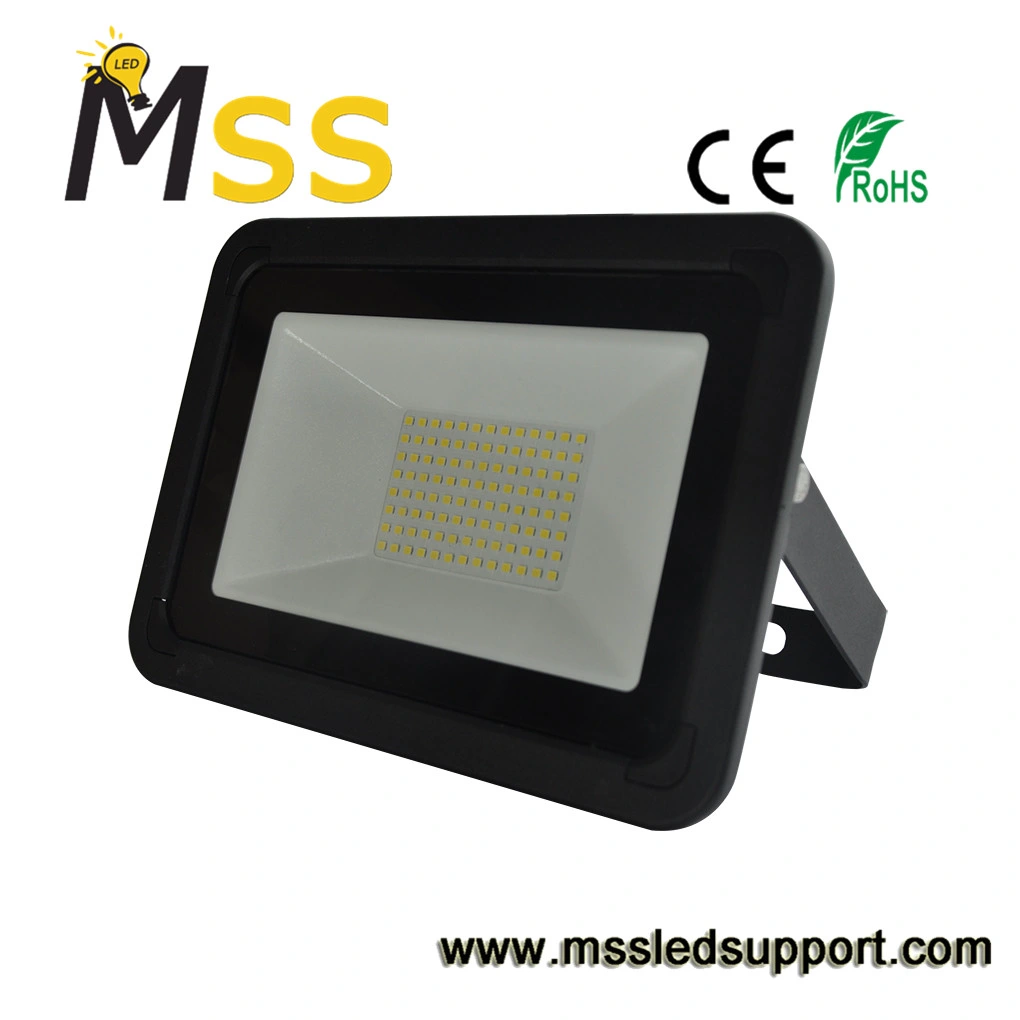

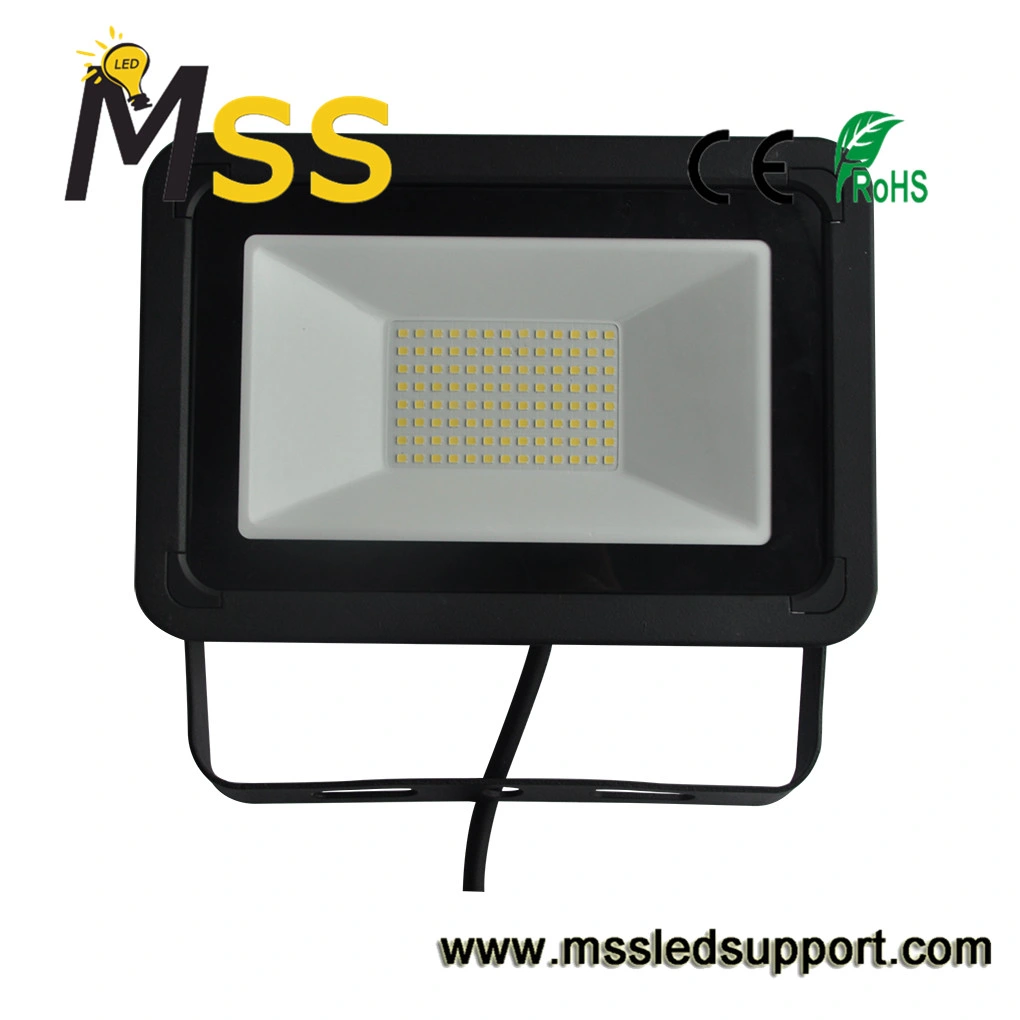

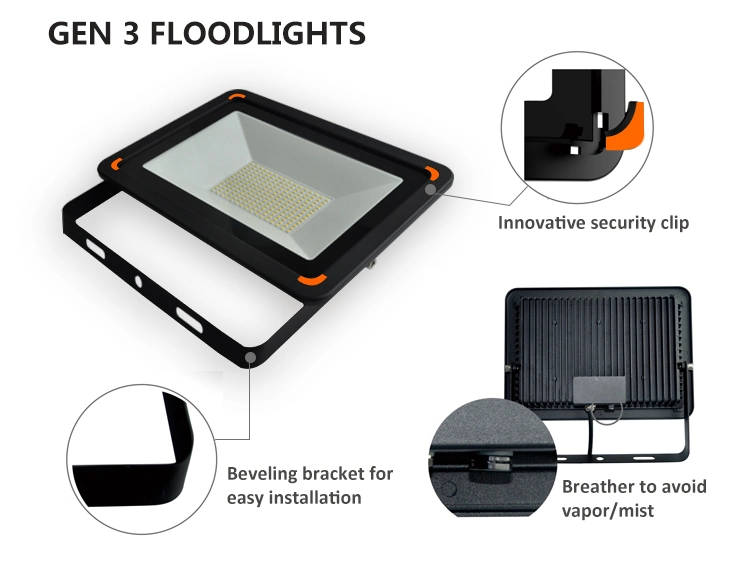

Details Show :

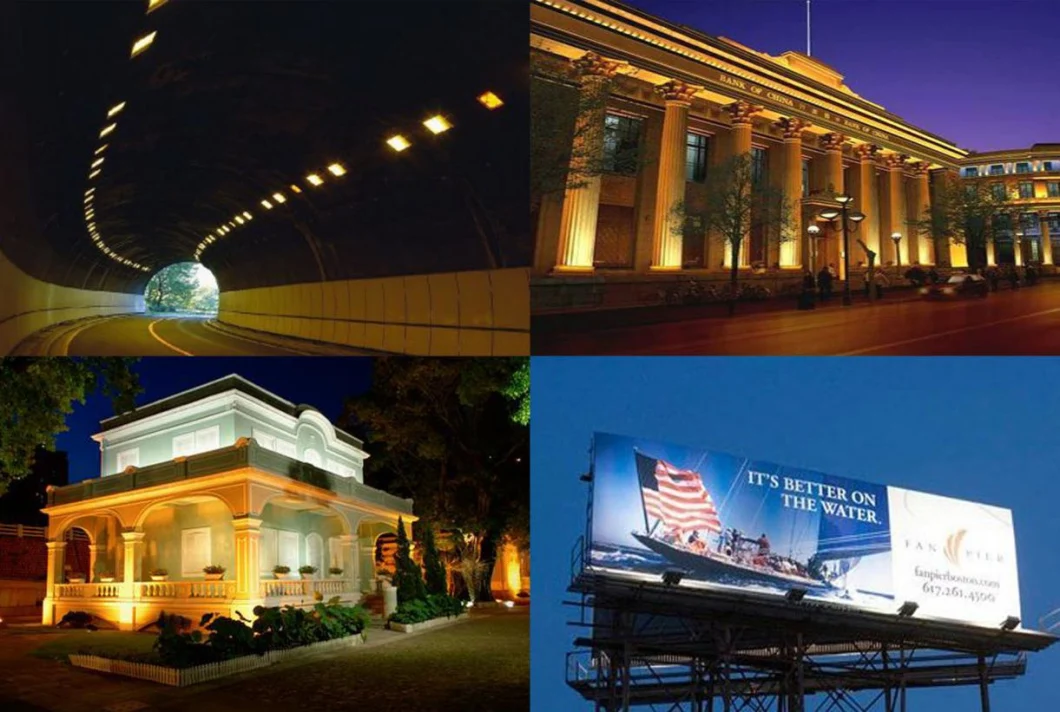

Product Application :
Can be used in workshop,factory,warehouse,mautstelle,gas station,supermarket,exhibition hall,gym and
other lighting place.
