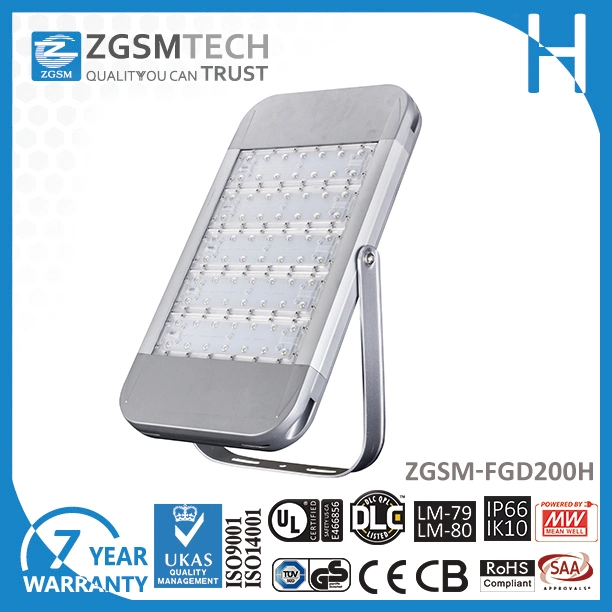

200W Exterior Ground Mounted LED Flood Lights with cUL Dlc

Overview
Revolucionary built-in driver design with extremely simple and clean appearance. The ZGSM® H-Series LED floodlights are using highly luminous-efficient LUMILEDS® LUXEON TX luminous source and highlyreliable HLG Series Mean Well® driver.Provide 7 years warranty on luminaire.

Product Advantage
1. LUXEON® TX luminous source with LM-80 report.

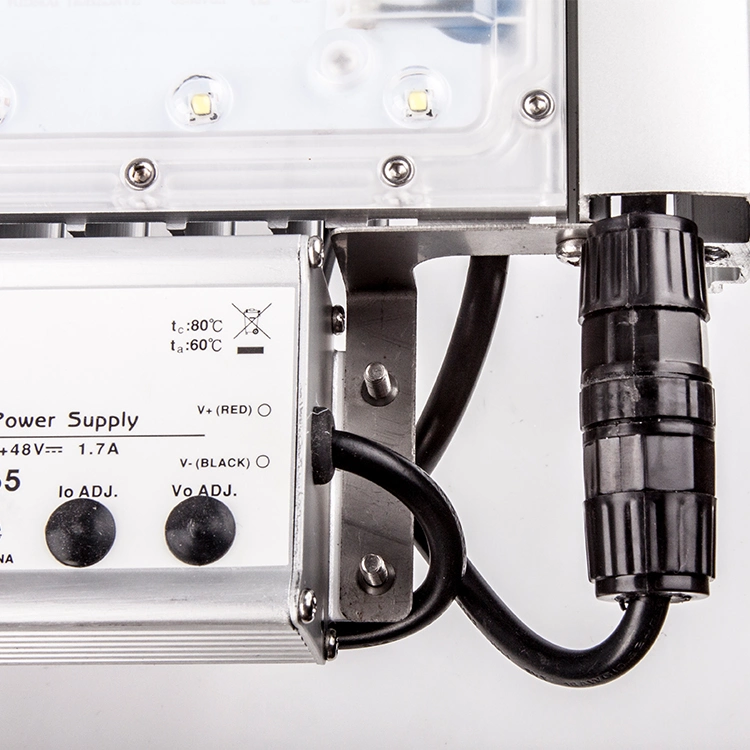

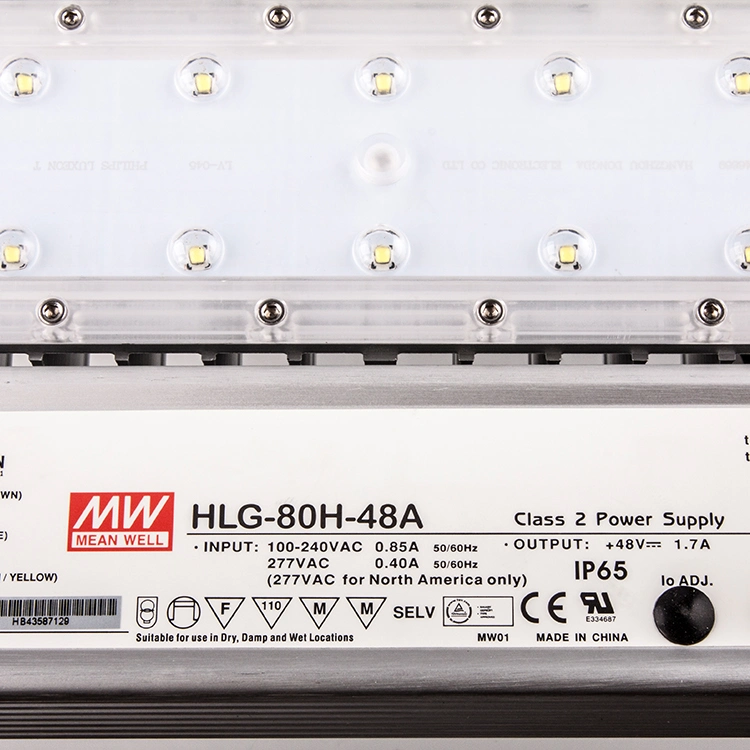

2. High Reliable MEANWELL® HLG driver with 7 Years Warranty.
3. Over then 100, 000 hours operation life.
4. Available for 60°, 90° and 110° beam angle.
5. IK10&IP66.

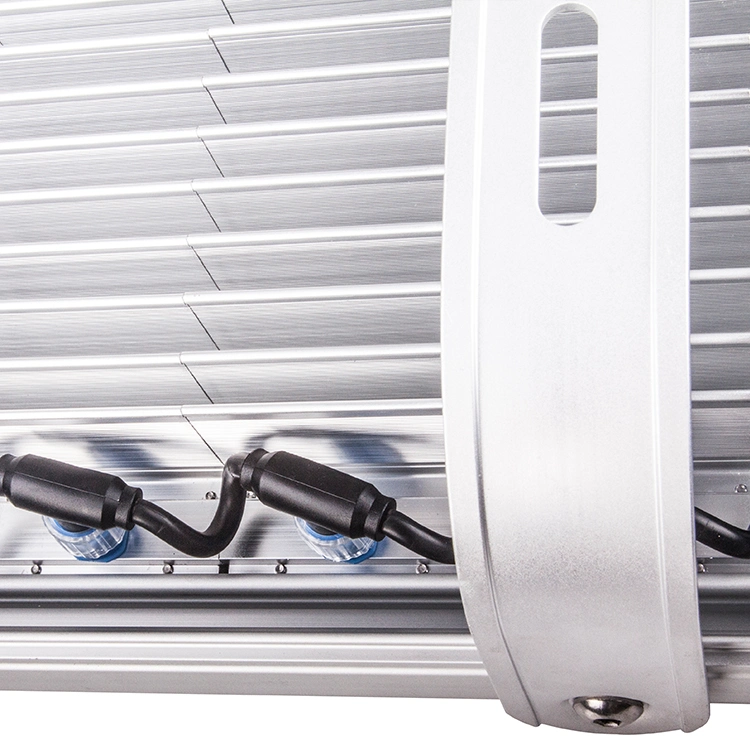

6. Adjustable mounting bracket.
7. UL, DLC, RoHS, CE, GS, CB certificated.
8. Patent product with 5 patent certificates.
9. 7 years Warranty

Specification
Specifications
ModelZGSM-FGD200H
LED BrandLUXEON® TX/LG
Driver BrandMeanwell HLG series
Norminal Wattage200W
LED Module Quantity5 modules
Input Voltage100-240/277VAC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110lm/w
Lamp Rated Lumen output22000 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature4000 5000 or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25ºC
Storage Temperatures'-40ºC~+70ºC
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)
Body and Shell MaterialsAnodized Aluminum
IP RatingIP66 with test report
IK RatingIK10 with test report
CertificationCE,ROHS,GS,CB,UL,cUL,DLC,LM-79,SAA
Optional Function1-10V DC or PWM Signal or Resistance Dimming
Timer/Photocell Control
Warranty7 years

Packing Details
Fixture Dimension585 x340 x156 mm
Fixture Weight7.0 kg /15.4 lbs
Packing Dimension635 x365 x160 mm
Packing Weight8.1 kg /17.9 lbs

Our Services
1.Reply your inquiry in 24 working hours.
2.Customized design is available,OEM and ODM are welcomed.
3.Delivery the goods to our customer all over the word with speed and precision.
4.Offer customer the lowest price with high quality product
5.We can supply C/O (Certificate of Origin), saving approx 20% import duty.

200W Exterior Ground Mounted LED Flood Lights with cUL Dlc
200W Exterior Ground Mounted LED Flood Lights with cUL Dlc
200W Exterior Ground Mounted LED Flood Lights with cUL Dlc
200W Exterior Ground Mounted LED Flood Lights with cUL Dlc
200W Exterior Ground Mounted LED Flood Lights with cUL Dlc
